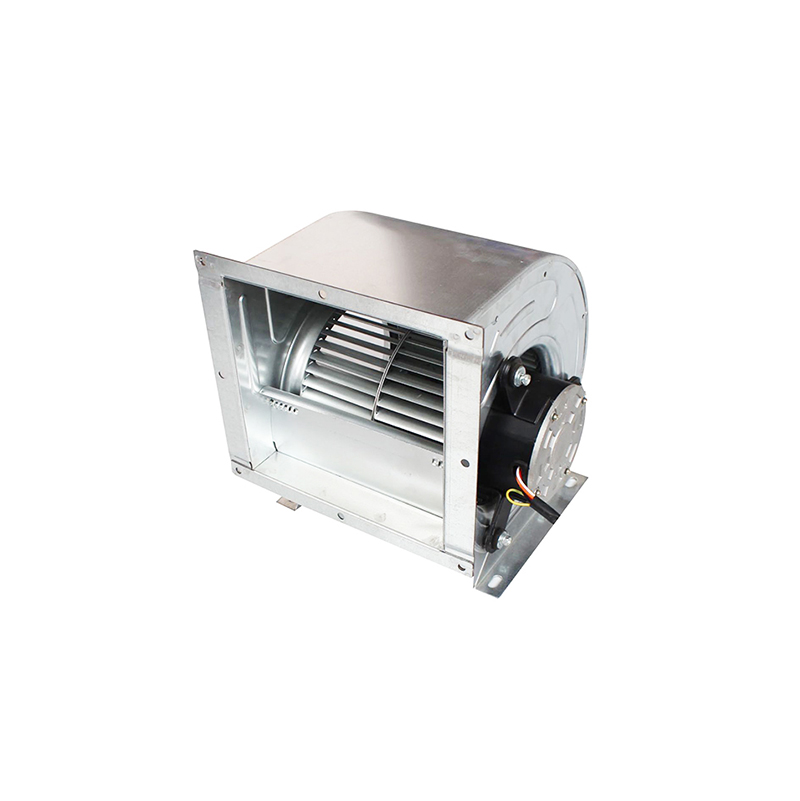

DD7/5 Centrifugal Blower Fan

Centrifugal Fan Blower Model: DD7/5
AC centrifugal fan blower motor phase: 1
Types of centrifugal blower: forword curved
Centrifugal blower motor power: 120W / 200W
Centrifugal blower design: low pressure centrifugal blower
Thermal Protection of centrifugal blower motor: Automatic
centrifugal blower partscentrifugal blower wheel / impeller, motor, scroll
  • DD7/5

  • CPMDJ

Availability:
Quantity:

Centrifugal Blower Description

Centrifugal blower is also known as centrifugal fan or squirrel cage fan. A centrifugal blower is a mechanical device used to move air or gas. Based on the centrifugal blower design, air or gas can move in a specific direction at a specific angle. Centrifugal blower accessories typically include a centrifugal blower motor, centrifugal fan wheel and centrifugal blower scroll casing. The centrifugal fan scroll housing is used to direct the air out in a specific direction. Our centrifugal blowers for duct applications move air from the rotating inlet to the outlet of the centrifugal blower. They draw air through a ductwork/heat exchanger, or push it through a similar impeller.


Centrifugal blower is developed and manufactured with internationally advanced. It was developed by using high technology and with low noise and compact structure, which was specially designed for the air-conditioning. The flow rate and total pressure range of centrifugal housing fan are from 800m³/h to 4000m³/h. Centrifugal air blower is the ideal subsidiary equipment for various heat exchanger, cabinet central air conditioning unit, changeable air conditioners, tube unit, VAV system, heating ,cleansing and other kind of ventilating system.


Direct Drive Centrifugal Blower Overview


1. Centrifugal Fan Blower Rotation Direction


The rotation direction of centrifugal blower fans can be divided into clockwise rotation (R) and counterclockwise rotation (L).

Clockwise rotation (R) of centrifugal inline blower: From the sleeve side, the centrifugal blower wheel rotation direction is the same as the clockwise direction of rotation.

Counterclockwise rotation (L) of industrial centrifugal blower: From the sleeve side, the centrifugal blower impeller rotation direction is opposite to the clockwise direction of rotation.


china wholesale centrifugal blower fan air blower design manufacturers suppliers factories


2. Centrifugal Air Blower Discharge Direction


Shown as below figure, centrifugal exhaust fan blower can be made in four air-outlet directions: 0°, 90°, 180°, and 270°.

china ac dc ec centrifugal blower fan air blower manufacturer supplier factory



Centrifugal Fan Design


CPZ series centrifugal blower consists of centrifugal blower steel housing, centrifugal blower fan wheel, base plate and centrifugal blower motor.


1.  Centrifugal Blower Housing Design


The centrifugal blower housing is made of hot galvanized steel sheet. The side plates include inlets cones that are designed with the best aerodynamics for inlet condition. The centrifugal blower housing is fixed to the side plates by spot welding. On the side of the centrifugal fan housing there are a series of holes drilled in advance for riveting nuts to carry out installation according to air outlet direction needed by the customer.


2. Centrifugal Blower Wheel


Forward curved centrifugal fan impeller is constructed of high-grade hot galvanized steel sheet with the advanced aerodynamics profile to achieve the highest efficiency and the lowest noise level. The centrifugal fan wheel is fixed on the center plate and on the end ring with riveting grip pres. The centrifugal blower wheel is constructed with maximum strength that endures the continuous operation with maximum power.


3. Centrifugal Fan Frame


Base plates of centrifugal blower fan are made of high-quality galvanized steel sheet, which can be assembled with the direction by the customer demand.


4. Centrifugal Blower Motor

Centrifugal blower motor can be single-phase AC motors of 220V/50HZ, 110V/60HZ with 3 speeds, to make an AC centrifugal blower fan OR EC motors with three speeds to make an EC centrifugal blower fan, which are flexible to change speed and easy to install. Speed can be changed by using provided silicon controlled voltage regulator and frequency converter.



Centrifugal Blower Specifications Sheet


TGZ-7-5-120W-6-200W centrifugal blower specifications sheet for low pressure forward curved centrifugal blower fan


Size of Centrifugal Blower Fan


TGZ-7-5-120W-6-200W what size centrifugal blower fan replacement manufacturer factory supplier



Centrifugal Fan Manufacturer



Centrifugal Blower Manufacturers & Factories & Suppliers



Centrifugal blower factory & manufacturer & supplier, Changzhou Changpeng Motor Co.,Ltd aims to produce centrifugal blower that can accommodate each of our customer's different needs. Aside from being a leading ac centrifugal air blower manufacturers & suppliers, we are also a ec centrifugal blower fan factories that are ideal for HVAC industries. We have pre-designed centrifugal blower fan, like DD7/5, DD7/7, DD8/7, DD8/8, DD8/9, DD9/7, DD9/9, DD10/8, DD10/10, DD12/9, DD12/12 that you can choose from but if you have special requirements for your blower centrifugal fan, we can customize centrifugal fan blower for you. We can design centrifugal blower fans to match your branding and help you boost your sales.


Technician and manufacturing experts will work with you to implement any centrifugal inline blower design ideas and needs you have and bring them to reality. We additionally offer centrifugal air blower samples for you to test and approve before we begin manufacturing your personalized direct drive centrifugal blower.


If you are seeking for dual centrifugal blower factorycentrifugal blower fan factories & manufacturers & suppliers, you have come to the right ac centrifugal blower, dc centrifugal blower, ec centrifugal blower website. OR, if you want to know centrifugal blower designcentrifugal blower dimensions, please just feel free to contact CPMDJ, for centrifugal blower fan quotes
