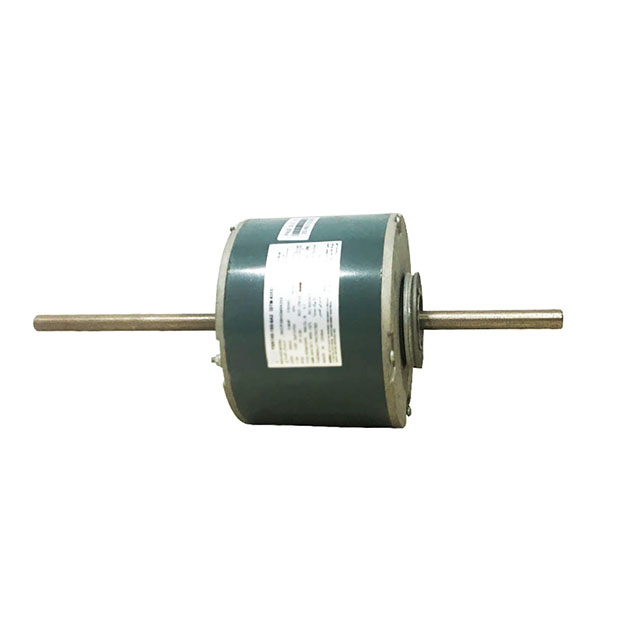

M3676 YSK140-185-6A2 DMT-635S China Middle East Market Air Conditioning Fan Motors

Thermal Protection: Automatic
air conditioner motor Phase: 1
OEM Direct Replacement Motor
air conditioner fan motor Dia: 140mm
Maximum Ambient Temperature: 70° C
Insulation Class of room air conditioner motor: B
Voltage of fan motors for air conditioners: 220-240V
Air Conditioner Motor Suppliers Model #:M3676 YSK140-185-6A2
Frequency of window air conditioner fan motor: 50Hz/ 60Hz
Permanent Split Capacitor (PSC) fan motor for room air conditioner

  • M3676 YSK140-185-6A2

  • CPMDJ

Availability:
Quantity:

Product Description

air conditioner motor factory suppliers & manufacturers china




CPMDJ blower motor for air conditioner are designed with LOW TEMPERATURE RISE and high quality raw material like silicon steel stator & rotor to preserve the smooth running of your air conditioner at all times. We have also invested in high speed punch for stator and rotor making to ensure we can offer you perfect quality new fan motor air conditioner and save manufacturing time for you as well.

We have been in the fan motor industry for near 2 decades and have a vast understanding of motor in air conditioning and other HVAC industries. You can count on us to deliver the right and stable quality air conditioner motor replacement in low cost for your needs.


Fan motors for air conditioners are the main components for air conditioner, central air conditioner, window air conditioner operation. The room air conditioner motor drives the fan blade of air conditioner. Fan motor for room air conditioner must be running well for the air conditioning unit to do its job. This is important for moving hot air to the outside of the building, as well as blowing cool air through the ductwork and into the rooms. Air conditioner fan motor, window air conditioner fan motor from air conditioner motor suppliers & manufacturers china, window air conditioner fan motor factory & supplier & manufacturers - Changzhou Changpeng Motor Co., Ltd are mainly asynchronous single-phase capacitor start air conditioner motors. There is an external capacitor connected in air conditioner fan motors with the START wiring.

Air Conditioner Motor Type


Model Voltage(V)

Frequency

(Hz)

Output

(W)

Speed

(RPM)

Model OEM Model
DTM-736 208-230 50/60 1/4 900 M3732
YSK140-250-6A 208-230 50/60 1/3 900 M3733
YSK140-185-6A2 208-230 50/60 1/2 900 M3734
YDK139-550-4 208-230 50/60 3/4 1050 M3735
YSK140-120-6 208-230 50/60 1/6 900 M3656
YSK140-185-6A2 208-230 50/60 1/4 900 M3676
YDK140-250-6 208-230 50/60 1/3 1050 M3686
YDK140-250-6 208-230 50/60 1/3 900 M3586
YDK140-350-4 208-230 50/60 1/2 900 M3588
YDK139-550-4 208-230 50/60 3/4 1050 M3590
YSK120-105-6A 220/230 50/60 1/7HP 825/3 CTM-1132 5KCP29TUE1195
YSK120-185-6 220/230 50/60 1/4HP 1125/3 CTM-1132 AC809-547-28
YSK140-120-6A2 220/230 50/60 1/6HP 1000/2 CTM-511 5KCP39DGM511T
YSK140-125-6A2 220/230 50/60 1/6HP 1000/3 CTM-511 5KCP39DGM635T
YSK140-120-6A5 220/230 50/60 1/6HP 1095/3 CTM-004 5KCP39DGM004T
YSK140-120-6A7 220/230 50/60 1/6HP 1050/3 CTM-5158 K55HXPKG-5158
YSK140-150-6A2 220/230 50/60 1/5HP 1075/3 CTM-672 5KCP39FGM672S
YSK140-150-6A3 220/230 50/60 1/5HP 1050/3 CTM-635C 5KCP39HGS635C
YSK140-150-6A4 220/230 50/60 1/5HP 1115/3 CTM-4440 5KCP39FGM4440
YSK140-150-6A15 220/230 50/60 1/5HP 1100/3 CTM-5966 K55HXLEK-5966
YSK140-180-6A 220/230 50/60 1/4HP 1075/3 CTM-736 5KCP29MGE736S
YSK140-185-6A3 220/230 50/60 1/4HP 1100/3 CTM-635S 5KCP39HGS635S
YSK140-245-6A2 220/230 50/60 1/3HP 1075/3 CTM-307 5KCP39HGM307AT
YSK140-245-4A 220/230 50/60 1/3HP 1335/3 CTM-A30 F48U02A30


Air Conditioner Unit Motor Structure


Air conditioner unit motor is not very complicated in construction. fan motor air conditioner from CPMDJ consist of a stator and contain a rotating rotor inside, which is surrounded by pole-pieces. All our central air conditioner motor, window air conditioner fan motor, portable air conditioner fan motor and fan motor replacement for air conditioner comply with the appropriate International Standards as far as: air conditioner motor output, air conditioner fan motor performance and air conditioner blower motor dimensions.


Air Conditioner Unit Motor Features


1. Single phase air conditioner condenser fan motor with steel housing, designed for cooling system, air conditioner unit etc., suit for hot weather environments.

2. High quality air conditioner blower motor with excellent insulation and heat transmission properties.

3. Nice appearance, high starting torque, low starting current, smooth turning, low temperature rise, low vibration, low noise and great overload performance.

4. Saving energy fan motor for air conditioner, higher efficiency air conditioner motor replacement.

5. Long life motor for air conditioner which quipped with overheating protection, good Protection against Humidity.

6. Blower motor for air conditioner models are with power of 25W, 30W, 45W, 60W, 80W,100W, 120W, 150W, 180W, 200W, 250W, 300W, 750W, 1100W & 1/5HP, 1/3HP, 1/2HP, 1/5HP, 3/4HP, 1HP.

7. Special blower motor air conditioner can be designed according to customer's requirement.

8. Our air conditioner compressor motor is wildly used in market of Saudi Arabia, UAE, Dubai, Bahrain, Iraq, Sudan, Iran, Kuwait, Jordan, Oman, Yemen, etc.


Air Conditioner Motor Suppliers & Manufacturers


Changpeng Motor - your experienced ac fan motor partner




Air conditioner motor make manufactured and serviced air conditioning unit appealing and inviting to consumers. CPMDJ offers indoor and outdoor air conditioner ac motors. All of our air conditioner fan motors have low temperature rise performance designs. Our window air conditioner fan motors are offered in varying models. You can order and store your air ocnditioning motors here with partial delivery as you want. Air conditioner motor type starts at 5 watt to 1100watt with speeds from 1 to 5, or as your request, and rpm from 500-1350 or as your need. You can choose the air conditioner condenser fan motor that best suits your needs and market. More so, our air conditioner blower motors have different shaft size to match yours. Their colors may vary from black, blue, green and so on.


Nevertheless, air conditioner manufacturers, air conditioner motor wholesalers, distributers, shop owner should be confident in using AC window air conditioner motors, indoor and outdoor air conditioner compresser motors from CPMDJ because they are made from pure copper or pure aluminum wiring and high-quality raw materials. Also, if you need ac fan motors not on the list, feel free to get in touch with CHANGZHOU CHANGPENG MOTOR CO., LTD. We can assist you in customizing air conditioner motor replacement.


Air Conditioner Motor Manufacturers


If you are seeking for air conditioner motor manufacturers & suppliers china, you have come to the right air conditioner fan motor website. OR, if you want to know air conditioner motor price, even window air conditioner fan motor wholesale price, please just feel free to contact CPMDJ, the air conditioner motor supplier china, window air conditioner fan motor factory & supplier & manufacturers. Refer to air conditioner motor type, our fan motors for air conditioners are asynchronous universal fan motors, on the other hand, is in a separate AC motor class because of the differences in design and operational characteristics. Changzhou Changpeng Motor Co., Ltd offers a robust catalog of ac fan motors made by our ac fan motor factory & manufacturers that can be tailored to your exact specifications of hvac fan motors. Except for universal fan motor for ac unit, window air conditioner fan motor from china manufacturers is also much popular in the market of Saudi Arabia, UAE, Dubai, Bahrain, Iraq, Sudan, Iran, Kuwait, Jordan, Oman, Yemen, etc.


CPMDJ CHANGZHOU CHANGPENG MOTOR CO.,LTD FAN MOTOR SUPPLIER FACTORY MANUFACTURERS SUPPLIERS -HVACFANMOTOR.COM

Air conditioner fan motor manufacturing processes


To offer such a wide range of air conditioner motor, central air conditioner motor, window air conditioner motor, CPMDJ expent huge manual work, skill and years of experience. Furthermore, Changzhou Changpeng Motor Co., Ltd has dipping equipment and drying kilns with shaft heights up to 800 mm, an in-house welding shop for flexible production of special components and custom welding designs, VPI dipping equipment and experienced specialists who truly understand their processes. This is how CPMDJ guarantee you the high quality, reliability and durability of room air conditioner motor.


1. STATOR CORE & ROTOR CORE


Stator core and rotor core for fan motor from air conditioner motor manufacturers are built up of thin punched laminations of Silicon Steel, its stator laminations and rotor laminations are made by high speed punch machine which is invested by our own, and this plays a vital role in quality of ac fan motor. Over 10 Million press strokes per day allows output of over 100 Tons finished stator / rotor core laminations each day.

stator-core-and-rotor-core-for-fan-motor for air cooler motor factory manufacturers suppliers
motor-manufacturing-processes coil winding for air cooler motor factory manufacturers suppliers

2. COIL WINDING


Professional in the air conditioner fan motor technology, team from window air conditioner fan motor manufacturers has extensive experience working with both copper and aluminium wire in various forms to provide coil winding solutions. Our broad customer base demands that we cannot only supply our standard range of air conditioner fan motor but also have the capability to provide custom solutions to solve challenges others can't. Contact your fan motor manufacturers now!

3. STATOR ASSEMBLY


Changpeng Motor Co., Ltd, china ac condenser cooling fan manufacturer, has specialized in air conditioner motor technology, stator assembling can be solved by our own professonal assembly technique. It meets the requirements of series production in ac fan motor, condenser fan motor, evaporator fan motor and other fan motor for ac unit. We develop and examine the entire process chain - from slot insulation to impregnating the stator and test.

motor-manufacturing-processes stator assembly for air cooler motor factory manufacturers suppliers
rotor-assembly-of-fan-motor from fan motor manufacturers suppliers factory

4. ROTOR ASSEMBLY


Rotor assembly is critical to fan motors for air conditioners in a variety of industries and applications, like condenser, air conditioner, evaporator etc. CPMDJ, china ac motor cooling fan manufacturer provides high quality silicon steel material to create professional and high quality rotor assembly for all AC fan motors. A rotor assembly of ac fan motor normally includes a cylindrically shaped shaft, a processed rotor iron core and a bearing.

5. FAN MOTOR SHAFT


Motor shaft is the main component in electric fan motor. The size of the shaft significantly affects the torque in fan motor. In addition to the need to mount the rotor and a variety of attachments, like bearing, the model of the motor shaft is based on the cooling concept selection of the electric device. CPMDJ, china ac motor manufacturer always offer you high quality shaft as air conditioner fan motor parts.

motor-shaft for air cooler motor factory manufacturers suppliers
fan motor test in fan motor manufacturer suppliers manufacturers - cpmdj

6. MOTOR ASSEMBLY & TESTING


Motor assembly includes assembling stator assembly, rotor assembly and end cover assembly with front cover. Testing of air condition motor from air conditioner motor suppliers china, Changpeng Motor, cover the whole areas from stator insulation test, electronic integrated test bench for winding inserting, motor integrated test bench, motor performance test, noise test and appearance detection through to dynamometer for high performance fan  motor testing.


Air conditioner motors meet the most demanding quality requirements


As a ac condenser fan motor factory & manufacturer, CPMDJ offers air cooler motors, air conditioner fan motors, indoor fan motors, outdoor fan motors, window AC fan motors, condenser fan motors, general purpose fan motors, fan coil motors, heat pump fan motors, resin Packing motors, EC fan motors, AC centrifugal fans and EC centrifugal fans. We quickly and reliably meet your custom requirements. You can always rely on the proven CPMDJ quality. High-quality technical production and processing plants, as well as the handling of qualified and experienced engineers and specialists ensure the highest standards of air cooler motors. To maintain quality standards, Changpeng Motor has introduced a quality management system.


Needless to say, our fan motor for room air conditioner meets the requirements of international standards and state-of-the-art technology. This is how we ensure global use and durability of ac fan motors.

Be Agency of Fan Motor Factory

Why be our agency of fan motor?


As a prominent and leading air conditioner motor suppliers & manufacturers china, Changpeng motor is willing to open worldwide market by agency. Be our agency, you can extend your business fast for your fan motors at the competitive price, stable qualtity and excellent after service. Contact your air conditioner fan motor factory to get air conditioner fan motor price now!


be agency of china fan motor manfuacturers factory suppliers- changpeng motor

Air Conditioner Motor Test & Applications

Routine testing and type tests for all AC fan motor

Process flow - routine, type, and system testing


The type test for asynchronous fan motors contains the following test steps:

  • Visual inspection

  • Resistance measurement of stator winding at ambient temperature

  • Insulation resistance measurement of stator winding and accessories

  • High-voltage check of stator winding

  • Rotational direction check

  • No-load check at partial voltage

  • Heating test under load

  • Measurement of load characteristic (25%, 50%, 75%, 100%, and 125% load)

  • Bearing heating check at no load and rated speed (only for friction-type bearing machines)

  • Check of fan motor accessories

  • Measurement of ripple voltage at rated voltage, rated frequency, and no-load speed

  • Creation of test report


In addition, the following optional tests are possible for asynchronous fan motors:


  • Measurement of no-load characteristic (recording of no-load current and no-load power at differing voltage)

  • Measurement of short circuit characteristic (recording of short circuit current and short circuit power at differing voltage)

  • Determination of polarization index of stator winding

  • Noise measurement (only at no load)

  • System/routine/type test of asynchronous fan motors



desert cooler fan motor test air cooler fan motor factory manufacturers suppliers


The routine test for asynchronous capacitor start fan motors contains the following test steps:

  • Visual inspection

  • Resistance measurement of stator winding at ambient temperature

  • Insulation resistance measurement of stator winding and accessories

  • High-voltage check of stator winding

  • Rotational direction check

  • No-load check at rated voltage

  • Short-circuit test at partial voltage

  • Check of fan motor accessories

  • Measurement of ripple voltage at rated voltage, rated frequency, and no-load speed

  • Creation of test report


In addition, the following optional tests are possible for asynchronous fan motors:


  • Measurement of no-load characteristic (recording of no-load current and no-load power at differing voltage)

  • Measurement of short circuit characteristic (recording of short circuit current and short circuit power at differing voltage)

  • Determination of polarization index of stator winding

  • Noise measurement (only at no load)

  • Type testing of asynchronous fan motors, with heat run


Air Conditioner Fan Motor Applications


CPMDJ offers you a complete line of HVAC motors, which is designed to operate in the harshest applications while reducing total cost of ownership. Our fan motors can be used in a variety of applications including air cooler fan motors, air conditioner fan motors, indoor fan motors, outdoor fan motors, window AC fan motors, condenser fan motors, general purpose fan motors, fan coil motors, heat pump fan motors , resin encapsulated motors and EC fan motors. We can also customize any fan motor version for specialized HVAC applications.


Air conditioner motor suppliers china - Changzhou Changpeng Motor Co., Ltd, is leading the fan motor factory & manufacturers whose motors can be applied in various kinds of air conditioners, commercial and residential.

window air conditioner fan motor wholesale price from china manufacturer

Service from Air Conditioiner Motor Supplier

Customized Air Conditioner Fan Motor Solutions


At Changzhou Changpeng Motor Co. Ltd, always you can find a person who will response to your questions about the best air conditioner blower motor solution for your application - quickly and competently. High-quality technical production and processing systems and the handling of qualified, experienced engineers and skilled workers guarantee you the highest motor standards. Additionally, all of our fan motor for air conditioner complies with current ISO standards.


24/7 After Service Availability

As a air conditioner fan motor factory & manufacturer & supplier for HVAC applications, Changpeng Motor Co., Ltd offers our customers further important plus points except focusing on fan motor quality. One of our focal points is the fast delivery of air conditioner motor replacement - including special designs. Not many air conditioner fan motor suppliers & manufacturers are able to claim that they can supply brand-new fan motors from their own ranges but also the OEM replacement motor of other brands within just a few days.

Flexible machining from our air conditioner fan motor manufacturer allows us to achieve exceptional response times. CPMDJ customers around the world appreciate our fast delivery service. Try us out! Team of experts from Changpeng Motor Co., Ltd will help you to find the right air conditioner motors for your HVAC application.


24-hour emergency hotline


CPMDJ provides a 24-hour hotline for our air conditioner fan motor customers. You can use it to reach us around the clock in the case of a pressing operational disruption. With CPMDJ, you can depend on an air conditioner fan motor factory & manufacturer & supplier who can supply fan motors for air conditioners with various voltages and outputs even outside normal working hours - all around the world.
