DD7/7 Direct Drive AC Centrifugal Fans, EC centrifugal blowers

Centrifugal Fan Blower Model: DD7/7
AC centrifugal fan blower motor phase: 1
Types of centrifugal blower: forword curved
Centrifugal blower motor power: 90W / 150W / 200W
Centrifugal blower design: low pressure centrifugal blower
Thermal Protection of centrifugal blower motor: Automatic
centrifugal blower partscentrifugal blower wheel / impeller, motor, scroll
  • DD7/7



Centrifugal Blower Description

Types of centrifugal blower from CPMDJ are DD7/5, DD7/7, DD8/7, DD8/8, DD8/9, DD9/7, DD9/9, DD10/8, DD10/10, DD12/9, DD12/12. And output power of our centrifugal blower motor ranges from 90 to 900 watts.  Centrifugal blower fan is based on a range of technologies which guarantee a high level of reliability. Furthermore, Centrifugal blower design is available for blower centrifugal fan of your customize requirments and needs. As ac, dc & ec centrifugal blower manufacturers & suppliers & factories, our centrifugal fan blower are of stable high quality and reasonable centrifugal blower price.

Centrifugal blower fans is developed and manufactured with internationally advanced. It was developed by using high technology and with low noise and compact structure, which was specially designed for the air-conditioning. The flow rate and total pressure range of centrifugal inline blower are from 800m⊃3;/h to 4000m⊃3;/h. Centrifugal air blower is the ideal subsidiary equipment for various heat exchanger, cabinet central air conditioning unit, changeable air conditioners, tube unit, VAV system, heating ,cleansing and other kind of ventilating system.

Centrifugal blower is also known as centrifugal fan or squirrel cage fan. A centrifugal blower is a mechanical device used to move air or gas. Based on the centrifugal blower design, air or gas can move in a specific direction at a specific angle. Centrifugal blower accessories typically include a centrifugal blower motor, centrifugal fan wheel and centrifugal blower scroll casing. The centrifugal fan scroll housing is used to direct the air out in a specific direction. Our centrifugal blowers for duct applications move air from the rotating inlet to the outlet of the centrifugal blower. They draw air through a ductwork/heat exchanger, or push it through a similar impeller.

Direct Drive Centrifugal Blower Overview

1. Centrifugal Fan Blower Rotation Direction

The rotation direction of centrifugal blower fans can be divided into clockwise rotation (R) and counterclockwise rotation (L).

Clockwise rotation (R) of centrifugal inline blower: From the sleeve side, the centrifugal blower wheel rotation direction is the same as the clockwise direction of rotation.

Counterclockwise rotation (L) of industrial centrifugal blower: From the sleeve side, the centrifugal blower impeller rotation direction is opposite to the clockwise direction of rotation.

china wholesale centrifugal blower fan air blower design manufacturers suppliers factories

2. Centrifugal Air Blower Discharge Direction

Shown as below figure, centrifugal exhaust fan blower can be made in four air-outlet directions: 0°, 90°, 180°, and 270°.

china ac dc ec centrifugal blower fan air blower manufacturer supplier factory

Centrifugal Fan Design

CPZ series centrifugal blower consists of centrifugal blower steel housing, centrifugal blower fan wheel, base plate and centrifugal blower motor.

1.  Centrifugal Blower Housing Design

The centrifugal blower housing is made of hot galvanized steel sheet. The side plates include inlets cones that are designed with the best aerodynamics for inlet condition. The centrifugal blower housing is fixed to the side plates by spot welding. On the side of the centrifugal fan housing there are a series of holes drilled in advance for riveting nuts to carry out installation according to air outlet direction needed by the customer.

2. Centrifugal Blower Wheel

Forward curved centrifugal fan impeller is constructed of high-grade hot galvanized steel sheet with the advanced aerodynamics profile to achieve the highest efficiency and the lowest noise level. The centrifugal fan wheel is fixed on the center plate and on the end ring with riveting grip pres. The centrifugal blower wheel is constructed with maximum strength that endures the continuous operation with maximum power.

3. Centrifugal Fan Frame

Base plates of centrifugal blower fan are made of high-quality galvanized steel sheet, which can be assembled with the direction by the customer demand.

4. Centrifugal Blower Motor

Centrifugal blower motor can be single-phase AC motors of 220V/50HZ, 110V/60HZ with 3 speeds, to make an AC centrifugal blower fan OR EC motors with three speeds to make an EC centrifugal blower fan, which are flexible to change speed and easy to install. Speed can be changed by using provided silicon controlled voltage regulator and frequency converter.

Centrifugal Blower Specifications Sheet

TGZ-7-7-150W direct drive centrifugal air blower factory manufacturer supplier

TGZ-7-7-90W-6-200W direct drive centrifugal air blower factories manufacturers suppliers

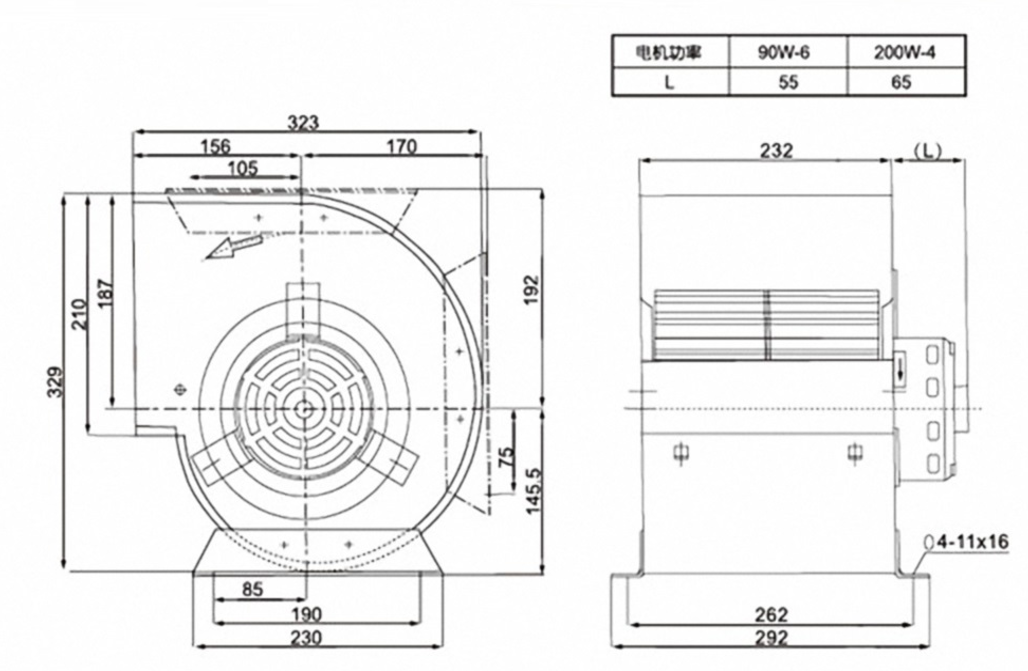

Size of Centrifugal Blower Fan

TGZ-7-7-150W dual centrifugal blower factory manufacturer supplierTGZ-7-7-90W-6-200W centrifugal fan blower manufacturers suppliers factories

Centrifugal Fan Manufacturer

Centrifugal Blower Manufacturers & Factories & Suppliers

Centrifugal blower factory & manufacturer & supplier, Changzhou Changpeng Motor Co.,Ltd aims to produce centrifugal blower that can accommodate each of our customer's different needs. Aside from being a leading ac centrifugal air blower manufacturers & suppliers, we are also a ec centrifugal blower fan factories that are ideal for HVAC industries. We have pre-designed centrifugal blower fan, like 7-5, 7-7, 8-7, 8-8, 8-9, 9-7, 9-9, 10-8, 10-10, 12-9, 12-12 that you can choose from but if you have special requirements for your blower centrifugal fan, we can customize centrifugal fan blower for you. We can design centrifugal blower fans to match your branding and help you boost your sales.

Technician and manufacturing experts will work with you to implement any centrifugal inline blower design ideas and needs you have and bring them to reality. We additionally offer centrifugal air blower samples for you to test and approve before we begin manufacturing your personalized direct drive centrifugal blower.

If you are seeking for dual centrifugal blower factorycentrifugal blower fan factories & manufacturers & suppliers, you have come to the right ac centrifugal blower, dc centrifugal blower, ec centrifugal blower website. OR, if you want to know centrifugal blower designcentrifugal blower dimensions, please just feel free to contact CPMDJ, for centrifugal blower quotes
