120
CPMDJ
| Quantity: | |
|---|---|

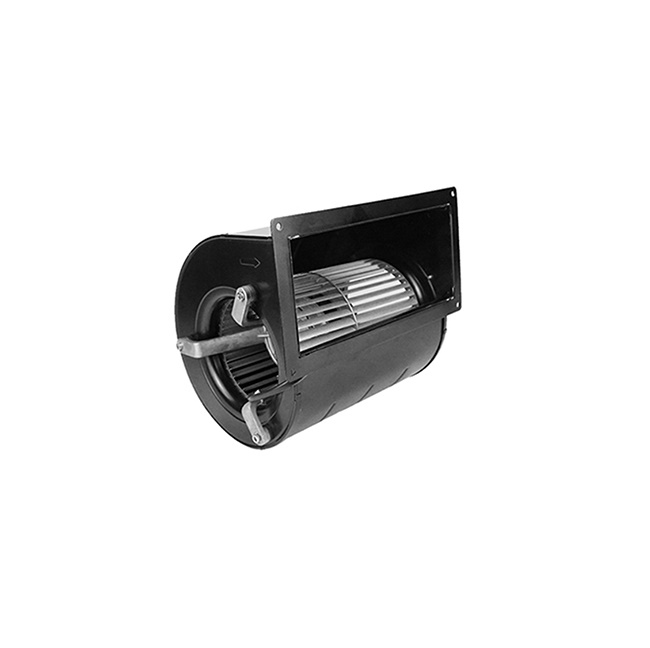

Centrifugal Blower Description
Centrifugal blower is also known as centrifugal fan or squirrel cage fan. A centrifugal blower is a mechanical device used to move air or gas. Based on the centrifugal blower design, air or gas can move in a specific direction at a specific angle. Centrifugal blower accessories typically include a centrifugal blower motor, centrifugal fan wheel and centrifugal blower scroll casing. The centrifugal fan scroll housing is used to direct the air out in a specific direction. Our centrifugal blowers for duct applications move air from the rotating inlet to the outlet of the centrifugal blower. They draw air through a ductwork/heat exchanger, or push it through a similar impeller.

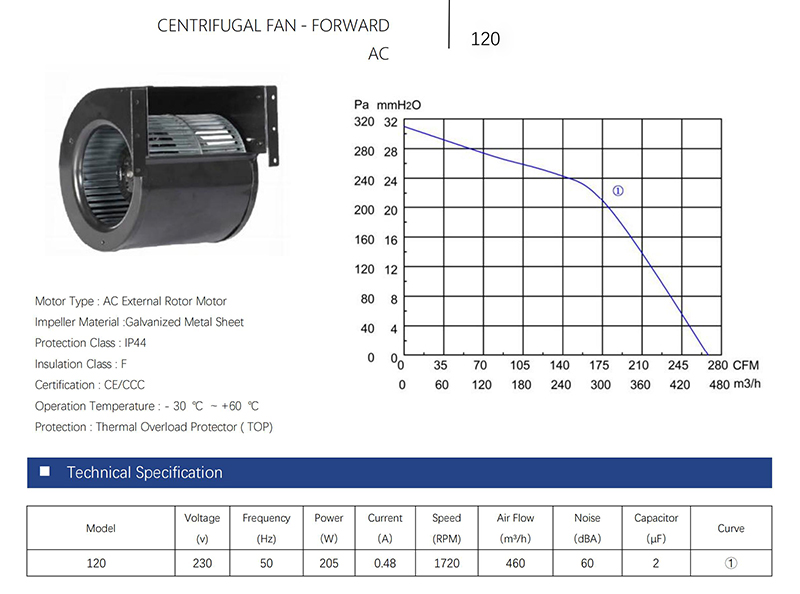

Norminal Sizes Ranges : | Forward centrifugal blower |
Norminal Voltage : | AC Motor - AC Input: 115v,220v,230v,380v,400v |
BLDC Motor - DC Input: 12v,24v,48v,310v | |
ECM Motor - AC Input: 210v,220v,230v,380V | |
Power Input Ranges: | 205W |
Air Flow Ranges : | 480m³/h |
Speed Ranges | 1720 RPM |
Protection Class : | IP44 |
Insulation Class : | B |
Min. amb. temperature : | -25℃ |
Max. amb. temperature : | +60 ℃ |
Speed control options | 1 speed , 2 speeds ,or 1-3 speeds adjustable |
Mainly Applications ： | · Electronic cabinet cooling |
Centrifugal blower fans is developed and manufactured with internationally advanced. It was developed by using high technology and with low noise and compact structure, which was specially designed for the air-conditioning. The flow rate and total pressure range of centrifugal inline blower are from 800m³/h to 2000m³/h. Centrifugal air blower is the ideal subsidiary equipment for various heat exchanger, cabinet central air conditioning unit, changeable air conditioners, tube unit, VAV system, heating ,cleansing and other kind of ventilating system.
Centrifugal blower consists of centrifugal blower steel housing, centrifugal blower fan wheel, base plate and centrifugal blower motor.
The centrifugal blower housing is made of hot galvanized steel sheet. The side plates include inlets cones that are designed with the best aerodynamics for inlet condition. The centrifugal blower housing is fixed to the side plates by spot welding. On the side of the centrifugal fan housing there are a series of holes drilled in advance for riveting nuts to carry out installation according to air outlet direction needed by the customer.
Forward curved centrifugal fan impeller is constructed of high-grade hot galvanized steel sheet with the advanced aerodynamics profile to achieve the highest efficiency and the lowest noise level. The centrifugal fan wheel is fixed on the center plate and on the end ring with riveting grip pres. The centrifugal blower wheel is constructed with maximum strength that endures the continuous operation with maximum power.
Base plates of centrifugal blower fan are made of high-quality galvanized steel sheet, which can be assembled with the direction by the customer demand.
Centrifugal blower motor can be single-phase AC motors of 220V/50HZ, 110V/60HZ with 3 speeds, to make an AC centrifugal blower fan OR EC motors with three speeds to make an EC centrifugal blower fan, which are flexible to change speed and easy to install. Speed can be changed by using provided silicon controlled voltage regulator and frequency converter.
Centrifugal Fan Manufacturer
Technician and manufacturing experts will work with you to implement any centrifugal inline blower design ideas and needs you have and bring them to reality. We additionally offer centrifugal air blower samples for you to test and approve before we begin manufacturing your personalized direct drive centrifugal blower.
If you are seeking for dual centrifugal blower factory, centrifugal blower fan factories & manufacturers & suppliers, you have come to the right ac centrifugal blower, dc centrifugal blower, ec centrifugal blower website. OR, if you want to know centrifugal blower design, centrifugal blower dimensions, please just feel free to contact CPMDJ, for centrifugal blower quotes.
Why Choose Us?
As a centrifugal blower manufacturers & factories & suppliers, Changpeng Motor Co., Ltd offers our customers further important plus points except focusing on centrifugal blower quality. One of our focal points is the fast delivery of centrifugal blower fan - including special designs.
Flexible machining from centrifugal air blower manufacturers & suppliers & factories, Changzhou Changpeng Motor Co., Ltd allows us to achieve exceptional response times. CPMDJ's customers around the world appreciate our fast delivery service. Try us out! Team of experts from CPMDJ will help you to find the right centrifugal fan blower for your application.
CPMDJ provides a 24-hour hotline for our centrifugal blower fans customers. You can use it to reach us around the clock in the case of a pressing operational disruption. With CPMDJ, you can depend on an centrifugal blower manufacturer & factory & supplier who can supply centrifugal air blower with various voltages and outputs even outside normal working hours - all around the world.
