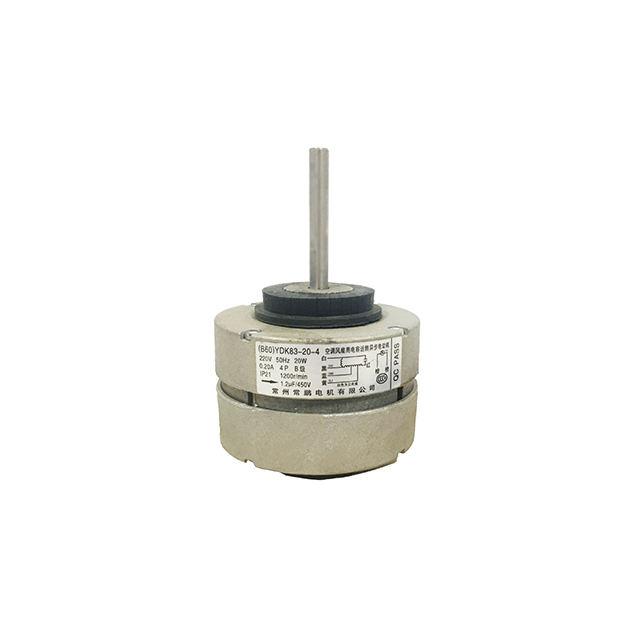

YDK83-20-4
CPMDJ
Availability: | |
---|---|
Quantity: | |
Product Description
Being a air purifier motor, humidifier fan motor factory & supplier, CPMDJ offers various HVAC fan motor models for different applications. It goes without saying, our air purifier fan motor meets the requirements of international standards and state-of-the-art technology. Want to know air purifier fan motor replacement cost or air purifier motor price? Contact CPMDJ now!
Air purifier fan motor is not that complicated, referring to its structure. Air purifier fan motor from CPMDJ consist of a stator and contain a rotating rotor inside, which is surrounded by pole-pieces. All our air purifier fan motors comply with the appropriate International Standards as far as: air purifier motor output, air purifier motor performance and dimensions of air purifier fan motor replacement.
Air purifier fan motors from Changzhou Changpeng Motor Co.,Ltd are designed with Class B insulation as well as an automatic thermal overload protector. Benefit from continuing development of CPMDJ technology team, all air purifier motors from CPMDJ have high precision with high performance. We are proud to present CPMDJ technology with low temperature rise, silent noise and low vibration. Single phase air purifier motor is economical and high efficiency. Air purifier fan motor replacement comes with low vibration level and low noise and can be used in a variety of air conditioning industries with high performance.
Model | Voltage(V) | Frequency(Hz) | Output(W) | Speed(RPM) | Capacitor(μF) |
YDK83-20-4 | 208-230 | 50/60 | 20 | 1300 | 2 |
YDK93-16-4 | 208-230 | 50/60 | 16 | 1300 | 1.5 |
YDK93-25-4 | 208-230 | 50/60 | 25 | 1300 | 2.5 |
YDK120-30-8 | 208-230 | 50/60 | 30 | 520 | 3 |
YDK120-50-8 | 208-230 | 50/60 | 50 | 520 | 4 |
YDK139-100-10 | 208-230 | 50/60 | 100 | 480 | 6 |
Air Purifier Fan Motor Factory & Supplier
If you are seeking for air purifier fan motor manufacturers, factory & suppliers china, you have come to the right air purifier fan motor website. OR, if you want to know air purifier motor wiring, ac air purifier motor price / cost,even how to replace fan motor in air purifier, how to test air purifier fan motor, please just feel free to contact CPMDJ, the air purifier fan motor supplier china. Refer to air purifier motor, our air purifier fan motors are asynchronous ac fan motors, on the other hand, is in a separate AC motor class because of the differences in design and operational characteristics. Changzhou Changpeng Motor Co., Ltd offers a robust catalog of air purifier motors made by our fan motor factory & manufacturers that can be tailored to your exact specifications of air purifier fan motors. Our air purifier motors are much popular in the market.
CPMDJ has expent huge manual work, skill and years of experience to offer such a wide range of air purifier fan motor. Furthermore, Changzhou Changpeng Motor Co., Ltd has dipping equipment and drying kilns with shaft heights up to 800 mm, an in-house welding shop for flexible production of special components and custom welding designs, VPI dipping equipment and experienced specialists who truly understand their processes. This is how CPMDJ guarantee you the high quality, reliability and durability of air purifier motor.
1. STATOR CORE & ROTOR COREStator core and rotor core for fan motor from air purifier fan motor factory are built up of thin punched laminations of Silicon Steel, its stator laminations and rotor laminations are made by high speed punch machine which is invested by our own, and this plays a vital role in quality of ac fan motor. Over 10 Million press strokes per day allows output of over 100 Tons finished stator / rotor core laminations each day. | |
2. COIL WINDINGProfessional in the air purifier fan motor technology, team from air purifier fan motor supplier has extensive experience working with both copper and aluminium wire in various forms to provide coil winding solutions. Our broad customer base demands that we cannot only supply our standard range of air purifier motor but also have the capability to provide custom solutions to solve challenges others can't. Contact your air purifier fan motor manufacturers & suppliers now! | |
3. STATOR ASSEMBLYChangpeng Motor Co., Ltd, china fan motor manufacturer, has specialized in air purifier fan motor technology, stator assembling can be solved by our own professonal assembly technique. It meets the requirements of series production in universal ac condenser fan motor, fan coil motor, hvac fan motor, condenser fan motor, cooler fan motor and other fan motor for ac unit. We develop and examine the entire process chain - from slot insulation to impregnating the stator and test. | |
4. ROTOR ASSEMBLYRotor assembly is critical to air purifier fan motors in a variety of industries and applications, like air purifier, heater, condenser, air conditioner, evaporator etc. CPMDJ, provides high quality silicon steel material to create professional and high quality rotor assembly for all AC fan motors. A rotor assembly of ac fan motor normally includes a cylindrically shaped shaft, a processed rotor iron core and a bearing. | |
5. FAN MOTOR SHAFTMotor shaft is the main component in electric fan motor. The size of the shaft significantly affects the torque in fan motor. In addition to the need to mount the rotor and a variety of attachments, like bearing, the model of the motor shaft is based on the cooling concept selection of the electric device. CPMDJ, china air purifier fan motor supplier & factory always offer you high quality shaft as air conditioner fan motor parts. | |
6. MOTOR ASSEMBLY & TESTINGMotor assembly includes assembling stator assembly, rotor assembly and end cover assembly with front cover. Testing of air purifier fan motor from air purifier fan motor suppliers china, Changpeng Motor, cover the whole areas from stator insulation test, electronic integrated test bench for winding inserting, motor integrated test bench, motor performance test, noise test and appearance detection through to dynamometer for high performance fan motor testing. |
Air Purifier Fan Motor Test
Visual inspection
Resistance measurement of stator winding at ambient temperature
Insulation resistance measurement of stator winding and accessories
High-voltage check of stator winding
Rotational direction check
No-load check at partial voltage
Heating test under load
Measurement of load characteristic (25%, 50%, 75%, 100%, and 125% load)
Bearing heating check at no load and rated speed (only for friction-type bearing machines)
Check of fan motor accessories
Measurement of ripple voltage at rated voltage, rated frequency, and no-load speed
Creation of test report
In addition, the following optional tests are possible for asynchronous fan motors:
Measurement of no-load characteristic (recording of no-load current and no-load power at differing voltage)
Measurement of short circuit characteristic (recording of short circuit current and short circuit power at differing voltage)
Determination of polarization index of stator winding
Noise measurement (only at no load)
System/routine/type test of asynchronous fan motors
Visual inspection
Resistance measurement of stator winding at ambient temperature
Insulation resistance measurement of stator winding and accessories
High-voltage check of stator winding
Rotational direction check
No-load check at rated voltage
Short-circuit test at partial voltage
Check of fan motor accessories
Measurement of ripple voltage at rated voltage, rated frequency, and no-load speed
Creation of test report
In addition, the following optional tests are possible for asynchronous fan motors:
Measurement of no-load characteristic (recording of no-load current and no-load power at differing voltage)
Measurement of short circuit characteristic (recording of short circuit current and short circuit power at differing voltage)
Determination of polarization index of stator winding
Noise measurement (only at no load)
Type testing of asynchronous fan motors, with heat run
Service from Air Purifier Fan Motor Manufacturers
At Changzhou Changpeng Motor Co. Ltd, always you can find a person who will response to your questions about the best air purifier motor solution for your application - quickly and competently. High-quality technical production and processing systems and the handling of qualified, experienced engineers and skilled workers guarantee you the highest motor standards. Additionally, all of our air purifier fan motor complies with current ISO standards.
As a fan motor factory & manufacturer & supplier for HVAC applications, Changpeng Motor Co., Ltd offers our customers further important plus points except focusing on fan motor quality. One of our focal points is the fast delivery of air purifier fan motor replacement - including special designs. Not many air conditioner fan motor suppliers & manufacturers are able to claim that they can supply brand-new fan motors from their own ranges but also the OEM replacement motor of other brands within just a few days.
Flexible machining from our fan motor factory, manufacturer & supplier allows us to achieve exceptional response times. CPMDJ customers around the world appreciate our fast delivery service. Try us out! Team of experts from Changpeng Motor Co., Ltd will help you to find the right air purifier fan motors for your HVAC application.
CPMDJ provides a 24-hour hotline for our air purifier motor customers. You can use it to reach us around the clock in the case of a pressing operational disruption. With CPMDJ, you can depend on an air purifier fan motor factory & manufacturer & supplier who can supply air purifier fan motors with various voltages and outputs even outside normal working hours - all around the world.
There's a lot to consider when it comes to ordering fan motors. The CPMDJ team is here for you. Let us know what you're looking for, and we'll help you determine which fan motor options are best for your application.
