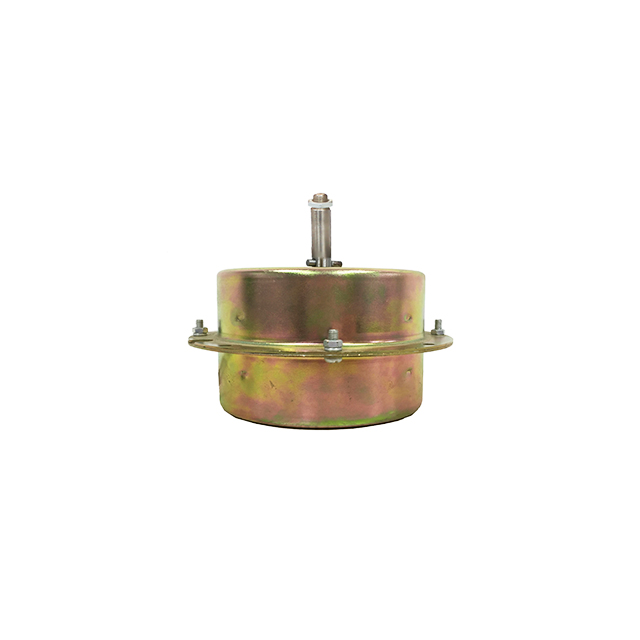

China AC Fan Motor for Dehumidifier Dehumidifiers Parts

Dehumidifier Fan Motor Blower Motor
Thermal Protection: Automatic
Dehumidifier MotorPhase: 1
Maximum Ambient Temperature: 70° C
Voltage ofdehumidifier fan motor: 208-240V
Insulation Class ofdehumidifier fan motor: B/F
Frequency ofdehumidifier fan motor: 50Hz/ 60Hz
Permanent Split Capacitor (PSC)dehumidifier motor
Dehumidifier fan motor replacementDia: 80/83/93/120mm
  • YY-13
  • CPMDJ
Availability:
Quantity:

Product Description


Dehumidifier Fan Motor Structure


Dehumidifier fan motor is not that complicated, referring to its structure. Dehumidifier fan motors from CPMDJ consist of a stator and contain a rotating rotor inside, which is surrounded by pole-pieces. All our dehumidifier motors comply with the appropriate International Standards as far as: dehumidifier fan motor output, dehumidifier motor performance and dimensions of dehumidifier fan motor replacement.


Dehumidifier Fan motor for Sale


As a leading dehumidifier fan motor factory & supplier, all our dehumidifier fan motor for sale as well as other fan motor models. CPMDJ offers various HVAC fan motor models for different applications, like ceiling type air conditoner motors, window type air conditioner motors, universal ac condenser fan  motors, air cooler motors, air conditioner fan motors, indoor fan motors, outdoor fan motors, condenser fan motors, general purpose fan motors, fan coil motors, heat pump fan motors, EC fan motors, AC centrifugal fans and EC centrifugal fans.


We have 8 production lines and each fitted with a complete set of fan motor manufacturing machinery. Our dehumidifier fan motor factory operations are run by over 100 certified technicians and many more support staff. The dehumidifier fan motor manufacturing process begins with the stator core & rotor core making, coil winding to stator assembling & rotor assembling and motor cover assembling with shaft as well. Each dehumidifier motor is tested and checked before packing.


It goes without saying, our dehumidifier fan motor meets the requirements of international standards and state-of-the-art technology. Want to know dehumidifier fan motor cost or dehumidifier fan motor price? Contact CPMDJ now!


Dehumidifier Fan Motor Models



ModelVoltage(V)Frequency(Hz)Output(W)speed(RPM)Capacitor(μF)
YDK80-20-4208-23050/602012002
YDK83-20-4208-23050/602013002
YDK93-16-4208-23050/601613001.5
YDK93-25-4208-23050/602513002.5
YDK120-30-8208-23050/60305203
YDK120-50-8208-23050/60505204

Dehumidifier Fan Motor Features



Compact Size of Dehumidifier Fan Motor

Dehumidifier fan motor from Changzhou Changpeng Motor Co., Ltd uses housing-steel iron cover which is helpful for impact protection.


CPMDJ's Dehumidifier Motor Design of Efficient Ventilation System

High performance ventilation system is applied which is helpful to effectively exchange air from inside environment. This contributes to a perfect performance dehumidifier fan motor replacement.


Plastic Insulation Used for Dehumidifier Fan Motor


Plastic insulator used are all of high temperature resistance which can support high heat. This is one of the components that makes CPMDJ dehumidifier fan motor one of the safest dehumidifier motor in the market.


All these features decide the quality of our dehumidifier fan motors which have high precision with high performance and are also benefit from continuing development of CPMDJ technology team. We are proud to present CPMDJ technology with low temperature rise, silent noise and low vibration. Single phase dehumidifier fan motor replacement is economical and high efficiency. The insulation class B & E of dehumidifier fan motor comes with low vibration level and low noise and can be used in a variety of air conditioning industries with high performance.


OEM dehumidifier fan motor replacement from Changzhou Changpeng Motor Co.,Ltd, the fan motor factory, supplier & manufacturer, are widely used in various markets. During the past years, CPMDJ insists on producing high-quality dehumidifier fan motor fan motors at competitive prices. It is worth mentioning that dehumidifier motors from CPMDJ are all of low temperature rise and with automatic thermal protectors.


Custom Dehumidifier Fan Motor Solutions


At Changzhou Changpeng Motor Co.,Ltd, you always have a personal contact who will be happy to advise you and answer your questions about the best dehumidifier fan motor solution for your application - quickly and competently. High-quality technical production and processing systems and the handling of qualified, experienced engineers and skilled workers guarantee you the highest dehumidifier motor standards. Additionally, all of our dehumidifier fan motors comply with current ISO standards.


Dehumidifier Fan Motor Manufacturer & Supplier


Dehumidifier Fan Motor Manufacturer & Factory & Supplier


If you are seeking for dehumidifier fan motor factory & manufacturers & suppliers china, you have come to the right dehumidifier fan motor website. OR, if you want to know dehumidifier fan motor wiring, dehumidifier fan motor price / cost,even how to replace fan motor in dehumidifier, how to test dehumidifier fan motor, please just feel free to contact CPMDJ, the dehumidifier fan motor supplier china. Refer to dehumidifier fan motor, our dehumidifier fan motors are asynchronous ac fan motors, on the other hand, is in a separate AC motor class because of the differences in design and operational characteristics. Changzhou Changpeng Motor Co., Ltd offers a robust catalog of dehumidifier motors made by our fan motor factory & manufacturers that can be tailored to your exact specifications of dehumidifier fan motors. Our dehumidifier fan motors are much popular in the market, etc.


CPMDJ CHANGZHOU CHANGPENG MOTOR CO.,LTD FAN MOTOR SUPPLIER FACTORY MANUFACTURERS SUPPLIERS -HVACFANMOTOR.COM


Dehumidifier fan motor manufacturing processes


CPMDJ has expent huge manual work, skill and years of experience to offer such a wide range of dehumidifier fan motor,. Furthermore, Changzhou Changpeng Motor Co., Ltd has dipping equipment and drying kilns with shaft heights up to 800 mm, an in-house welding shop for flexible production of special components and custom welding designs, VPI dipping equipment and experienced specialists who truly understand their processes. This is how CPMDJ guarantee you the high quality, reliability and durability of dehumidifier motor.


1. STATOR CORE & ROTOR CORE


Stator core and rotor core for fan motor from dehumidifier fan motor factory are built up of thin punched laminations of Silicon Steel, its stator laminations and rotor laminations are made by high speed punch machine which is invested by our own, and this plays a vital role in quality of ac fan motor. Over 10 Million press strokes per day allows output of over 100 Tons finished stator / rotor core laminations each day.

stator-core-and-rotor-core-for-fan-motor for air cooler motor factory manufacturers suppliers
motor-manufacturing-processes coil winding for air cooler motor factory manufacturers suppliers

2. COIL WINDING


Professional in the dehumidifier fan motor technology, team from dehumidifier fan motor supplier has extensive experience working with both copper and aluminium wire in various forms to provide coil winding solutions. Our broad customer base demands that we cannot only supply our standard range of dehumidifier fan motor but also have the capability to provide custom solutions to solve challenges others can't. Contact your dehumidifier fan motor manufacturers  & suppliers now!

3. STATOR ASSEMBLY


Changpeng Motor Co., Ltd, china fan motor manufacturer, has specialized in dehumidifier fan motor technology, stator assembling can be solved by our own professonal assembly technique. It meets the requirements of series production in universal ac condenser fan motor, fan coil motor, hvac fan motor, condenser fan motor, cooler fan motor and other fan motor for ac unit. We develop and examine the entire process chain - from slot insulation to impregnating the stator and test.

motor-manufacturing-processes stator assembly for air cooler motor factory manufacturers suppliers
rotor-assembly-of-fan-motor from fan motor manufacturers suppliers factory

4. ROTOR ASSEMBLY


Rotor assembly is critical to dehumidifier motors in a variety of industries and applications, like condenser, air conditioner, evaporator etc. CPMDJ, provides high quality silicon steel material to create professional and high quality rotor assembly for all AC fan motors. A rotor assembly of ac fan motor normally includes a cylindrically shaped shaft, a processed rotor iron core and a bearing.

5. FAN MOTOR SHAFT


Motor shaft is the main component in electric fan motor. The size of the shaft significantly affects the torque in fan motor. In addition to the need to mount the rotor and a variety of attachments, like bearing, the model of the motor shaft is based on the cooling concept selection of the electric device. CPMDJ, china dehumidifier fan motor supplier & factory always offer you high quality shaft as air conditioner fan motor parts.

motor-shaft for air cooler motor factory manufacturers suppliers
fan motor test in fan motor manufacturer suppliers manufacturers - cpmdj

6. MOTOR ASSEMBLY & TESTING


Motor assembly includes assembling stator assembly, rotor assembly and end cover assembly with front cover. Testing of dehumidifier fan motor from dehumidifier fan motor suppliers china, Changpeng Motor, cover the whole areas from stator insulation test, electronic integrated test bench for winding inserting, motor integrated test bench, motor performance test, noise test and appearance detection through to dynamometer for high performance fan  motor testing.


Why be our agency of fan motor?


As a prominent and leading dehumidifier fan motor suppliers & factory from china, Changpeng motor is willing to open worldwide market by agency. Be our agency, you can extend your business fast for your fan motors at the competitive price, stable qualtity and excellent after service. Contact your dehumidifier fan motor factory to get dehumidifier fan motor cost now!


be agency of china fan motor manfuacturers factory suppliers- changpeng motor


Dehumidifier Fan Motor Test & Applications


Routine testing and type tests for all Dehumidifier fan motor

Process flow - routine, type, and system testing


The type test for asynchronous fan motors contains the following test steps:

  • Visual inspection

  • Resistance measurement of stator winding at ambient temperature

  • Insulation resistance measurement of stator winding and accessories

  • High-voltage check of stator winding

  • Rotational direction check

  • No-load check at partial voltage

  • Heating test under load

  • Measurement of load characteristic (25%, 50%, 75%, 100%, and 125% load)

  • Bearing heating check at no load and rated speed (only for friction-type bearing machines)

  • Check of fan motor accessories

  • Measurement of ripple voltage at rated voltage, rated frequency, and no-load speed

  • Creation of test report


In addition, the following optional tests are possible for asynchronous fan motors:


  • Measurement of no-load characteristic (recording of no-load current and no-load power at differing voltage)

  • Measurement of short circuit characteristic (recording of short circuit current and short circuit power at differing voltage)

  • Determination of polarization index of stator winding

  • Noise measurement (only at no load)

  • System/routine/type test of asynchronous fan motors



desert cooler fan motor test air cooler fan motor factory manufacturers suppliers


The routine test for asynchronous capacitor start fan motors contains the following test steps:

  • Visual inspection

  • Resistance measurement of stator winding at ambient temperature

  • Insulation resistance measurement of stator winding and accessories

  • High-voltage check of stator winding

  • Rotational direction check

  • No-load check at rated voltage

  • Short-circuit test at partial voltage

  • Check of fan motor accessories

  • Measurement of ripple voltage at rated voltage, rated frequency, and no-load speed

  • Creation of test report


In addition, the following optional tests are possible for asynchronous fan motors:


  • Measurement of no-load characteristic (recording of no-load current and no-load power at differing voltage)

  • Measurement of short circuit characteristic (recording of short circuit current and short circuit power at differing voltage)

  • Determination of polarization index of stator winding

  • Noise measurement (only at no load)

  • Type testing of asynchronous fan motors, with heat run


Dehumidifier Fan Motor Applications


Dehumidifier fan motor supplier, factory & manufacturer in china - Changzhou Changpeng Motor Co., Ltd, is leading the fan motor factory & manufacturers whose motors can be applied in various kinds of dehumidifier.


motor for dehumidifier from dehumidifier fan motor factory manfuacturers suppliers


Service from Dehumidifier Fan Motor Factory


Customized Dehumidifier Fan Motor Solutions


At Changzhou Changpeng Motor Co. Ltd, always you can find a person who will response to your questions about the best dehumidifier motor solution for your application - quickly and competently. High-quality technical production and processing systems and the handling of qualified, experienced engineers and skilled workers guarantee you the highest motor standards. Additionally, all of our dehumidifier fan motor complies with current ISO standards.


24/7 After Service Availability


As a fan motor factory & manufacturer & supplier for HVAC applications, Changpeng Motor Co., Ltd offers our customers further important plus points except focusing on fan motor quality. One of our focal points is the fast delivery of dehumidifier fan motor replacement - including special designs. Not many air conditioner fan motor suppliers & manufacturers are able to claim that they can supply brand-new fan motors from their own ranges but also the OEM replacement motor of other brands within just a few days.

Flexible machining from our fan motor factory, manufacturer & supplier allows us to achieve exceptional response times. CPMDJ customers around the world appreciate our fast delivery service. Try us out! Team of experts from Changpeng Motor Co., Ltd will help you to find the right dehumidifier fan motors for your HVAC application.


24-hour emergency hotline


CPMDJ provides a 24-hour hotline for our dehumidifier fan motor customers. You can use it to reach us around the clock in the case of a pressing operational disruption. With CPMDJ, you can depend on an dehumidifier fan motor factory & manufacturer & supplier who can supply dehumidifier fan motors with various voltages and outputs even outside normal working hours - all around the world.


service from changpeng motor for air conditioner motor air cooler motor fan coil motor fan motor
