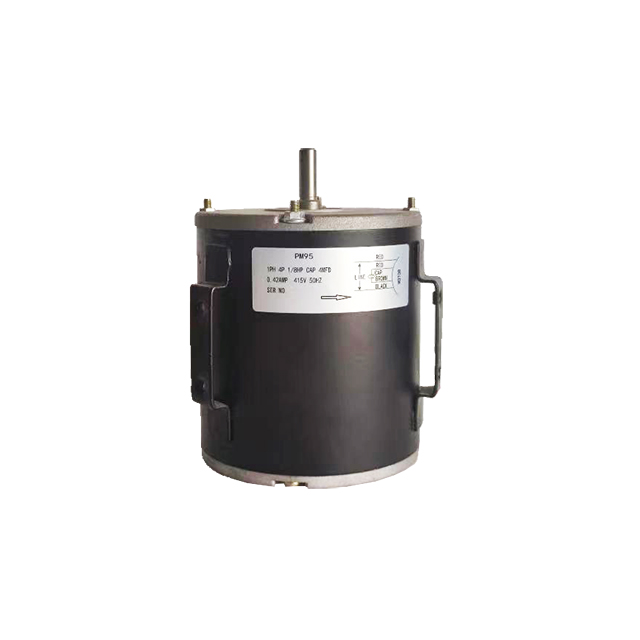

PM95 Fan Motor for Electric Forced Air Heater Warmer in German Market

PM95 Air Heater Motor
Thermal Protection: Automatic
Heater Motor Phase: 1
Maximum Ambient Temperature: 70° C
Voltage of heater fan motor: 208-240V
Insulation Class of warmer fan motor: B/F
Frequency of warmer motor : 50Hz/ 60Hz
Permanent Split Capacitor (PSC) heater motors
air heater fan motor replacement Dia: 83/95mm
  • PM95

  • CPMDJ

Availability:
Quantity:

Product Description


PM95 Fan Motor for Electric Forced Air Heater - Structure


PM95 Fan Motor for Electric Forced Air Heater is not that complicated, referring to its structure. PM95 Heater Fan Motor from CPMDJ consist of a stator and contain a rotating rotor inside, which is surrounded by pole-pieces. All our motors for electric forced air heater comply with the appropriate International Standards as far as: heater fan motor output, heater motor performance and dimensions of heater fan motor replacement.


Heater Fan motor for Sale


As a leading fan motor factory & supplier, all our heater fan motor for sale as well as other fan motor models. CPMDJ offers various fan motor models for different applications, like ceiling type air conditoner motors, window type air conditioner motors, universal ac condenser fan  motors, air cooler motors, air conditioner fan motors, indoor fan motors, outdoor fan motors, condenser fan motors, general purpose fan motors, fan coil motors, heat pump fan motors, EC fan motors, AC centrifugal fans and EC centrifugal fans.


We have 8 production lines and each fitted with a complete set of fan motor manufacturing machinery. Our heater fan motor factory operations are run by over 100 certified technicians and many more support staff. The heater fan motor manufacturing process begins with the stator core & rotor core making, coil winding to stator assembling & rotor assembling and motor cover assembling with shaft as well. Each heater motor is tested and checked before packing.


It goes without saying, our heater fan motor meets the requirements of international standards and state-of-the-art technology. Want to know heater fan motor cost or heater fan motor price? Contact CPMDJ now!


Heater Fan Motor Models




Model Voltage(V) Frequency(Hz) Output(W) speed(RPM) poles
PM83 230 50 1/8HP 1400 4
PM95 230 50 1/12 HP 1400 4



Warmer Motor Solutions


At Changzhou Changpeng Motor Co.,Ltd, you always have a personal contact who will be happy to advise you and answer your questions about the best heater fan motor solution for your application - quickly and competently. High-quality technical production and processing systems and the handling of qualified, experienced engineers and skilled workers guarantee you the highest heatermotor standards. Additionally, all of our heater fan motors comply with current ISO standards.


Heater Motor Manufacturer & Supplier


Heater Fan Motor Manufacturer & Factory & Supplier


If you are seeking for heater fan motor factory & manufacturers & suppliers china, you have come to the right heater fan motor website. OR, if you want to know heater fan motor wiring, heater fan motor price / cost,even how to replace fan motor in heater, how to test heater fan motor, please just feel free to contact CPMDJ, the heater fan motor supplier china. Refer to heatermotor, our heater fan motors are asynchronous ac fan motors, on the other hand, is in a separate AC motor class because of the differences in design and operational characteristics. Changzhou Changpeng Motor Co., Ltd offers a robust catalog of heater motors made by our fan motor factory & manufacturers that can be tailored to your exact specifications of heater fan motors. Our heater motors are much popular in the market, etc.


CPMDJ CHANGZHOU CHANGPENG MOTOR CO.,LTD FAN MOTOR SUPPLIER FACTORY MANUFACTURERS SUPPLIERS -HVACFANMOTOR.COM


Warmer motor manufacturing processes


CPMDJ has expent huge manual work, skill and years of experience to offer such a wide range of heaterfan motor,. Furthermore, Changzhou Changpeng Motor Co., Ltd has dipping equipment and drying kilns with shaft heights up to 800 mm, an in-house welding shop for flexible production of special components and custom welding designs, VPI dipping equipment and experienced specialists who truly understand their processes. This is how CPMDJ guarantee you the high quality, reliability and durability of heater motor.


1. STATOR CORE & ROTOR CORE


Stator core and rotor core for fan motor from heater fan motor factory are built up of thin punched laminations of Silicon Steel, its stator laminations and rotor laminations are made by high speed punch machine which is invested by our own, and this plays a vital role in quality of ac fan motor. Over 10 Million press strokes per day allows output of over 100 Tons finished stator / rotor core laminations each day.

stator-core-and-rotor-core-for-fan-motor for air cooler motor factory manufacturers suppliers
motor-manufacturing-processes coil winding for air cooler motor factory manufacturers suppliers

2. COIL WINDING


Professional in the heater fan motor technology, team from heater fan motor supplier has extensive experience working with both copper and aluminium wire in various forms to provide coil winding solutions. Our broad customer base demands that we cannot only supply our standard range of heater fan motor but also have the capability to provide custom solutions to solve challenges others can't. Contact your heater fan motor manufacturers  & suppliers now!

3. STATOR ASSEMBLY


Changpeng Motor Co., Ltd, china fan motor manufacturer, has specialized in heater fan motor technology, stator assembling can be solved by our own professonal assembly technique. It meets the requirements of series production in universal ac condenser fan motor, fan coil motor, hvac fan motor, condenser fan motor, cooler fan motor and other fan motor for ac unit. We develop and examine the entire process chain - from slot insulation to impregnating the stator and test.

motor-manufacturing-processes stator assembly for air cooler motor factory manufacturers suppliers
rotor-assembly-of-fan-motor from fan motor manufacturers suppliers factory

4. ROTOR ASSEMBLY


Rotor assembly is critical to heater motors in a variety of industries and applications, like condenser, air conditioner, evaporator etc. CPMDJ, provides high quality silicon steel material to create professional and high quality rotor assembly for all AC fan motors. A rotor assembly of ac fan motor normally includes a cylindrically shaped shaft, a processed rotor iron core and a bearing.

5. FAN MOTOR SHAFT


Motor shaft is the main component in electric fan motor. The size of the shaft significantly affects the torque in fan motor. In addition to the need to mount the rotor and a variety of attachments, like bearing, the model of the motor shaft is based on the cooling concept selection of the electric device. CPMDJ, china heater fan motor supplier & factory always offer you high quality shaft as air conditioner fan motor parts.

motor-shaft for air cooler motor factory manufacturers suppliers
fan motor test in fan motor manufacturer suppliers manufacturers - cpmdj

6. MOTOR ASSEMBLY & TESTING


Motor assembly includes assembling stator assembly, rotor assembly and end cover assembly with front cover. Testing of heater fan motor from heater fan motor suppliers china, Changpeng Motor, cover the whole areas from stator insulation test, electronic integrated test bench for winding inserting, motor integrated test bench, motor performance test, noise test and appearance detection through to dynamometer for high performance fan  motor testing.


Why be our agency of fan motor?


As a prominent and leading heater fan motor suppliers & factory from china, Changpeng motor is willing to open worldwide market by agency. Be our agency, you can extend your business fast for your fan motors at the competitive price, stable qualtity and excellent after service. Contact your heater fan motor factory to get heater fan motor cost now!


be agency of china fan motor manfuacturers factory suppliers- changpeng motor


Heater Fan Motor Test & Applications


Routine testing and type tests for all heater fan motor

Process flow - routine, type, and system testing


The type test for asynchronous fan motors contains the following test steps:

  • Visual inspection

  • Resistance measurement of stator winding at ambient temperature

  • Insulation resistance measurement of stator winding and accessories

  • High-voltage check of stator winding

  • Rotational direction check

  • No-load check at partial voltage

  • Heating test under load

  • Measurement of load characteristic (25%, 50%, 75%, 100%, and 125% load)

  • Bearing heating check at no load and rated speed (only for friction-type bearing machines)

  • Check of fan motor accessories

  • Measurement of ripple voltage at rated voltage, rated frequency, and no-load speed

  • Creation of test report


In addition, the following optional tests are possible for asynchronous fan motors:


  • Measurement of no-load characteristic (recording of no-load current and no-load power at differing voltage)

  • Measurement of short circuit characteristic (recording of short circuit current and short circuit power at differing voltage)

  • Determination of polarization index of stator winding

  • Noise measurement (only at no load)

  • System/routine/type test of asynchronous fan motors



desert cooler fan motor test air cooler fan motor factory manufacturers suppliers


The routine test for asynchronous capacitor start fan motors contains the following test steps:

  • Visual inspection

  • Resistance measurement of stator winding at ambient temperature

  • Insulation resistance measurement of stator winding and accessories

  • High-voltage check of stator winding

  • Rotational direction check

  • No-load check at rated voltage

  • Short-circuit test at partial voltage

  • Check of fan motor accessories

  • Measurement of ripple voltage at rated voltage, rated frequency, and no-load speed

  • Creation of test report


In addition, the following optional tests are possible for asynchronous fan motors:


  • Measurement of no-load characteristic (recording of no-load current and no-load power at differing voltage)

  • Measurement of short circuit characteristic (recording of short circuit current and short circuit power at differing voltage)

  • Determination of polarization index of stator winding

  • Noise measurement (only at no load)

  • Type testing of asynchronous fan motors, with heat run


Heater Motor Applications


Heater fan motor supplier, factory & manufacturer in china - Changzhou Changpeng Motor Co., Ltd, is leading the fan motor factory & manufacturers whose motors can be applied in various kinds of heaters.

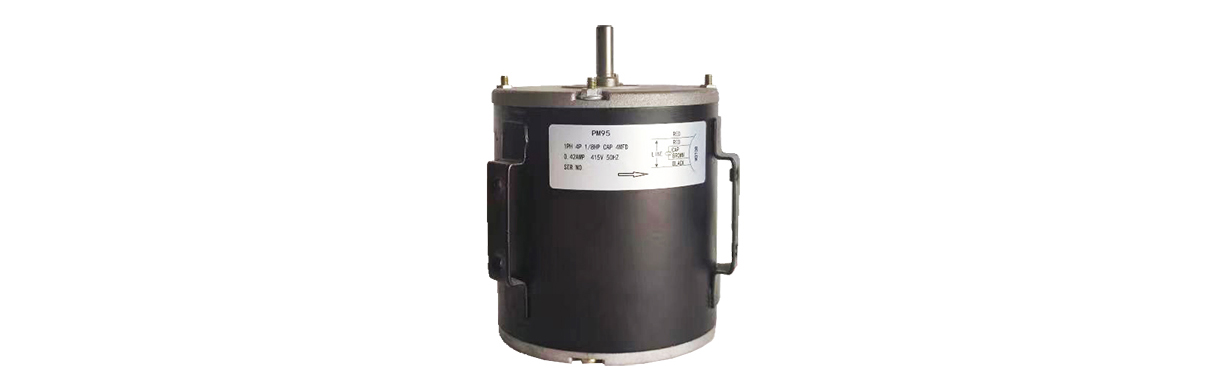

PM95 warmer motor Fan Motor for Electric Forced Air Heater Warmer from china motor factory manfuacturer supplier


Service from Heater Motor Factory


Customized Heater Fan Motor Solutions


At Changzhou Changpeng Motor Co. Ltd, always you can find a person who will response to your questions about the best heater motor solution for your application - quickly and competently. High-quality technical production and processing systems and the handling of qualified, experienced engineers and skilled workers guarantee you the highest motor standards. Additionally, all of our heater fan motor complies with current ISO standards.


24/7 After Service Availability


As a fan motor factory & manufacturer & supplier for HVAC applications, Changpeng Motor Co., Ltd offers our customers further important plus points except focusing on fan motor quality. One of our focal points is the fast delivery of heater fan motor replacement - including special designs. Not many air conditioner fan motor suppliers & manufacturers are able to claim that they can supply brand-new fan motors from their own ranges but also the OEM replacement motor of other brands within just a few days.

Flexible machining from our fan motor factory, manufacturer & supplier allows us to achieve exceptional response times. CPMDJ customers around the world appreciate our fast delivery service. Try us out! Team of experts from Changpeng Motor Co., Ltd will help you to find the right heater fan motors for your HVAC application.


24-hour emergency hotline


CPMDJ provides a 24-hour hotline for our heater fan motor customers. You can use it to reach us around the clock in the case of a pressing operational disruption. With CPMDJ, you can depend on an heater fan motor factory & manufacturer & supplier who can supply heater fan motors with various voltages and outputs even outside normal working hours - all around the world.


service from changpeng motor for air conditioner motor air cooler motor fan coil motor fan motor
