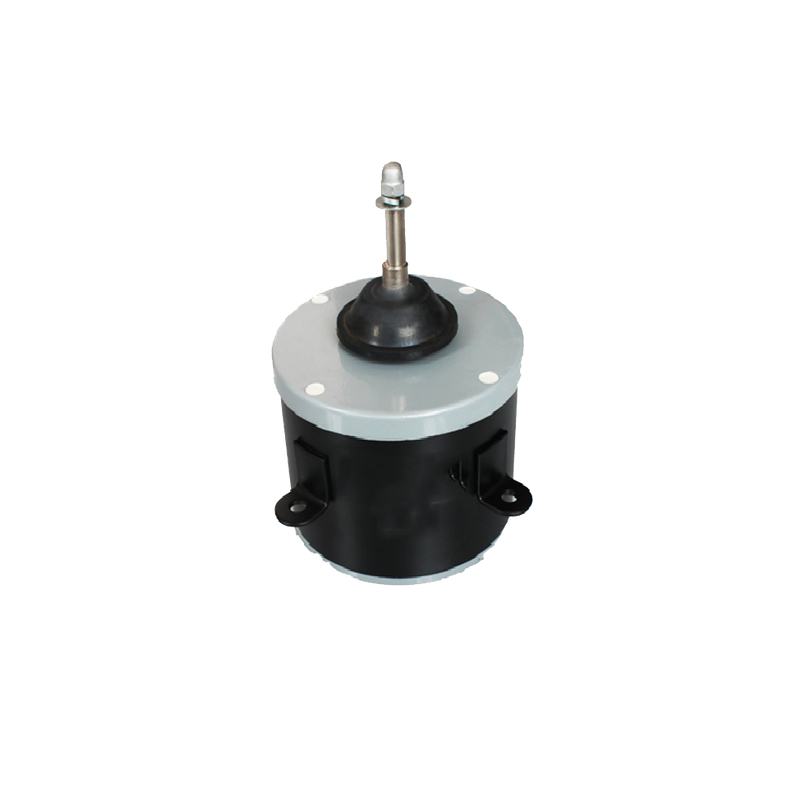

YDK139-90-6
CPMDJ
| Quantity: | |
|---|---|
Product Description
Heat pump motors mainly cover models of single phase heat pump condenser fan motor YDK139-90-6, YDK139-150-4, YDK139-250-6 and some YDK120-45-6, YDK120-60-6 as well as three phase heat pump fan motor replacement YT139-370-6. Single phase AC heat pump motors are extremely common in all walks of life. The vast majority of heat pump fan motors powered mains supply are single phase, but there are less applications need three phase heat pump condenser fan motors. One of the keys is to size the heat pump fan motor replacement correctly.
As leading china heat pump fan motor factory, Changzhou Changpeng Motor Co., Ltd has built into fan motor for heat pump advanced CPMDJ technology which sets a new industry standard for low temperature rise, high quality, precision and long-term reliability. All fan motor heat pump is engineered to maximize compatibility with existing brand heat pump relacing fan motor in electrical rating and mounting methods. Electric heat pump fan motor can be equipped with heat pump unit suiting a wider range of speed or power requirements. If you need heat pump fan motor replacement cost, contact us forheat pump fan motor cost first.
Referring to heat pump fan motor structure, it is not that complicated. Heat pump motor from CPMDJ heat pump fan motor factory consists of a stator and contain a rotating rotor inside, which is surrounded by pole-pieces. All our heat pump condenser fan motors comply with the appropriate International Standards. Single-phase & three-phase fan motor for heat pump is economical and high efficiency. The insulation class B / E of heat pump fan motor replacement comes with low vibration level and low noise and can be used in a variety of air conditioning industries with perfect performance.
Heat pump fan motor from CPMDJ uses housing-steel iron cover which is helpful for impact protection.
High performance ventilation system is applied which is helpful to effectively exchange air from inside environment. This contributes to a perfect performance of heat pump motor.
Plastic insulator used are all of high temperature resistance which can support high heat. This is one of the components that makes CPMDJ's heat pump condenser fan motor one of the safest china heat pump fan motor in the market.
| Item Number | Item Description | |||||||||
| YDK139-90-6 | Heat Pump Motor, 90W, 800±30 RPM or as your needs, 110V-120V / 208-230V | |||||||||
| YDK139-150-4 | Heat Pump Fan Motor, 150w, 1350 RPM or as your needs, 110V / 208-230V | |||||||||
| YDK139-250-6 | China Heat Pump Fan Motor, 250w, 1075 RPM or as your needs, 110V /220V | |||||||||
| YDK120-45-6 | Fan Motor for Heat Pump, 45w, 800±30 RPM or as your needs, 208-230V | |||||||||
| YDK120-60-6 | Fan Motor Heat Pump, 60w, 800±30 RPM or as your needs, 110V / 208-230V | |||||||||
| YT139-370-6 | heat pump replacing fan motor, 370w, 800±30 RPM or as your needs, 380V | |||||||||
These heat pump motor types are heat pump fan motor replacement of goodman heat pump fan motor, carrier heat pump fan motor, rheem heat pump condenser fan motor, york heat pump condenser fan motor, heil heat pump fan motor, ge heat pump fan motor, emerson heat pump fan motor, carrier heat pump condenser fan motor, rheem heat pump fan motor, kinds of heat pump fan motor, 2 ton heat pump fan motor, 2.5 ton heat pump fan motor, 3 ton heat pump fan motor, 3.5 ton heat pump outdoor fan motor, 3.5 ton trane heat pump condenser fan motor, 4 ton heat pump fan motor, 1hp motor for fan on 3 ton heat pump from CPMDJ heat pump fan motor factory & supplier & manufacturer.
Heat Pump Fan Motor Factory
As a heat pump fan motor factory & manufacturer & supplier, CPMDJ's heat pump fan motors are highly efficient HVAC fan motors. China heat pump fan motors are available as stand-alone fan motor for heat pump unit, designed to be paired with a variable types of air conditioning heat pump. Our heat pump fan motor replacement is optimized for energy management and sustainability. Heat pump condenser fan motors from Changzhou Changpeng Motor Co., Ltd offer LOW TEMPERATURE RISE designs with low noise and low vibration. These heat pump relacing fan motor have bearing protection installed and are a direct heat pump motor replacement for most OEM applications. Always we will give you best heat pump fan motor quotes and heat pump fan motor cost!
CPMDJ has expent huge manual work, skill and years of experience to offer such a wide range of heat pump condenser fan motor,. Furthermore, Changzhou Changpeng Motor Co., Ltd has dipping equipment and drying kilns with shaft heights up to 800 mm, an in-house welding shop for flexible production of special components and custom welding designs, VPI dipping equipment and experienced specialists who truly understand their processes. This is how CPMDJ guarantee you the high quality, reliability and durability of heat pump fan motor.
1. STATOR CORE & ROTOR COREStator core and rotor core for fan motor from heat pump condenser fan motor factory are built up of thin punched laminations of Silicon Steel, its stator laminations and rotor laminations are made by high speed punch machine which is invested by our own, and this plays a vital role in quality of ac fan motor. Over 10 Million press strokes per day allows output of over 100 Tons finished stator / rotor core laminations each day. |  |
 | 2. COIL WINDINGProfessional in the heat pump fan motor technology, team from heat pump fan motor supplier has extensive experience working with both copper and aluminium wire in various forms to provide coil winding solutions. Our broad customer base demands that we cannot only supply our standard range of china heat pump fan motor but also have the capability to provide custom solutions to solve challenges others can't. Contact your heat pump fan motor manufacturers & suppliers now! |
3. STATOR ASSEMBLYChangpeng Motor Co., Ltd, china heat pump fan motor manufacturer, has specialized in heat pump motor technology, stator assembling can be solved by our own professonal assembly technique. It meets the requirements of series production in universal ac condenser fan motor, fan coil motor, hvac fan motor, condenser fan motor, cooler fan motor and other fan motor for ac unit. We develop and examine the entire process chain - from slot insulation to impregnating the stator and test. |  |
 | 4. ROTOR ASSEMBLYRotor assembly is critical to fan motors for heat pumps in a variety of industries and applications, like condenser, air conditioner, evaporator etc. CPMDJ, provides high quality silicon steel material to create professional and high quality rotor assembly for all AC fan motors. A rotor assembly of ac fan motor normally includes a cylindrically shaped shaft, a processed rotor iron core and a bearing. |
5. FAN MOTOR SHAFTMotor shaft is the main component in electric fan motor. The size of the shaft significantly affects the torque in fan motor. In addition to the need to mount the rotor and a variety of attachments, like bearing, the model of the motor shaft is based on the cooling concept selection of the electric device. CPMDJ, china heat pump fan motor supplier & factory always offer you high quality shaft as air conditioner fan motor parts. |  |
 | 6. MOTOR ASSEMBLY & TESTINGMotor assembly includes assembling stator assembly, rotor assembly and end cover assembly with front cover. Testing heat pump fan motor from heat pump fan motor factory china, Changpeng Motor, cover the whole areas from stator insulation test, electronic integrated test bench for winding inserting, motor integrated test bench, motor performance test, noise test and appearance detection through to dynamometer for high performance fan motor testing. |
As a prominent and leading heat pump fan motor factory & supplier from china, Changpeng motor is willing to open worldwide market by agency. Be our agency, you can extend your business fast for your fan motors at the competitive price, stable qualtity and excellent after service. Contact your heat pump fan motor factory to get heat pump fan motor replacement cost now!
Testing a Fan Motor
Visual inspection
Resistance measurement of stator winding at ambient temperature
Insulation resistance measurement of stator winding and accessories
High-voltage check of stator winding
Rotational direction check
No-load check at partial voltage
Heating test under load
Measurement of load characteristic (25%, 50%, 75%, 100%, and 125% load)
Bearing heating check at no load and rated speed (only for friction-type bearing machines)
Check of fan motor accessories
Measurement of ripple voltage at rated voltage, rated frequency, and no-load speed
Creation of test report
In addition, the following optional tests are possible for asynchronous fan motors:
Measurement of no-load characteristic (recording of no-load current and no-load power at differing voltage)
Measurement of short circuit characteristic (recording of short circuit current and short circuit power at differing voltage)
Determination of polarization index of stator winding
Noise measurement (only at no load)
System/routine/type test of asynchronous fan motors
Visual inspection
Resistance measurement of stator winding at ambient temperature
Insulation resistance measurement of stator winding and accessories
High-voltage check of stator winding
Rotational direction check
No-load check at rated voltage
Short-circuit test at partial voltage
Check of fan motor accessories
Measurement of ripple voltage at rated voltage, rated frequency, and no-load speed
Creation of test report
In addition, the following optional tests are possible for asynchronous fan motors:
Measurement of no-load characteristic (recording of no-load current and no-load power at differing voltage)
Measurement of short circuit characteristic (recording of short circuit current and short circuit power at differing voltage)
Determination of polarization index of stator winding
Noise measurement (only at no load)
Type testing of asynchronous fan motors, with heat run
CPMDJ offers you a complete line of HVAC motors, which is designed to operate in the harshest applications while reducing total cost of ownership. Our fan motors can be used in a variety of applications including universal fan motors, desert cooler fan motors,swamp cooler fan motors, evaporative cooler fan motors, air cooler fan motors, air conditioner fan motors, indoor fan motors, outdoor fan motors, window AC fan motors, condenser fan motors, general purpose fan motors, fan coil motors, heat pump fan motors , resin encapsulated motors and EC fan motors. We can also customize any fan motor version for specialized HVAC applications.
Heat pump fan motor factory in china - Changzhou Changpeng Motor Co., Ltd, is leading heat pump fan motor factory & manufacturer whose motors can be applied in various kinds of condenser air conditioning, commercial and residential.
Service from Heat Pump Motor
At Changzhou Changpeng Motor Co. Ltd, always you can find a person who will response to your questions about the best heat pump motor solution for your application - quickly and competently. High-quality technical production and processing systems and the handling of qualified, experienced engineers and skilled workers guarantee you the highest motor standards. Additionally, all of our hvac heat pump condenser fan motor complies with current ISO standards.
As a heat pump fan motor factory & manufacturer & supplier for HVAC applications, Changpeng Motor Co., Ltd offers our customers further important plus points except focusing on fan motor quality. One of our focal points is the fast delivery of heat pump fan motor replacement - including special designs. Not many air conditioner fan motor suppliers & manufacturers are able to claim that they can supply brand-new fan motors from their own ranges but also the OEM replacement motor of other brands within just a few days.
Flexible machining from our fan motor factory, manufacturer & supplier allows us to achieve exceptional response times. CPMDJ customers around the world appreciate our fast delivery service. Try us out! Team of experts from Changpeng Motor Co., Ltd will help you to find the right heat pump condenser fan motors for your HVAC application.
CPMDJ provides a 24-hour hotline for our heat pump fan motor customers. You can use it to reach us around the clock in the case of a pressing operational disruption. With CPMDJ, you can depend on an heat pump fan motor factory & manufacturer & supplier who can supply heat pump motors with various voltages and outputs even outside normal working hours - all around the world.
