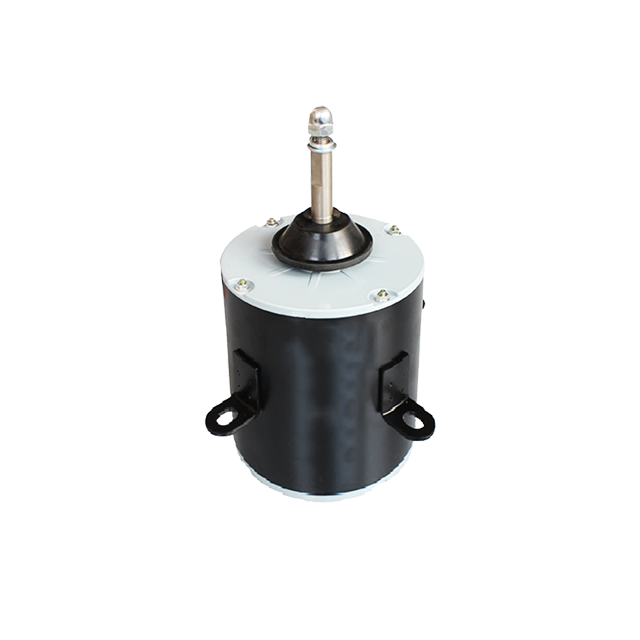

YDK139-250-6 Wholesale Air Source Heat Pump Fan Motor Cost

heat pump motor
Thermal Protection: Automatic
fan motor for heat pump Phase: 1
Insulation Class of fan motor heat pump: B/F
heat pump fan motor replacement Dia: 139mm
Voltage of china heat pump fan motor: 208-240V
Frequency of heat pump replacing fan motor: 50Hz/ 60Hz
Maximum Ambient Temperature of heat pump motor: 60/70° C
Permanent Split Capacitor (PSC) heat pump condenser fan motor
  • YDK139-150-4

  • CPMDJ

Availability:
Quantity:

Product Description

hvac heat pump condenser fan motor factory replacement quotes wiring diagram cost manufacturer supplier


Everything CPMDJ does is about meeting or exceeding your expectations for air source heat pump fan motor. Changzhou Changpeng Motor Co., Ltd is committed to dependability in design, manufacturing, testing, quick-delivery solutions, and heat pump condenser fan motor applications. We design and manufacture heat pump fan motor replacement to fit customer's specific needs too. Speeds of heat pump motor can be specifically designed based on your requirments. Our heat pump fan motors are available for most general purpose applications and processes of HVAC. The outdoor ac fan motor is most suitable for air conditioning heat pump unit applications where high performance, compact size and weight is most important.





Every china heat pump fan Motors are warranted to be free of defects in workmanship and materials for a period of 12 months from date of sale from the distributor to the contractor, or 18 months from the date of manufacture, whichever comes first. We will credit, repair or replace, at its option, any heat pump motor if deemed defective within this time period. Aways Changzhou Changpeng Motor Co., Ltd's heat pump condenser fan motors give customers perfect performance in restrictive systems.


  • Broad torque curve of china heat pump fan motor allows for greater flexibility

  • Multiple operating speeds of air source heat pump motor offer customer greater performance range

  • Automatic thermal overload protector provides heat pump condenser motor recognized thermal protection

  • High heat endurance features in 60 ℃ or 70 ℃ heat pump fan motor replacement models


 As leading china heat pump fan motor factory, Changzhou Changpeng Motor Co., Ltd has built into fan motor for heat pump advanced CPMDJ technology which sets a new industry standard for low temperature rise, high quality, precision and long-term reliability. All fan motor heat pump is engineered to maximize compatibility with existing brand heat pump relacing fan motor in electrical rating and mounting methods. Electric heat pump fan motor can be equipped with heat pump unit suiting a wider range of speed or power requirements. If you need heat pump fan motor replacement cost, contact us forheat pump fan motor cost first.


China Heat Pump Motor Features


Compact Size

Heat pump fan motor from CPMDJ uses housing-steel iron cover which is helpful for impact protection.


Efficient Ventilation System

High performance ventilation system is applied which is helpful to effectively exchange air from inside environment. This contributes to a perfect performance of heat pump motor.


Plastic Insulator Used

Plastic insulator used are all of high temperature resistance which can support high heat. This is one of the components that makes CPMDJ's heat pump condenser fan motor one of the safest china heat pump fan motor in the market.



Heat Pump Fan Motor Replacement


Item Number Item Description
YDK139-90-6 Heat Pump Motor, 90W, 800±30 RPM or as your needs, 110V-120V / 208-230V
YDK139-150-4 Heat Pump Fan Motor, 150w, 1350 RPM or as your needs, 110V / 208-230V
YDK139-250-6 China Heat Pump Fan Motor, 250w, 1075 RPM or as your needs, 110V /220V
YDK120-45-6 Fan Motor for Heat Pump, 45w, 800±30 RPM or as your needs, 208-230V
YDK120-60-6 Fan Motor Heat Pump, 60w, 800±30 RPM or as your needs, 110V / 208-230V
YT139-370-6 heat pump replacing fan motor, 370w, 800±30 RPM or as your needs, 380V


Heat pump motors mainly cover models of single phase heat pump condenser fan motor YDK139-90-6, YDK139-150-4, YDK139-250-6 and some YDK120-45-6, YDK120-60-6 as well as three phase heat pump fan motor replacement YT139-370-6. Single phase AC heat pump motors are extremely common in all walks of life. The vast majority of heat pump fan motors powered mains supply are single phase, but there are less applications need three phase heat pump condenser fan motors. One of the keys is to size the heat pump fan motor replacement correctly.


These heat pump motor types are heat pump fan motor replacement of goodman heat pump fan motor, carrier heat pump fan motor, rheem heat pump condenser fan motor, york heat pump condenser fan motor, heil heat pump fan motor, ge heat pump fan motor, emerson heat pump fan motor, carrier heat pump condenser fan motor, rheem heat pump fan motor, kinds of heat pump fan motor, 2 ton heat pump fan motor, 2.5 ton heat pump fan motor, 3 ton heat pump fan motor, 3.5 ton heat pump outdoor fan motor, 3.5 ton trane heat pump condenser fan motor, 4 ton heat pump fan motor, 1hp motor for fan on 3 ton heat pump from CPMDJ heat pump fan motor factory & supplier & manufacturer.


Heat Pump Fan Motor Factory


Heat Pump Fan Motor Factory & Supplier


As a heat pump fan motor factory & manufacturer & supplier, CPMDJ's heat pump fan motors are highly efficient HVAC fan motors. China heat pump fan motors are available as stand-alone fan motor for heat pump unit, designed to be paired with a variable types of air conditioning heat pump. Our heat pump fan motor replacement is optimized for energy management and sustainability. Heat pump condenser fan motors from Changzhou Changpeng Motor Co., Ltd offer LOW TEMPERATURE RISE designs with low noise and low vibration. These heat pump relacing fan motor have bearing protection installed and are a direct heat pump motor replacement for most OEM applications. Always we will give you best heat pump fan motor quotes and heat pump fan motor cost!


CPMDJ CHANGZHOU CHANGPENG MOTOR CO.,LTD FAN MOTOR SUPPLIER FACTORY MANUFACTURERS SUPPLIERS -HVACFANMOTOR.COM


Heat pump fan motor manufacturing processes


CPMDJ has expent huge manual work, skill and years of experience to offer such a wide range of heat pump condenser fan motor,. Furthermore, Changzhou Changpeng Motor Co., Ltd has dipping equipment and drying kilns with shaft heights up to 800 mm, an in-house welding shop for flexible production of special components and custom welding designs, VPI dipping equipment and experienced specialists who truly understand their processes. This is how CPMDJ guarantee you the high quality, reliability and durability of heat pump fan motor.


1. STATOR CORE & ROTOR CORE


Stator core and rotor core for fan motor from heat pump condenser fan motor factory are built up of thin punched laminations of Silicon Steel, its stator laminations and rotor laminations are made by high speed punch machine which is invested by our own, and this plays a vital role in quality of ac fan motor. Over 10 Million press strokes per day allows output of over 100 Tons finished stator / rotor core laminations each day.

stator-core-and-rotor-core-for-fan-motor for air cooler motor factory manufacturers suppliers
motor-manufacturing-processes coil winding for air cooler motor factory manufacturers suppliers

2. COIL WINDING


Professional in the heat pump fan motor technology, team from heat pump fan motor supplier has extensive experience working with both copper and aluminium wire in various forms to provide coil winding solutions. Our broad customer base demands that we cannot only supply our standard range of china heat pump fan motor but also have the capability to provide custom solutions to solve challenges others can't. Contact your heat pump fan motor manufacturers  & suppliers now!

3. STATOR ASSEMBLY


Changpeng Motor Co., Ltd, china heat pump fan motor manufacturer, has specialized in heat pump motor technology, stator assembling can be solved by our own professonal assembly technique. It meets the requirements of series production in universal ac condenser fan motor, fan coil motor, hvac fan motor, condenser fan motor, cooler fan motor and other fan motor for ac unit. We develop and examine the entire process chain - from slot insulation to impregnating the stator and test.

motor-manufacturing-processes stator assembly for air cooler motor factory manufacturers suppliers
rotor-assembly-of-fan-motor from fan motor manufacturers suppliers factory

4. ROTOR ASSEMBLY


Rotor assembly is critical to fan motors for heat pumps in a variety of industries and applications, like condenser, air conditioner, evaporator etc. CPMDJ, provides high quality silicon steel material to create professional and high quality rotor assembly for all AC fan motors. A rotor assembly of ac fan motor normally includes a cylindrically shaped shaft, a processed rotor iron core and a bearing.

5. FAN MOTOR SHAFT


Motor shaft is the main component in electric fan motor. The size of the shaft significantly affects the torque in fan motor. In addition to the need to mount the rotor and a variety of attachments, like bearing, the model of the motor shaft is based on the cooling concept selection of the electric device. CPMDJ, china heat pump fan motor supplier & factory always offer you high quality shaft as air conditioner fan motor parts.

motor-shaft for air cooler motor factory manufacturers suppliers
fan motor test in fan motor manufacturer suppliers manufacturers - cpmdj

6. MOTOR ASSEMBLY & TESTING


Motor assembly includes assembling stator assembly, rotor assembly and end cover assembly with front cover. Testing heat pump fan motor from heat pump fan motor factory china, Changpeng Motor, cover the whole areas from stator insulation test, electronic integrated test bench for winding inserting, motor integrated test bench, motor performance test, noise test and appearance detection through to dynamometer for high performance fan  motor testing.


Why be our agency of fan motor?


As a prominent and leading heat pump fan motor factory & supplier from china, Changpeng motor is willing to open worldwide market by agency. Be our agency, you can extend your business fast for your fan motors at the competitive price, stable qualtity and excellent after service. Contact your heat pump fan motor factory to get heat pump fan motor replacement cost now!


be agency of china fan motor manfuacturers factory suppliers- changpeng motor


Testing a Fan Motor


Routine testing and type tests for heat pump fan motor

Process flow - routine, type, and system testing


The type test for asynchronous fan motors contains the following test steps:

  • Visual inspection

  • Resistance measurement of stator winding at ambient temperature

  • Insulation resistance measurement of stator winding and accessories

  • High-voltage check of stator winding

  • Rotational direction check

  • No-load check at partial voltage

  • Heating test under load

  • Measurement of load characteristic (25%, 50%, 75%, 100%, and 125% load)

  • Bearing heating check at no load and rated speed (only for friction-type bearing machines)

  • Check of fan motor accessories

  • Measurement of ripple voltage at rated voltage, rated frequency, and no-load speed

  • Creation of test report


In addition, the following optional tests are possible for asynchronous fan motors:


  • Measurement of no-load characteristic (recording of no-load current and no-load power at differing voltage)

  • Measurement of short circuit characteristic (recording of short circuit current and short circuit power at differing voltage)

  • Determination of polarization index of stator winding

  • Noise measurement (only at no load)

  • System/routine/type test of asynchronous fan motors



desert cooler fan motor test air cooler fan motor factory manufacturers suppliers


The routine test for asynchronous capacitor start fan motors contains the following test steps:

  • Visual inspection

  • Resistance measurement of stator winding at ambient temperature

  • Insulation resistance measurement of stator winding and accessories

  • High-voltage check of stator winding

  • Rotational direction check

  • No-load check at rated voltage

  • Short-circuit test at partial voltage

  • Check of fan motor accessories

  • Measurement of ripple voltage at rated voltage, rated frequency, and no-load speed

  • Creation of test report


In addition, the following optional tests are possible for asynchronous fan motors:


  • Measurement of no-load characteristic (recording of no-load current and no-load power at differing voltage)

  • Measurement of short circuit characteristic (recording of short circuit current and short circuit power at differing voltage)

  • Determination of polarization index of stator winding

  • Noise measurement (only at no load)

  • Type testing of asynchronous fan motors, with heat run


Heat pump Fan Motor Applications


CPMDJ offers you a complete line of HVAC motors, which is designed to operate in the harshest applications while reducing total cost of ownership. Our fan motors can be used in a variety of applications including universal fan motors, desert cooler fan motors,swamp cooler fan motors, evaporative cooler fan motors, air cooler fan motors, air conditioner fan motors, indoor fan motors, outdoor fan motors, window AC fan motors, condenser fan motors, general purpose fan motors, fan coil motors, heat pump fan motors , resin encapsulated motors and EC fan motors. We can also customize any fan motor version for specialized HVAC applications.


Heat pump fan motor factory in china - Changzhou Changpeng Motor Co., Ltd, is leading heat pump fan motor factory & manufacturer whose motors can be applied in various kinds of condenser air conditioning, commercial and residential.


replacing china heat pump fan motor factory replacement quotes wiring diagram cost


Service from Heat Pump Motor


Customized Heat Pump Fan Motor Solutions


At Changzhou Changpeng Motor Co. Ltd, always you can find a person who will response to your questions about the best heat pump motor solution for your application - quickly and competently. High-quality technical production and processing systems and the handling of qualified, experienced engineers and skilled workers guarantee you the highest motor standards. Additionally, all of our hvac heat pump condenser fan motor complies with current ISO standards.


24/7 After Service Availability


As a heat pump fan motor factory & manufacturer & supplier for HVAC applications, Changpeng Motor Co., Ltd offers our customers further important plus points except focusing on fan motor quality. One of our focal points is the fast delivery of heat pump fan motor replacement - including special designs. Not many air conditioner fan motor suppliers & manufacturers are able to claim that they can supply brand-new fan motors from their own ranges but also the OEM replacement motor of other brands within just a few days.

Flexible machining from our fan motor factory, manufacturer & supplier allows us to achieve exceptional response times. CPMDJ customers around the world appreciate our fast delivery service. Try us out! Team of experts from Changpeng Motor Co., Ltd will help you to find the right heat pump condenser fan motors for your HVAC application.


24-hour emergency hotline


CPMDJ provides a 24-hour hotline for our heat pump fan motor customers. You can use it to reach us around the clock in the case of a pressing operational disruption. With CPMDJ, you can depend on an heat pump fan motor factory & manufacturer & supplier who can supply heat pump motors with various voltages and outputs even outside normal working hours - all around the world.


service from changpeng motor for air conditioner motor air cooler motor fan coil motor fan motor
