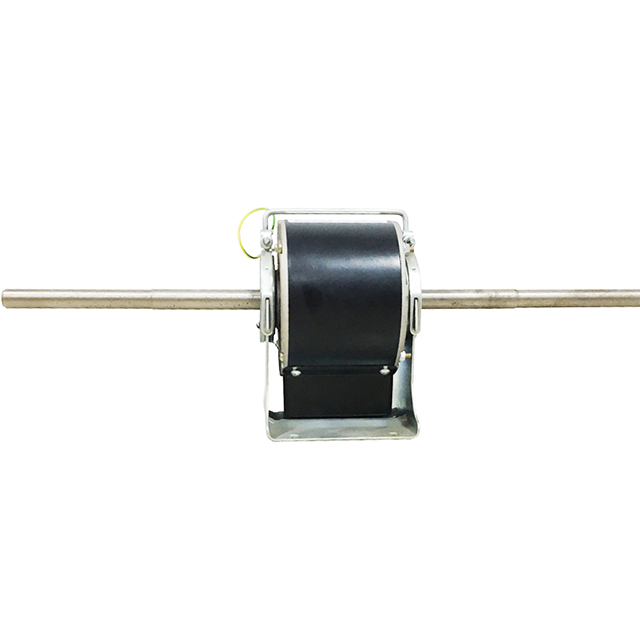

YSK139-350-4 350W Dual Shaft China Fan Motor Air Cooler Motor

Cooler Fan Motor Phase: 1
Air Cooler Motor Dia: 139mm
Thermal Protection: Automatic
OEM Direct Replacement Motor
Insulation Class of Air Cooler Motor: B
Maximum Ambient Temperature: 70° C
Voltage of Air Cooler Motors: 220-240V
Permanent Split Capacitor (PSC) fan motor
Ship Weight of Air Cooler Fan Motors: 6.5kgs
Speeds of Cooler Fan Motor: 1350RPM
Frequency of Evaporative Cooler Motor: 50Hz/ 60Hz
Cooler Fan Motor Manufacturer Model #:YSK139-350-4
  • YSK139-350-4

  • CPMDJ

Availability:
Quantity:

Product Description

evaporative air cooler fan motor manufacturers factory suppliers - chcangpeng motor hvacfanmotor.com


Swamp Cooler Motor with Double Shaft, Fan Coil Motor


Double shaft cooler fan motor, fan coil motor from Changzhou Changpeng Motor Co., Ltd, can be ventilated, totally enclosed or extruded shell body which is depending on customers' application and mounting arrangement.  Dual shaft cooler motor or fan coil motor is mostly mounted in a U shaped resilient cradle which sits onto a galvanized fan deck (metal tray). While some double shaft coil fan motor or cooler fan motor are without metal tray. However, with fan deck makes the removal of fan coil motor fast and replacement of double shaft air cooler motor simply. Benefit from our perfect fan motor design and good raw materials quality, hvac fan motors like air cooler motors, fan coil motors, air conditioning motors always keep stable quality and nice performance with low temperature rise.


Cooler Fan Motor Materials


1. NSK low noise high quality rolling bearing.

2. Brass terminals plug-in.

3. Shaft: double shaft, nickel plating treatment.

4. Enclosure: electrophoretic coating treatment.

5. Winding: 100% pure copper.


Dual Shaft Desert Cooler Motor Features


1. Steel housing, designed for cooling system, evaporative cooler etc, suit for hot weather environments.

2. High quality winding with excellent insulation and heat transmission properties.

3. Nice appearance, high starting torque, low starting current, smooth turning, low temperature rise, low vibration, low noise and great overload performance.

4. Saving Energy, higher efficiency.

5. Long life, Equipped with overheating protection, good Protection against Humidity.


Dual Shaft Air Cooler Motor Models


Model Voita Hz HP RPM(SPD) ROT CAP OEM Model
(MDF/VAC)
YSK120-37-4A 220-240 50/60 1/20HP 1350/3 SPD CCW-LE 3/370 KDE2E4711
YSK120-40-4A3 220-240 50/60 1/20HP 1100/3 SPD CW-LE 3/370
YSK120-50-4A2 220-240 50/60 1/15HP 1300/3 SPD CW-LE 3/400 7455GVA-A19U
YSK120-64-4A 220-240 50/60 1/12HP 1320/3 SPD CCW-LE 3/400 7455HVA-A75X
YSK120-90-4A5 220-240 50/60 1/8HP 1175/3 SPD CCW-LE 4/370 5KCP29DGE307S
YSK120-74-4A 220-240 50/60 1/10HP 1390/3 SPD CCW-LE 4/370 5KCP29DGE308BS
YSK120-185-4A 220-240 50/60 1/4HP 1625/3 SPD CCW-LE 7.5/370 5KCP29GG8071AS
YDK120-185-4A 220-240 50/60 1/4HP 1250RPM CCW-SE 5/440 5KCP394F1GEA017
YSK120-90-4A4 220-240 50/60 1/8HP 1300/3 SPD CW-LE 5/370 7455JVA-A18U
YSK120-120-4A 220-240 50/60 1/6HP 1300/4 SPD CW-LE 3/370 5KCP29FK5367T
YSK120-90-4A 220-240 50/60 1/8HP 1600/3 SPD CW-LE 4/370 ACE-809-544-53
YDK120-110-6A2 220-240 50/60 1/6HP 900RPM CCW-SE 5/370 7456KTS-A12S
YDK120-90-4A 208-230 50/60 1/8HP 1550RPM CW-SE 4/370 W.B.002852
YDK120-90-6A2 220-240 50/60 1/8HP 850RPM CW-SE 5/400 PM310802
YDK120-185-6A 220-240 50/60 1/4HP 950RPM CW-SE 5/400 PM310497
YDK120-185-6A2 220-240 50/60 1/4HP 950RPM CW-SE 5/400 PM3104186
YDK120-75-6A 220-240 50/60 1/10HP 850RPM CCW-SE 4/370 GFD FR B42
YDK120-185-4A2 220-240 50/60 1/4HP 1050/3 SPD CW-SE 10/370 5KCP29MK6641S
YDK120-150-6A 220-240 50/60 1/5HP 840/3 SPD CW-SE 6/370 5KCP29KK4571S
YDK120-90-6 220 50/60 1/10HP 890/3 SPD CW-SE 5/370 5KCP29GK6103S
YSK140-120-6A2 220-230 50/60 1/6HP 1000/2SPD
5/370 GE 5KCP39DGM511T
YSK140-120-6A5 220-230 50/60 1/6HP 1095/3SPD
5/370 GE 5KCP39DGM004T
YSK140-120-6A7 220-230 50/60 1/6HP 1050/3SPD
5/370 EMERSON K55HXPKG-5158
YSK140-150-6A3 220-230 50/60 1//5HP 1050/3SPD
5/370 GE 5KCP39HGS635S
YSK140-150-6A2 220-230 50/60 1//5HP 1075/3SPD
5/370 GE 5KCP39FGM672S
YSK140-150-6A4 220-230 50/60 1//5HP 1115/3SPD
5/370 A.O.SMITH F48UO1A30
YSK140-150-6A17 220-230 50/60 1/5HP 115/3SPD
5/370 GE 5KCP39FGM4440
YSK140-245-6A2 220-230 50/60 1/3HP 1075/3SPD
5/370 GE 5KCP39HGM307AT
YSK140-120-4A3 220-230 50/60 1/6HP 1050/3SPD
5/370 A.O.SMITH F48CS6MA14
YSK140-150-4A 220-230 50/60 1/5HP 1075/3SPD
5/370 PM410538
YSK140-185-4A7 220-230 50/60 1/4HP 1100/3SPD
5/370 PM4104167
YSK140-245-4A3 220-230 50/60 1/3HP 1100/3SPD
7.5/370 EMERSON K55HXSPK-3135
YSK140-375-4A5 220-230 50/60 1/2HP 1200/3SPD
7.5/370 D772
YSK140-550-4A1 220-230 50/60 3/4HP 1200/3SPD
7.5/370 D778
YSK120-120-6A 220-240 50/60 1/6HP 1100/3SPD CCW/LE 10/370 5KCP29NGE160BS
YSK120-150-4A 220-240 50/60 1//5HP 1320/3 SPD CW-LE 4/450
YSK120-200-4A 115 50/60 1/4HP 1600/2 SPD CW-LE 12/370 A2954KB010
YDK120/32-4-125 220-240 50/60 1/8HP 1550RPM

F48HXFMR-2790
YDK120-110-6A 220-240 50/60 1/7HP 900RPM CW-LE 5/400 YDK-110S63520-01
YDK120-150-6A 220-240 50/60 1/5HP 925/3 SPD CE-SE 7.5/370 5KCP29KK4878AS



Custom Cooler Fan Motor Solutions


At Changzhou Changpeng Motor Co.,Ltd, you always have a personal contact who will be happy to advise you and answer your questions about the best electric fan motor solution for your application - quickly and competently. High-quality technical production and processing systems and the handling of qualified, experienced engineers and skilled workers guarantee you the highest motor standards. Additionally, all of our AC fan motors and EC motors comply with current ISO standards.


Why Choose CPMDJ for Air Cooler Motors?


1. Cooler Motor Bearing: NSK low noise high quality rolling bearing.

2. Plug-in brass terminals for air cooler fan motor.

3. Air Cooler Motor Shaft: single shaft with nickel plating treatment.

4. Enclosure for swamp cooler motor surface: electrophoretic coating treatment.

5. Air cooler motor winding: 100% pure copper or aluminum as your request.

Fan Motor Manufacturers


Cooling fan motor manufacturers-Changpeng Motor


As a leading fan motor manufacturer, we put our customers, their individual requirements and the quality of fan motors at the heart of our daily work.


Changpeng Motors has been producing fan motors since 2005. Many industrial equipment operators and global fan motor wholesalers, suppliers, distributors and shop owners from the HVAC industry trust the proven quality of CPMDJ fan motors. We cast millions of stators and rotors and work with companies of all sizes. In addition, Changpeng Motors has also opened a centrifugal fan factory in 2019.

CPMDJ CHANGZHOU CHANGPENG MOTOR CO.,LTD FAN MOTOR SUPPLIER FACTORY MANUFACTURERS SUPPLIERS -HVACFANMOTOR.COM

Cooler fan motor manufacturing Processes


It takes a lot of manual work, skill and years of experience to offer such a wide range of cooler fan motors. In addition, Changpeng Motors has dipping equipment and drying kilns with shaft heights up to 800 mm, an in-house welding shop for flexible production of special components and custom welding designs, VPI dipping equipment and experienced specialists who truly understand their processes. This is how we guarantee the high quality, reliability and durability of our air cooler fan motors.


1. STATOR CORE & ROTOR CORE


Stator core and rotor core for fan motor from air cooler motor manufacturers are built up of thin punched laminations of Silicon Steel, its stator laminations and rotor laminations are made by high speed punch machine which is invested by our own, and this plays a vital role in quality of ac fan motor. Over 10 Million press strokes per day allows output of over 100 Tons finished stator / rotor core laminations each day.

stator-core-and-rotor-core-for-fan-motor for air cooler motor factory manufacturers suppliers
motor-manufacturing-processes coil winding for air cooler motor factory manufacturers suppliers

2. COIL WINDING


Professional in the evaporative air cooler fan motor technology, team from air cooler motor manufacturers has extensive experience working with both copper and aluminium wire in various forms to provide coil winding solutions. Our broad customer base demands that we cannot only supply our standard range of swamp air cooler fan motor but also have the capability to provide custom solutions to solve challenges others can't. Contact your air cooler motor manufacturers now!

3. STATOR ASSEMBLY


Changpeng Motor, air cooler motor manufacturers / air cooler motor suppliers, has specialized in the fan motor technology, stator assembling can be solved by our own professonal assembly technique. It meets the requirements of series production in ac fan motor, condenser fan motor, evaporator fan motor and other fan motor for ac unit. We develop and examine the entire process chain - from slot insulation to impregnating the stator and test.

motor-manufacturing-processes stator assembly for air cooler motor factory manufacturers suppliers
rotor-assembly-of-fan-motor from fan motor manufacturers suppliers factory

4. ROTOR ASSEMBLY


Rotor assembly is critical to evaporaitve air cooler fan motor in a variety of industries and applications, like condenser, air conditioner, evaporator etc. CPMDJ, air cooler motor manufacturers / air cooler motor suppliers provides high quality silicon steel material to create professional and high quality rotor assembly for all electric fan motors. A rotor assembly of ac fan motor normally includes a cylindrically shaped shaft, a processed rotor iron core and a bearing.

5. COOLER FAN MOTOR SHAFT


Motor shaft is the main component in electric fan motor. The size of the shaft significantly affects the torque in fan motor. In addition to the need to mount the rotor and a variety of attachments, like bearing, the model of the motor shaft is based on the cooling concept selection of the electric device. CPMDJ, air cooler motor manufacturers & air cooler motor suppliers always offer you high quality shaft as evaporative air cooler fan motor parts/swamp air cooler fan motor parts.

motor-shaft for air cooler motor factory manufacturers suppliers
fan motor test in fan motor manufacturer suppliers manufacturers - cpmdj

6. COOLER MOTOR ASSEMBLY & TESTING


Motor assembly includes assembling stator assembly, rotor assembly and end cover assembly with front cover. Testing of air cooler fan motor from air cooler motor suppliers,Changpeng Motor, cover the whole areas from stator insulation test, electronic integrated test bench for winding inserting, motor integrated test bench, motor performance test, noise test and appearance detection through to dynamometer for high performance fan  motor testing.


Cooling fan motors meet the most demanding quality requirements


As a manufacturer of AC fan motors, including air cooler motors, air conditioner fan motors, indoor fan motors, outdoor fan motors, window AC fan motors, condenser fan motors, general purpose fan motors, fan coil motors, heat pump fan motors, resin Packing motors, EC fan motors, AC centrifugal fans and EC centrifugal fans, we quickly and reliably meet your custom requirements. You can always rely on the proven CPMDJ quality. High-quality technical production and processing plants, as well as the handling of qualified and experienced engineers and specialists ensure the highest standards of air cooler motors. To maintain quality standards, Changpeng Motors has introduced a quality management system.


Needless to say, our cooling fan motors meet the requirements of international standards and state-of-the-art technology. This is how we ensure global use and durability of evaporative cooler fan motors.

Be Agency of Fan Motor Factory

Why be our agency of fan motor?


As a prominent and leading fan motor manufacturers & suppliers in China, Changpeng motor is willing to open worldwide market by agency. Be our agency, you can extend your business fast for your fan motors at the competitive price, stable qualtity and excellent after service. Contact your ac fan motor factory now to get hvac fan motor price Now!


be agency of china fan motor manfuacturers factory suppliers- changpeng motor

Air Cooler Motor Test & Applications

Routine testing and type tests for all fan motor


As a independent medium-sized company, we carry out routine testing and type tests on all fan motors of single phase and three phase machines for you - with the utmost care and quality. This means that our test facility is used for the routine testing of all customer's orders of fan motors.

Process flow - routine, type, and system testing

The routine test for asynchronous capacitor start fan motors contains the following test steps:

  • Visual inspection

  • Resistance measurement of stator winding at ambient temperature

  • Insulation resistance measurement of stator winding and accessories

  • High-voltage check of stator winding

  • Rotational direction check

  • No-load check at rated voltage

  • Short-circuit test at partial voltage

  • Check of fan motor accessories

  • Measurement of ripple voltage at rated voltage, rated frequency, and no-load speed

  • Creation of test report


In addition, the following optional tests are possible for asynchronous fan motors:


  • Measurement of no-load characteristic (recording of no-load current and no-load power at differing voltage)

  • Measurement of short circuit characteristic (recording of short circuit current and short circuit power at differing voltage)

  • Determination of polarization index of stator winding

  • Noise measurement (only at no load)

  • Type testing of asynchronous fan motors, with heat run


desert cooler fan motor test air cooler fan motor factory manufacturers suppliers


The type test for asynchronous fan motors contains the following test steps:

  • Visual inspection

  • Resistance measurement of stator winding at ambient temperature

  • Insulation resistance measurement of stator winding and accessories

  • High-voltage check of stator winding

  • Rotational direction check

  • No-load check at partial voltage

  • Heating test under load

  • Measurement of load characteristic (25%, 50%, 75%, 100%, and 125% load)

  • Bearing heating check at no load and rated speed (only for friction-type bearing machines)

  • Check of fan motor accessories

  • Measurement of ripple voltage at rated voltage, rated frequency, and no-load speed

  • Creation of test report


In addition, the following optional tests are possible for asynchronous fan motors:

  • Measurement of no-load characteristic (recording of no-load current and no-load power at differing voltage)

  • Measurement of short circuit characteristic (recording of short circuit current and short circuit power at differing voltage)

  • Determination of polarization index of stator winding

  • Noise measurement (only at no load)

  • System/routine/type test of asynchronous fan motors


Common Cooler Fan Motor Applications


Changpeng Motor offers a complete line of HVAC motors designed to operate in the harshest applications while reducing total cost of ownership. Our fan motors can be used in a variety of applications including air cooler fan motors, air conditioner fan motors, indoor fan motors, outdoor fan motors, window AC fan motors, condenser fan motors, general purpose fan motors, fan coil motors, heat pump fan motors , resin encapsulated motors and EC fan motors. We can also customize any fan motor version for specialized HVAC applications.


1. Cooler fan motor from Changpeng Motor, the fan motor manufacturers & suppliers, can be applied in various kinds of air coolers, evaporative air coolers, desert air coolers and swamp coolers, commercial and residential.

2. Air conditioning system.


Evaporative-desert-swamp-Air-Cooler-Air-Conditioner-Humidifier-Water-Cooler use cooler fan motor suppliers factory manufacturers
