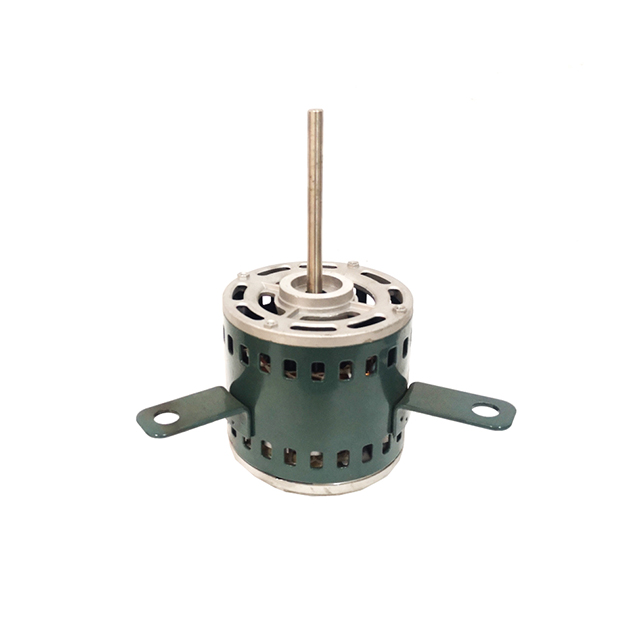

OEM Furance Fan Motor Blower Motor Universal 1/8 hp Condenser Fan Motor

condenser fan motor
Thermal Protection: Automatic
ac condenser fan motor Phase: 1
condenser fan motor replacement Dia: 139mm
Maximum Ambient Temperature: 70° C
Insulation Class of universal condenser fan motor: B/F
Permanent Split Capacitor (PSC) hvac condenser fan motor
Voltage of air conditioning condenser fan motor: 208-240V
Frequency of air conditioner condenser fan motor: 50Hz/ 60Hz
  • YDK120-90-4

  • CPMDJ

Availability:
Quantity:

Product Description

hvac air conditioner ac universal condenser fan motor factory supplier manufacturer replacement price cost



Direct drive blower HVAC AC motors are kinds of Permanent split capacitor (PSC) condenser fan motors with a capacitor for starting. Air conditioner condenser fan motor starts with capacitor can decrease power consume and make the fan motor more energy efficient. Blower motor turns the blower wheel or fan blade mounted directly to the motor shaft. AC condenser fan motor from Changzhou Changpeng Motor Co., Ltd provides quiet operation with less noise and vibration. Condenser fan motor replacements are commonly used to replace condenser fan motor. CPMDJ OEM condenser fan motor replacement are with the same specifications to ensure that they will run smooth, soft and start-up with no loss in performance in fans, blowers, and other compatible HVAC equipment.


When need direct drive blower fan motor, always you can trust us, Changhou Changpeng Motor Co., Ltd whose hvac condenser fan motor will meet your specifications, and more. CPMDJ keeps manufacturing air conditioner condenser fan motor which deliver high performance,reliaility & efficiency. You can trust us who will work with you together to find the best solution of hvac condenser fan motor to meet your requirments  & needs by applying our experience and know-how.


We knows that when CPMDJ comes through universal condenser fan motor for any of our customers, they are more confident in our abilities. If need design a condenser fan motor replacement for your specific application or request, you can specify CPMDJ with confidence. Changhou Changpeng Motor Co., Ltd is always ready to tackle even the most challenging applications for your air conditioning condenser fan motor.


Condenser Fan Motor Parameter



Item Direct Drive Blower Motor
Motor Application HVAC/R
Motor Sub Application Direct Drive Fan/Blower
Motor Design Permanent Split Capacitor
Motor Enclosure Design Open Air-Over
HP 1/8
Nameplate RPM 825/1075
Voltage 115/208-230
Hz 50/60
Phase 1
Frame 42
Max. Ambient Temp. 60 Degrees C
Ins. Class B
Duty Continuous
No. of Speeds 3
Motor Mounting Position All Angle
Motor Bearings Ball bearing
Motor Thermal Protection Auto
Motor Shaft Rotation CW/CCW
Motor Shaft Design Flat
Application Blowers, Fans and Air Circulators



Furnace Blower Motor Features


* all universal condenser fan motor from CPMDJ have at least a 240 day warranty from the date of delivery.

* all ac condenser fan motor from CPMDJ are high quality HVAC condenser fan motor replacement parts.

* any brand displayed in the listing other than CPMDJ is for identification purposes only. The air conditioner condenser fan motors shown in this listing are from CPMDJ factory & manufacturer as condenser fan motor replacement parts.


* if you need any assistance identifying if this part will work in your hvac system, feel free to send us the model # and serial # ( shown on the nameplate) of your ac condenser fan motor and we will do the research and get back to you asap!


*You can contact us by sending message via this website to get the condenser fan motor price.


Condenser Fan motor for Sale


As a leading air conditioning condenser fan motor factory & supplier, all our condenser fan motor for sale as well as other fan motor models. CPMDJ offers various HVAC fan motor models for different applications, like ceiling type air conditoner motors, window type air conditioner motors, universal ac condenser fan  motors, air cooler motors, air conditioner fan motors, indoor fan motors, outdoor fan motors, condenser fan motors, general purpose fan motors, fan coil motors, heat pump fan motors, EC fan motors, AC centrifugal fans and EC centrifugal fans.



HVAC Condenser Fan Motor Structure


Air conditioner condenser fan motor is not that complicated, referring to its structure. Condenser fan motor from CPMDJ consist of a stator and contain a rotating rotor inside, which is surrounded by pole-pieces. All our universal fan motors comply with the appropriate International Standards as far as: ac condenser fan motor output, hvac condenser fan motor performance and dimensions of condenser fan motor replacement


These condenser fan motor types are condenser fan motor replacement of GE condenser fan motor, trane condenser fan motor,goodman condenser fan motor, carrier condenser fan motor, lennox condenser fan motor, rheem condenser fan motor, a.o. smith condenser fan motor, century condenser fan motor, emerson condenser fan motor, amana condenser fan motor, economaster condenser fan motor, nordyne condenser fan motor, dayton condenser fan motor, ao smith condenser fan motor, protech condenser fan motor, genteq condenser fan motor, amana condenser fan motor, mars condenser fan motor, kinds of direct drive blower motor, 1/2 hp, 1/3 hp, 1/4 hp, 208-230 volt, 825 rpm, 1075 rpm, 60Hz, 50Hz, from CPMDJ ac condenser fan motor factory & supplier & manufacturer.


For universal condenser fan motor, different powers and rpm are available, such as 1 4 hp condenser fan motor,1 5 horsepower condenser fan motor, 1 3 hp condenser fan motor,1 5 hp condenser fan motor, 1 6 hp condenser fan motor, 1/4 hp condenser fan motor, 1 4 hp 825 rpm condenser fan motor, 1 12 hp condenser fan motor, 1/3 hp condenser fan motor, 1 8 hp condenser fan motor, 1 15 hp condenser fan motor, 1/10 hp condenser fan motor, 1/2 hp condenser fan motor, 1 4 hp 825 rpm condenser fan, 825 rpm condenser fan motor, 1 4 hp 1075 rpm condenser fan motor, condenser fan motor, 1/4 hp, 1075 rpm, 60hz, 1/4 hp 825 rpm condenser fan motor,condenser fan motor 1 3 hp 1075 rpm 60hz, 1 4 hp condenser fan motor 825 rpm, 1/8 hp 825 rpm condenser fan motor, condenser fan motor 1 4 hp 825 rpm, 1/3 hp 1075 rpm condenser fan motor, condenser fan motor 825 rpm, condenser fan motor 1 5 hp 1075 rpm, 1/4 hp condenser fan motor 1100 rpm and so on.

`It goes without saying, our hvac condenser fan motor meets the requirements of international standards and state-of-the-art technology. Want to know ac condenser fan motor cost or condenser fan motor price? Contact CPMDJ now!


Condenser Fan Motor Factory & Supplier


AC Condenser Fan Motor Factory & Supplier


If you are seeking for condenser fan motor factory & suppliers china, you have come to the right universal condenser fan motor website. OR, if you want to know condenser fan motor wiring, ac  condenser fan motor price / cost,even how to replace fan motor in hvac condenser, how to test condenser fan motor, please just feel free to contact CPMDJ, the universal condenser fan motor supplier china. Refer to AC universal condenser fan motor, our condenser fan motors are asynchronous ac fan motors, on the other hand, is in a separate AC motor class because of the differences in design and operational characteristics. Changzhou Changpeng Motor Co., Ltd offers a robust catalog of air conditioner condenser fan motors made by our fan motor factory & manufacturers that can be tailored to your exact specifications of hvac condenser fan motors. Our ac condenser fan motors are much popular in the market of Saudi Arabia, UAE, Dubai, Bahrain, Iraq, Sudan, Iran, Kuwait, Jordan, Oman, Yemen, etc.


CPMDJ CHANGZHOU CHANGPENG MOTOR CO.,LTD FAN MOTOR SUPPLIER FACTORY MANUFACTURERS SUPPLIERS -HVACFANMOTOR.COM


Condenser fan motor manufacturing processes


CPMDJ has expent huge manual work, skill and years of experience to offer such a wide range of universal ac condenser fan motor,. Furthermore, Changzhou Changpeng Motor Co., Ltd has dipping equipment and drying kilns with shaft heights up to 800 mm, an in-house welding shop for flexible production of special components and custom welding designs, VPI dipping equipment and experienced specialists who truly understand their processes. This is how CPMDJ guarantee you the high quality, reliability and durability of condenser fan motor.


1. STATOR CORE & ROTOR CORE


Stator core and rotor core for fan motor from air conditioner condenser fan motor factory are built up of thin punched laminations of Silicon Steel, its stator laminations and rotor laminations are made by high speed punch machine which is invested by our own, and this plays a vital role in quality of ac fan motor. Over 10 Million press strokes per day allows output of over 100 Tons finished stator / rotor core laminations each day.

stator-core-and-rotor-core-for-fan-motor for air cooler motor factory manufacturers suppliers
motor-manufacturing-processes coil winding for air cooler motor factory manufacturers suppliers

2. COIL WINDING


Professional in the ac condenser fan motor technology, team from condenser fan motor supplier has extensive experience working with both copper and aluminium wire in various forms to provide coil winding solutions. Our broad customer base demands that we cannot only supply our standard range of air conditioner condenser fan motor but also have the capability to provide custom solutions to solve challenges others can't. Contact your fan motor manufacturers  & suppliers now!

3. STATOR ASSEMBLY


Changpeng Motor Co., Ltd, china fan motor manufacturer, has specialized in codenser fan motor technology, stator assembling can be solved by our own professonal assembly technique. It meets the requirements of series production in universal ac condenser fan motor, fan coil motor, hvac fan motor, condenser fan motor, cooler fan motor and other fan motor for ac unit. We develop and examine the entire process chain - from slot insulation to impregnating the stator and test.

motor-manufacturing-processes stator assembly for air cooler motor factory manufacturers suppliers
rotor-assembly-of-fan-motor from fan motor manufacturers suppliers factory

4. ROTOR ASSEMBLY


Rotor assembly is critical to condenser fan motors for air conditioners in a variety of industries and applications, like condenser, air conditioner, evaporator etc. CPMDJ, provides high quality silicon steel material to create professional and high quality rotor assembly for all AC fan motors. A rotor assembly of ac fan motor normally includes a cylindrically shaped shaft, a processed rotor iron core and a bearing.

5. FAN MOTOR SHAFT


Motor shaft is the main component in electric fan motor. The size of the shaft significantly affects the torque in fan motor. In addition to the need to mount the rotor and a variety of attachments, like bearing, the model of the motor shaft is based on the cooling concept selection of the electric device. CPMDJ, china ac universal fan motor supplier & factory always offer you high quality shaft as air conditioner fan motor parts.

motor-shaft for air cooler motor factory manufacturers suppliers
fan motor test in fan motor manufacturer suppliers manufacturers - cpmdj

6. MOTOR ASSEMBLY & TESTING


Motor assembly includes assembling stator assembly, rotor assembly and end cover assembly with front cover. Testing of air conditioner condenser fan motor from condnesr fan motor suppliers china, Changpeng Motor, cover the whole areas from stator insulation test, electronic integrated test bench for winding inserting, motor integrated test bench, motor performance test, noise test and appearance detection through to dynamometer for high performance fan  motor testing.


Why be our agency of fan motor?


As a prominent and leading condenser fan motor suppliers & factory from china, Changpeng motor is willing to open worldwide market by agency. Be our agency, you can extend your business fast for your fan motors at the competitive price, stable qualtity and excellent after service. Contact your condenser fan motor factory to get ac condenser fan motor cost now!


be agency of china fan motor manfuacturers factory suppliers- changpeng motor


Condenser Fan Motor Test & Applications


Routine testing and type tests for all AC fan motor

Process flow - routine, type, and system testing


The type test for asynchronous fan motors contains the following test steps:

  • Visual inspection

  • Resistance measurement of stator winding at ambient temperature

  • Insulation resistance measurement of stator winding and accessories

  • High-voltage check of stator winding

  • Rotational direction check

  • No-load check at partial voltage

  • Heating test under load

  • Measurement of load characteristic (25%, 50%, 75%, 100%, and 125% load)

  • Bearing heating check at no load and rated speed (only for friction-type bearing machines)

  • Check of fan motor accessories

  • Measurement of ripple voltage at rated voltage, rated frequency, and no-load speed

  • Creation of test report


In addition, the following optional tests are possible for asynchronous fan motors:


  • Measurement of no-load characteristic (recording of no-load current and no-load power at differing voltage)

  • Measurement of short circuit characteristic (recording of short circuit current and short circuit power at differing voltage)

  • Determination of polarization index of stator winding

  • Noise measurement (only at no load)

  • System/routine/type test of asynchronous fan motors



desert cooler fan motor test air cooler fan motor factory manufacturers suppliers


The routine test for asynchronous capacitor start fan motors contains the following test steps:

  • Visual inspection

  • Resistance measurement of stator winding at ambient temperature

  • Insulation resistance measurement of stator winding and accessories

  • High-voltage check of stator winding

  • Rotational direction check

  • No-load check at rated voltage

  • Short-circuit test at partial voltage

  • Check of fan motor accessories

  • Measurement of ripple voltage at rated voltage, rated frequency, and no-load speed

  • Creation of test report


In addition, the following optional tests are possible for asynchronous fan motors:


  • Measurement of no-load characteristic (recording of no-load current and no-load power at differing voltage)

  • Measurement of short circuit characteristic (recording of short circuit current and short circuit power at differing voltage)

  • Determination of polarization index of stator winding

  • Noise measurement (only at no load)

  • Type testing of asynchronous fan motors, with heat run


Condenser Fan Motor Applications


CPMDJ offers you a complete line of HVAC motors, which is designed to operate in the harshest applications while reducing total cost of ownership. Our fan motors can be used in a variety of applications including universal fan motors, desert cooler fan motors,swamp cooler fan motors, evaporative cooler fan motors, air cooler fan motors, air conditioner fan motors, indoor fan motors, outdoor fan motors, window AC fan motors, condenser fan motors, general purpose fan motors, fan coil motors, heat pump fan motors , resin encapsulated motors and EC fan motors. We can also customize any fan motor version for specialized HVAC applications.


Condenser fan motor supplier in china - Changzhou Changpeng Motor Co., Ltd, is leading the fan motor factory & manufacturers whose motors can be applied in various kinds of condenser air conditioning, commercial and residential.


replacing air conditioner ac universal condensor fan motor replacement cost price wiring trouble shooting over heating factory supplier

Service from Condenser Fan Motor Supplier


Customized Condenser Fan Motor Solutions


At Changzhou Changpeng Motor Co. Ltd, always you can find a person who will response to your questions about the best ac condenser motor solution for your application - quickly and competently. High-quality technical production and processing systems and the handling of qualified, experienced engineers and skilled workers guarantee you the highest motor standards. Additionally, all of our hvac condenser fan motor complies with current ISO standards.


24/7 After Service Availability


As a fan motor factory & manufacturer & supplier for HVAC applications, Changpeng Motor Co., Ltd offers our customers further important plus points except focusing on fan motor quality. One of our focal points is the fast delivery of condenser fan motor replacement - including special designs. Not many air conditioner fan motor suppliers & manufacturers are able to claim that they can supply brand-new fan motors from their own ranges but also the OEM replacement motor of other brands within just a few days.

Flexible machining from our fan motor factory, manufacturer & supplier allows us to achieve exceptional response times. CPMDJ customers around the world appreciate our fast delivery service. Try us out! Team of experts from Changpeng Motor Co., Ltd will help you to find the right air conditioner condenser fan motors for your HVAC application.


24-hour emergency hotline


CPMDJ provides a 24-hour hotline for our universal condenser fan motor customers. You can use it to reach us around the clock in the case of a pressing operational disruption. With CPMDJ, you can depend on an condenser fan motor factory & manufacturer & supplier who can supply condenser fan motors with various voltages and outputs even outside normal working hours - all around the world.


service from changpeng motor for air conditioner motor air cooler motor fan coil motor fan motor
