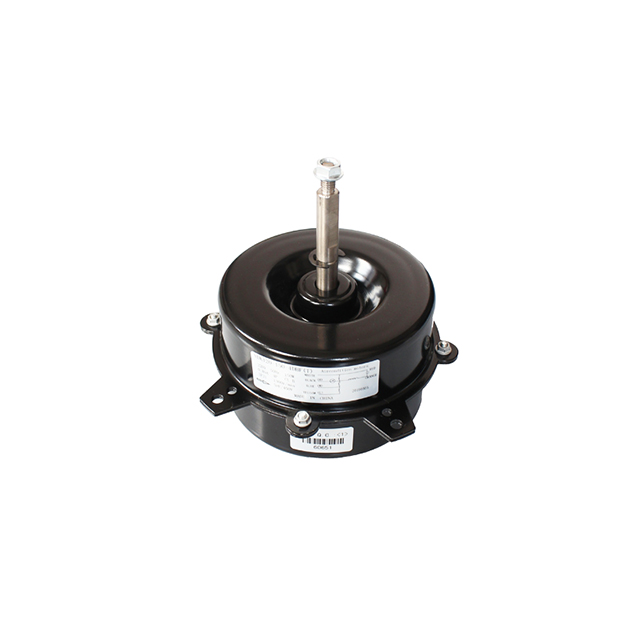

YDK120-150-4 Condenser Outdoor Fan Motor General Purpose Motor

Outdoor Fan Motor
Thermal Protection: Automatic
Outdoor ac fan motor Phase: 1
Maximum Ambient Temperature: 70° C
Outdoor fan motor for ac Dia:95/120/140mm
Insulation Class of outdoor ac unit fan motor: B
Frequency of air con outdoor fan motor: 50Hz/ 60Hz
Voltage of outdoor condenser fan motor: 208-240V
Permanent Split Capacitor (PSC) ac outdoor unit fan motor

  • YDK120-150-4

  • CPMDJ

Availability:
Quantity:

Product Description

outdoor fan motor factory air conditioner fan motor manufacturers hvac motor suppliers





Single phase split ac outdoor unit fan motor is available in OPAO (Open Air Over) and TEAO (Totally Enclosed Air Over) designs. This is specifically designed for use on HVAC air conditioning outdoor unit. High full load efficiency for reduced operating costs, no mechanical switch to wear, no noise and vibration from regeneration. This outdoor fan motor has a Class B/F insulation, is  less sensitive to voltage variations and comes with a soft-start. Thermostats are standard.


Outdoor ac unit fan motors from Changzhou Changpeng Motor Co., Ltd offer best-in-class designs that enhance safety and are built to perform in the demanding environments of HVAC applications. Designed with features for rugged conditions, our outdoor condenser fan motors provide the needed reliability to keep air conditioning operations up. We offer a full line of single phase ac outdoor fan motors for use in a wide variety of HVAC applications. We also have the capability of building custom designs for specialized applications.


Outdoor ac fan motor, a kind of asynchronous single phase HVAC fan motor, use specially designed frame construction to provide a highly efficient, low temperature ac outdoor fan motor performance.

Our outdoor fan motor for ac can be used as perfect outdoor ac fan motor replacement, which is proven to provide a high level of performance inside a air conditioner's hot environment. Our outdoor ac unit fan motors reliably increase uptime and decrease maintenance of critical HVAC applications due to our perfect motor design and high quality. CPMDJ's outdoor condenser fan motors offer the highest level of bearing protection in the industry with a long time warranty.



Outdoor Unit Fan Motor Type



Model Voltage(V) Frequency Output Speed Capacitor OEM model
YDK80/24-4-20S 220-240 50 1/35HP 1300/3 SPD 1.8/450
YDK80/30-4-30 220-240 50 1/25HP 1200/3 SPD 1.8/450
YDK80/50-4-63A 230 50 1/12HP 1350
71731533
YDK80-25-4A 220-240 50 25W 1200/3 SPD 1.5/450 1201103114
YDK80-30-4A 220-240 50 30W 1200/3 SPD 2/450 1201103112
YDK80-45-4A 115 60 1/25HP 1100/3 SPD 5.0/370
YDK80-6-4A 230 50 6W 1100 1.0/450
YDK80-6-4A 115 60 6KW 1100 2.0/450
YSK80-30-4A 230 50 1/25HP 1200/3 SPD 2.0/450
YSK80-30-4A2 220 60 1/25HP 1200/3 SPD 2.0/450
YSK80-30-4A3 115 60 1/25HP 1200/3 SPD 6.0/450
YSK80-16-4A 220-240 50/60 16W 1300/1550 2/370 KJF4Y501A
YDK80/30-4-25 115 60 1/30HP 1500/2 SPD
D181
YDK80/37-4-37 115/230 60 1/25HP 1550
D1164
YSK80/50-4-75 115 60 1/10-1/30HP 1500/2 SPD
D325
YDK95-35-6 208-230 50/60 35 880 3
YDK95-45-6 208-230 50/60 45 880 3.5
YDK120-60-6 208-230 50/60 60 850 4
YDK139-150-6 208-230 50/60 150 900 10
YDK139-250-6 208-230 50/60 250 900 10
YDK83-20-4 208-230 50/60 20 1300 2
YDK93-16-4 208-230 50/60 16 1300 1.5
YDK93-25-4 208-230 50/60 25 1300 2.5
YDK120-30-8 208-230 50/60 30 520 3
YDK120-50-8 208-230 50/60 50 520 4
YDK120-74-4A 220-240 50 74 1390/3 SPD 4
YDK120-75-6A 220-240 50 75 850 4
YDK120-90-4A 208-230 60 90 1550 4
YDK120-90-6 220 50 90 890/3 SPD 5
YDK120-90-6A2 220-240 50 90 850 5
YDK120-110-6A2 220-240 50 110 900 5
YDK120-150-6A 220-240 50 150 840/3 SPD 6
YDK120-185-4A 220-240 50 185 1250 5
YDK120-185-4A2 220-240 50 185 1050/3 SPD 10
YDK120-185-6A 220-240 60 185 950 5
YDK120-185-6A2 220-240 50 185 950 5
YDK139-100-10 208-230 50/60 100 480 6


Changzhou Changpeng Motor Co., Ltd offers definite purpose HVAC motors in ventilation, air-over, condenser, fan and blower motor designs. Outdoor fan motor is a kind of HVAC fan motors. Most of  Air-over outdoor ac fan motors (TEAO) are foot mounted. Designed specifically for use on air conditioning outdodor units. Every CPMDJ's definite purpose outdoor unit fan motor is designed to keep air handling systems running smoothly, quietly and efficiently – which means better system reliability and performance.


Air Conditioner Motor Suppliers & Manufacturers


As outdoor unit fan motor factory & manufacturers & suppliers, CPMDJ's outdoor condenser fan motors are highly efficient HVAC motor. Outdoor ac unit fan motors are available as stand-alone outdoor fan motor unit, designed to be paired with a variable types of air conditioning. Outdoor fan motor for ac is optimized for energy management and sustainability and ideal for air conditioning fans, blowers, HVAC systems and other applications. Outdoor ac fan motors from Changzhou Changpeng Motor Co., Ltd offers a LOW TEMPERATURE RISE designs with low noise and low vibration. These outdoor fan motors air conditioner are specifically designed for use in the air conditioner outdoor units. Outdoor unit fan motor have bearing protection installed and are a direct replacement for most OEM applications.


AC Outdoor Fan Motor Manufacturers & Factory & Suppliers


If you are seeking for outdoor fan motor manufacturers & suppliers china, you have come to the right air conditioner outdoor unit fan motor website. OR, if you want to know outdoor fan motor air conditioner price, please just feel free to contact CPMDJ, the fan motor supplier china. Refer to split AC outdoor fan motor type, our fan motors are asynchronous universal fan motors, on the other hand, is in a separate AC motor class because of the differences in design and operational characteristics. Changzhou Changpeng Motor Co., Ltd offers a robust catalog of outdoor unit fan motor made by our fan motor factory & manufacturers that can be tailored to your exact specifications of hvac fan motors. Our motor for outdoor fan is much popular in the market of Saudi Arabia, UAE, Dubai, Bahrain, Iraq, Sudan, Iran, Kuwait, Jordan, Oman, Yemen, etc.


CPMDJ CHANGZHOU CHANGPENG MOTOR CO.,LTD FAN MOTOR SUPPLIER FACTORY MANUFACTURERS SUPPLIERS -HVACFANMOTOR.COM


Outdoor fan motor manufacturing processes


To offer such a wide range of ac outdoor unit fan motor, CPMDJ expent huge manual work, skill and years of experience. Furthermore, Changzhou Changpeng Motor Co., Ltd has dipping equipment and drying kilns with shaft heights up to 800 mm, an in-house welding shop for flexible production of special components and custom welding designs, VPI dipping equipment and experienced specialists who truly understand their processes. This is how CPMDJ guarantee you the high quality, reliability and durability of motor fan ac outdoor.


1. STATOR CORE & ROTOR CORE


Stator core and rotor core for fan motor from air conditioner motor manufacturers are built up of thin punched laminations of Silicon Steel, its stator laminations and rotor laminations are made by high speed punch machine which is invested by our own, and this plays a vital role in quality of ac fan motor. Over 10 Million press strokes per day allows output of over 100 Tons finished stator / rotor core laminations each day.

stator-core-and-rotor-core-for-fan-motor for air cooler motor factory manufacturers suppliers
motor-manufacturing-processes coil winding for air cooler motor factory manufacturers suppliers

2. COIL WINDING


Professional in the outdoor condenser fan motor technology, team from fan motor manufacturers has extensive experience working with both copper and aluminium wire in various forms to provide coil winding solutions. Our broad customer base demands that we cannot only supply our standard range of ac outdoor fan motor but also have the capability to provide custom solutions to solve challenges others can't. Contact your fan motor suppliers now!

3. STATOR ASSEMBLY


Changpeng Motor Co., Ltd, china fan motor manufacturer, has specialized in outdoor fan motor for ac technology, stator assembling can be solved by our own professonal assembly technique. It meets the requirements of series production in ac fan motor, condenser fan motor, evaporator fan motor and other fan motor for ac unit. We develop and examine the entire process chain - from slot insulation to impregnating the stator and test.

motor-manufacturing-processes stator assembly for air cooler motor factory manufacturers suppliers
rotor-assembly-of-fan-motor from fan motor manufacturers suppliers factory

4. ROTOR ASSEMBLY


Rotor assembly is critical to outdoor fan motors air conditioners in a variety of industries and applications, like condenser, air conditioner, evaporator etc. CPMDJ, provides high quality silicon steel material to create professional and high quality rotor assembly for all AC fan motors. A rotor assembly of ac fan motor normally includes a cylindrically shaped shaft, a processed rotor iron core and a bearing.

5. FAN MOTOR SHAFT


Motor shaft is the main component in electric fan motor. The size of the shaft significantly affects the torque in fan motor. In addition to the need to mount the rotor and a variety of attachments, like bearing, the model of the motor shaft is based on the cooling concept selection of the electric device. CPMDJ, china ac outdoor fan motor manufacturer always offer you high quality shaft as air conditioner fan motor parts.

motor-shaft for air cooler motor factory manufacturers suppliers
fan motor test in fan motor manufacturer suppliers manufacturers - cpmdj

6. MOTOR ASSEMBLY & TESTING


Motor assembly includes assembling stator assembly, rotor assembly and end cover assembly with front cover. Testing of outdoor ac unit fan motor from air conditioner motor suppliers china, Changpeng Motor, cover the whole areas from stator insulation test, electronic integrated test bench for winding inserting, motor integrated test bench, motor performance test, noise test and appearance detection through to dynamometer for high performance fan  motor testing.


Outdoor unit fan motors meet most demanding quality requirements


As a fan motor factory & manufacturer, CPMDJ offers air cooler motors, air conditioner fan motors, indoor fan motors, outdoor fan motors, window AC fan motors, condenser fan motors, general purpose fan motors, fan coil motors, heat pump fan motors, resin Packing motors, EC fan motors, AC centrifugal fans and EC centrifugal fans. We quickly and reliably meet your custom requirements. You can always rely on the proven CPMDJ quality. High-quality technical production and processing plants, as well as the handling of qualified and experienced engineers and specialists ensure the highest standards of air cooler motors. To maintain quality standards, Changpeng Motor has introduced a quality management system.


Needless to say, our outdoor ac unit fan motor meets the requirements of international standards and state-of-the-art technology. This is how we ensure global use and durability of ac fan motors.

Be Agency of Fan Motor Factory


Why be our agency of fan motor?


As a prominent and leading fan motor suppliers & manufacturers china, Changpeng motor is willing to open worldwide market by agency. Be our agency, you can extend your business fast for your fan motors at the competitive price, stable qualtity and excellent after service. Contact your air conditioner fan motor factory to get outdoor fan motor air conditioner price now!


be agency of china fan motor manfuacturers factory suppliers- changpeng motor

Air Conditioner Motor Test & Applications


Routine testing and type tests for all AC fan motor

Process flow - routine, type, and system testing


The type test for asynchronous fan motors contains the following test steps:

  • Visual inspection

  • Resistance measurement of stator winding at ambient temperature

  • Insulation resistance measurement of stator winding and accessories

  • High-voltage check of stator winding

  • Rotational direction check

  • No-load check at partial voltage

  • Heating test under load

  • Measurement of load characteristic (25%, 50%, 75%, 100%, and 125% load)

  • Bearing heating check at no load and rated speed (only for friction-type bearing machines)

  • Check of fan motor accessories

  • Measurement of ripple voltage at rated voltage, rated frequency, and no-load speed

  • Creation of test report


In addition, the following optional tests are possible for asynchronous fan motors:


  • Measurement of no-load characteristic (recording of no-load current and no-load power at differing voltage)

  • Measurement of short circuit characteristic (recording of short circuit current and short circuit power at differing voltage)

  • Determination of polarization index of stator winding

  • Noise measurement (only at no load)

  • System/routine/type test of asynchronous fan motors



desert cooler fan motor test air cooler fan motor factory manufacturers suppliers


The routine test for asynchronous capacitor start fan motors contains the following test steps:

  • Visual inspection

  • Resistance measurement of stator winding at ambient temperature

  • Insulation resistance measurement of stator winding and accessories

  • High-voltage check of stator winding

  • Rotational direction check

  • No-load check at rated voltage

  • Short-circuit test at partial voltage

  • Check of fan motor accessories

  • Measurement of ripple voltage at rated voltage, rated frequency, and no-load speed

  • Creation of test report


In addition, the following optional tests are possible for asynchronous fan motors:


  • Measurement of no-load characteristic (recording of no-load current and no-load power at differing voltage)

  • Measurement of short circuit characteristic (recording of short circuit current and short circuit power at differing voltage)

  • Determination of polarization index of stator winding

  • Noise measurement (only at no load)

  • Type testing of asynchronous fan motors, with heat run


Outdoor Fan Motor Applications


CPMDJ offers you a complete line of HVAC motors, which is designed to operate in the harshest applications while reducing total cost of ownership. Our fan motors can be used in a variety of applications including air cooler fan motors, air conditioner fan motors, indoor fan motors, outdoor fan motors, window AC fan motors, condenser fan motors, general purpose fan motors, fan coil motors, heat pump fan motors , resin encapsulated motors and EC fan motors. We can also customize any fan motor version for specialized HVAC applications.


Air conditioner motor manufacturers & suppliers china - Changzhou Changpeng Motor Co., Ltd, is leading the fan motor factory & manufacturers whose motors can be applied in various kinds of air conditioners, commercial and residential.

window air conditioner fan motor wholesale price from china manufacturer

Service from Air Conditioiner Motor Supplier

The requirement for a suitable motor fan ac outdoor is important to prevent premature failure of the outdoor fan motor air conditioner, which can lead to high maintenance costs or worse - air conditioner downtime. CPMDJ, , always maintain high quality, low temperature rise, low vibration. Want to know outdoor fan motor air conditioner price? Send your inquiry today!


24/7 After Service Availability


As a fan motor factory & manufacturer & supplier for HVAC applications, Changpeng Motor Co., Ltd offers our customers further important plus points except focusing on fan motor quality. One of our focal points is the fast delivery of outdoor ac fan motor replacement - including special designs. Not many air conditioner fan motor suppliers & manufacturers are able to claim that they can supply brand-new fan motors from their own ranges but also the OEM replacement motor of other brands within just a few days.

Flexible machining from our fan motor manufacturer allows us to achieve exceptional response times. CPMDJ customers around the world appreciate our fast delivery service. Try us out! Team of experts from Changpeng Motor Co., Ltd will help you to find the right outdoor fan motor for ac for your HVAC application.


24-hour emergency hotline


CPMDJ provides a 24-hour hotline for our outdoor ac unit fan motor customers. You can use it to reach us around the clock in the case of a pressing operational disruption. With CPMDJ, you can depend on an outdoor fan motor factory & manufacturer & supplier who can supply outdoor condenser fan motor with various voltages and outputs even outside normal working hours - all around the world.
