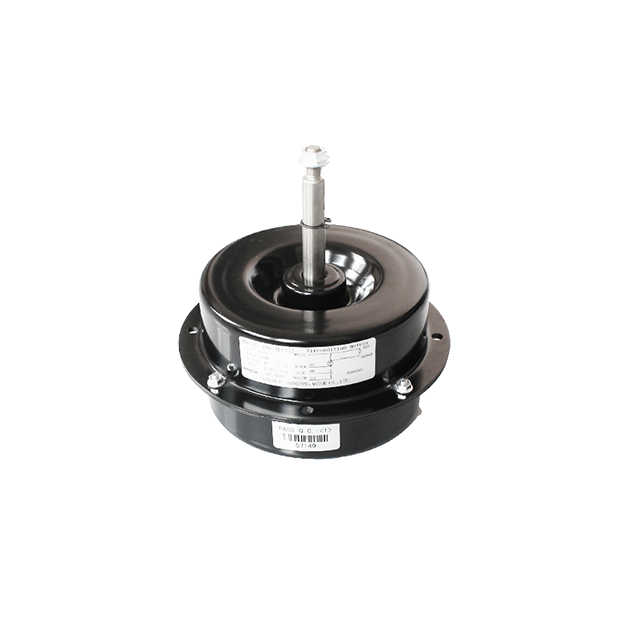

Split AC Indoor Unit Fan Motor

Indoor Fan Motor
Thermal Protection: Automatic
air conditioner motor Phase: 1
air conditioner fan motor Dia: 139mm
Maximum Ambient Temperature: 70° C
Insulation Class of room indoor unit motor: B
Frequency of window indoor fan motor: 50Hz/ 60Hz
Voltage of indoor fan motors for air conditioners: 208-240V
Permanent Split Capacitor (PSC) indoor fan motor for air conditioner

  • YDK120-100-4

  • CPMDJ

Availability:
Quantity:

Product Description

indoor fan motor manufacturers air conditioner motor factory hvac fan motor suppliers


Routine testing and type tests for Indoor fan motor

Process flow - routine, type, and system testing


The type test for indoor fan motors contains the following test steps:

  • Visual inspection

  • Resistance measurement of stator winding at ambient temperature

  • Insulation resistance measurement of stator winding and accessories

  • High-voltage check of stator winding

  • Rotational direction check

  • No-load check at partial voltage

  • Heating test under load

  • Measurement of load characteristic (25%, 50%, 75%, 100%, and 125% load)

  • Bearing heating check at no load and rated speed (only for friction-type bearing machines)

  • Check of fan motor accessories

  • Measurement of ripple voltage at rated voltage, rated frequency, and no-load speed

  • Creation of test report


In addition, the following optional tests are possible for indoor fan motor:


  • Measurement of no-load characteristic (recording of no-load current and no-load power at differing voltage)

  • Measurement of short circuit characteristic (recording of short circuit current and short circuit power at differing voltage)

  • Determination of polarization index of stator winding

  • Noise measurement (only at no load)

  • System/routine/type test of asynchronous fan motors


desert cooler fan motor test air cooler fan motor factory manufacturers suppliers


The routine test for asynchronous capacitor start indoor fan motors contains the following test steps:

  • Visual inspection

  • Resistance measurement of stator winding at ambient temperature

  • Insulation resistance measurement of stator winding and accessories

  • High-voltage check of stator winding

  • Rotational direction check

  • No-load check at rated voltage

  • Short-circuit test at partial voltage

  • Check of fan motor accessories

  • Measurement of ripple voltage at rated voltage, rated frequency, and no-load speed

  • Creation of test report


In addition, the following optional tests are possible for asynchronous indoor fan motors:


  • Measurement of no-load characteristic (recording of no-load current and no-load power at differing voltage)

  • Measurement of short circuit characteristic (recording of short circuit current and short circuit power at differing voltage)

  • Determination of polarization index of stator winding

  • Noise measurement (only at no load)

  • Type testing of asynchronous fan motors, with heat run


Indoor fan motors meet the most demanding quality requirements


As a fan motor factory & manufacturer, CPMDJ offers air cooler motors, air conditioner fan motors, indoor fan motors, outdoor fan motors, window AC fan motors, condenser fan motors, general purpose fan motors, fan coil motors, heat pump fan motors, resin Packing motors, EC fan motors, AC centrifugal fans and EC centrifugal fans. We quickly and reliably meet your custom requirements. You can always rely on the proven CPMDJ quality. High-quality technical production and processing plants, as well as the handling of qualified and experienced engineers and specialists ensure the highest standards of air cooler motors. To maintain quality standards, Changpeng Motor has introduced a quality management system.

`It goes without saying, our fan motor for air conditioner indoor unit meets the requirements of international standards and state-of-the-art technology. This is how we ensure global use and durability of ac fan motors.


Features of Air Conditioner Inner Fan Motor


1. Single phase indoor fan motor with steel housing, designed for cooling system, air conditioner unit etc., suit for hot weather environments.

2. High quality indoor motor with excellent insulation and heat transmission properties.

3. Nice appearance, high starting torque, low starting current, smooth turning, low temperature rise, low vibration, low noise and great overload performance.

4. Saving energy indoor fan motor for air conditioner, higher efficiency air conditioner motor replacement.

5. Long life Motor Fan Indoor AC which quipped with overheating protection, good Protection against Humidity.

6. Split AC Fan Motor models are with power of 25W, 30W, 45W, 60W, 80W,100W, 120W, 150W, 180W, 200W, 250W, 300W, 750W, 1100W & 1/5HP, 1/3HP, 1/2HP, 1/5HP, 3/4HP, 1HP.

7. Special Split AC indoor Blower Fan Motor can be designed according to customer's requirement.

8. Our air conditioning indoor  fan motor is wildly used in market of Saudi Arabia, UAE, Dubai, Bahrain, Iraq, Sudan, Iran, Kuwait, Jordan, Oman, Yemen, etc.


Indoor Fan Motor Structure


Indoor fan motor is not that complicated, referring to its structure. Indoor fan motor from CPMDJ consist of a stator and contain a rotating rotor inside, which is surrounded by pole-pieces. All our indoor fan motors comply with the appropriate International Standards as far as: air conditioner indoor unit motor output, indoor fan motor performance and dimensions of fan motor for indoor ACIndoor fan motor for air conditioner is the main component. As a well trusted fan motor factory, manufacturer & supplier, Changzhou Changpeng Motor Co., Ltd was initially founded in 2005 as an electric fan motor workshop. In 2009, CPMDJ became the fan motor manufacturer & factory to manufacture HVAC motors in China. Today, CPMDJ manufactures indoor fan motors, outdoor fan motors, fan coil motors, cooler motors, condenser fan motors and other HVAC motor products.


Air Conditioner Indoor Fan Motor Type


Model Voltage(V) Frequency(Hz) Output(W) Speed(RPM) Capacitor(μF)
YDK83-20-4 208-230 50/60 20 1300 2
YDK93-16-4 208-230 50/60 16 1300 1.5
YDK93-25-4 208-230 50/60 25 1300 2.5
YDK120-30-8 208-230 50/60 30 520 3
YDK120-50-8 208-230 50/60 50 520 4
YDK120-74-4A 220-240 50 74 1390/3 SPD 4
YDK120-75-6A 220-240 50 75 850 4
YDK120-90-4A 208-230 60 90 1550 4
YDK120-90-6 220 50 90 890/3 SPD 5
YDK120-90-6A2 220-240 50 90 850 5
YDK120-110-6A2 220-240 50 110 900 5
YDK120-150-6A 220-240 50 150 840/3 SPD 6
YDK120-185-4A 220-240 50 185 1250 5
YDK120-185-4A2 220-240 50 185 1050/3 SPD 10
YDK120-185-6A 220-240 60 185 950 5
YDK120-185-6A2 220-240 50 185 950 5
YDK139-100-10 208-230 50/60 100 480 6


Air Conditioner Motor Suppliers & Manufacturers


Indoor Fan Motor Manufacturer & Factory & Supplier


If you are seeking for indoor fan motor manufacturers & suppliers china, you have come to the right air conditioner indoor unit fan motor website. OR, if you want to know air conditioner indoor fan motor price, please just feel free to contact CPMDJ, the fan motor supplier china. Refer to split AC indoor fan motor type, our fan motors are asynchronous universal fan motors, on the other hand, is in a separate AC motor class because of the differences in design and operational characteristics. Changzhou Changpeng Motor Co., Ltd offers a robust catalog of indoor fan motors made by our fan motor factory & manufacturers that can be tailored to your exact specifications of hvac fan motors. Our fan motors for ac units are much popular in the market of Saudi Arabia, UAE, Dubai, Bahrain, Iraq, Sudan, Iran, Kuwait, Jordan, Oman, Yemen, etc.


CPMDJ CHANGZHOU CHANGPENG MOTOR CO.,LTD FAN MOTOR SUPPLIER FACTORY MANUFACTURERS SUPPLIERS -HVACFANMOTOR.COM


Indoor fan motor manufacturing processes


To offer such a wide range of  indoor unit fan motor, CPMDJ expent huge manual work, skill and years of experience. Furthermore, Changzhou Changpeng Motor Co., Ltd has dipping equipment and drying kilns with shaft heights up to 800 mm, an in-house welding shop for flexible production of special components and custom welding designs, VPI dipping equipment and experienced specialists who truly understand their processes. This is how CPMDJ guarantee you the high quality, reliability and durability of split ac indoor fan motor.


1. STATOR CORE & ROTOR CORE


Stator core and rotor core for fan motor from air conditioner motor manufacturers are built up of thin punched laminations of Silicon Steel, its stator laminations and rotor laminations are made by high speed punch machine which is invested by our own, and this plays a vital role in quality of ac fan motor. Over 10 Million press strokes per day allows output of over 100 Tons finished stator / rotor core laminations each day.

stator-core-and-rotor-core-for-fan-motor for air cooler motor factory manufacturers suppliers
motor-manufacturing-processes coil winding for air cooler motor factory manufacturers suppliers

2. COIL WINDING


Professional in the air conditioning  indoor fan motor technology, team from fan motor manufacturers has extensive experience working with both copper and aluminium wire in various forms to provide coil winding solutions. Our broad customer base demands that we cannot only supply our standard range of indoor fan motor but also have the capability to provide custom solutions to solve challenges others can't. Contact your fan motor suppliers now!

3. STATOR ASSEMBLY


Changpeng Motor Co., Ltd, china fan motor manufacturer, has specialized in indoor fan motor technology, stator assembling can be solved by our own professonal assembly technique. It meets the requirements of series production in ac fan motor, condenser fan motor, evaporator fan motor and other fan motor for ac unit. We develop and examine the entire process chain - from slot insulation to impregnating the stator and test.

motor-manufacturing-processes stator assembly for air cooler motor factory manufacturers suppliers
rotor-assembly-of-fan-motor from fan motor manufacturers suppliers factory

4. ROTOR ASSEMBLY


Rotor assembly is critical to indoor fan motors for air conditioners in a variety of industries and applications, like condenser, air conditioner, evaporator etc. CPMDJ, provides high quality silicon steel material to create professional and high quality rotor assembly for all AC fan motors. A rotor assembly of ac fan motor normally includes a cylindrically shaped shaft, a processed rotor iron core and a bearing.

5. FAN MOTOR SHAFT


Motor shaft is the main component in electric fan motor. The size of the shaft significantly affects the torque in fan motor. In addition to the need to mount the rotor and a variety of attachments, like bearing, the model of the motor shaft is based on the cooling concept selection of the electric device. CPMDJ, china ac indoor fan motor manufacturer always offer you high quality shaft as air conditioner fan motor parts.

motor-shaft for air cooler motor factory manufacturers suppliers
fan motor test in fan motor manufacturer suppliers manufacturers - cpmdj

6. MOTOR ASSEMBLY & TESTING


Motor assembly includes assembling stator assembly, rotor assembly and end cover assembly with front cover. Testing of indoor fan motor from air conditioner motor suppliers china, Changpeng Motor, cover the whole areas from stator insulation test, electronic integrated test bench for winding inserting, motor integrated test bench, motor performance test, noise test and appearance detection through to dynamometer for high performance fan  motor testing.


Be Agency of Fan Motor Factory


Why be our agency of fan motor?


As a prominent and leading fan motor suppliers & manufacturers china, Changpeng motor is willing to open worldwide market by agency. Be our agency, you can extend your business fast for your fan motors at the competitive price, stable qualtity and excellent after service. Contact your air conditioner fan motor factory to get air conditioner fan motor price now!


be agency of china fan motor manfuacturers factory suppliers- changpeng motor

Air Conditioner Motor Test & Applications


Indoor Fan Motor Applications


CPMDJ offers you a complete line of HVAC motors, which is designed to operate in the harshest applications while reducing total cost of ownership. Our fan motors can be used in a variety of applications including air cooler fan motors, air conditioner fan motors, indoor fan motors, outdoor fan motors, window AC fan motors, condenser fan motors, general purpose fan motors, fan coil motors, heat pump fan motors , resin encapsulated motors and EC fan motors. We can also customize any fan motor version for specialized HVAC applications.


Air conditioner motor suppliers china - Changzhou Changpeng Motor Co., Ltd, is leading the fan motor factory & manufacturers whose motors can be applied in various kinds of air conditioners, commercial and residential.

window air conditioner fan motor wholesale price from china manufacturer

Service from Air Conditioiner Motor Supplier


Customized Air Conditioner Indoor Fan Motor Solutions


At Changzhou Changpeng Motor Co. Ltd, always you can find a person who will response to your questions about the best indoor motor solution for your application - quickly and competently. High-quality technical production and processing systems and the handling of qualified, experienced engineers and skilled workers guarantee you the highest motor standards. Additionally, all of our indoor fan motor complies with current ISO standards.


24/7 After Service Availability


As a fan motor factory & manufacturer & supplier for HVAC applications, Changpeng Motor Co., Ltd offers our customers further important plus points except focusing on fan motor quality. One of our focal points is the fast delivery of indoor fan motor replacement - including special designs. Not many air conditioner fan motor suppliers & manufacturers are able to claim that they can supply brand-new fan motors from their own ranges but also the OEM replacement motor of other brands within just a few days.

Flexible machining from our fan motor manufacturer allows us to achieve exceptional response times. CPMDJ customers around the world appreciate our fast delivery service. Try us out! Team of experts from Changpeng Motor Co., Ltd will help you to find the right indoor fan motors for your HVAC application.


24-hour emergency hotline


CPMDJ provides a 24-hour hotline for our indoor fan motor customers. You can use it to reach us around the clock in the case of a pressing operational disruption. With CPMDJ, you can depend on an indoor fan motor factory & manufacturer & supplier who can supply indoor fan motors for air conditioners with various voltages and outputs even outside normal working hours - all around the world.


service from changpeng motor for air conditioner motor air cooler motor fan coil motor fan motor
