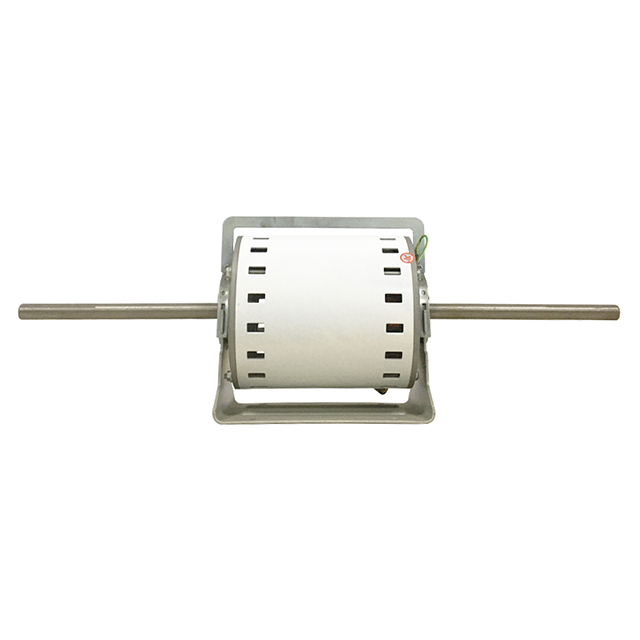

YSK139-250-4P AC FCU (FAN COIL UNIT) MOTOR

Fan Coil Motor Manufacturer Model #: YSK139-250-4P

Thermal Protection: Automatic
Coil fan motor Phase: 1
Fan coil motor replacement
Fan coil unit motor Dia: 120mm
Maximum Ambient Temperature: 70° C
Insulation Class of fan coil motors: B
Voltage of fancoil motor: 110-120V, 127V, 208-240V
Frequency of fan coil blower motor: 50Hz/ 60Hz
Permanent Split Capacitor (PSC) fan motor coil
Speeds of Fan coil motors: rpm as your request
  • YSK139-250-4P

  • CPMDJ

Availability:
Quantity:

Product Description

fan coil motor fan coil fan motor for fan coil units suppliers, manufacturers, factory - hvacfanmotor.com


Dual shaft coil fan motor, fan coil motor from CPMDJ, can be ventilated, totally enclosed or extruded shell body. This depends on your application and mounting arrangement.  Single shaft or double shaft fan coil unit motor is mostly mounted in a U shaped resilient cradle which sits onto a galvanized fan deck (metal tray). While some dual shaft coil fan motors are without metal tray. However, with fan deck makes the removal of fancoil motor fast and replacement of motor fan coil simply. Benefit from our perfect fan coil blower motor design and good raw materials quality, hvac fan motors from our fan motor manufacturers & factory, like indoor fan motors, outdoor fan motors, air cooler motors, fan coil motors, air conditioner motors always keep stable quality and nice performance with low temperature rise.



Fan Coil Motor Materials


1. NSK low noise high quality rolling bearing for coil fan motor.

2. Brass terminals plug-in.

3. Motor Fan Coil shaft: single or double shaft, nickel plating treatment.

4. Enclosure of Fan coil motors: electrophoretic coating treatment.

5. Coil fan motor wiring: 100% pure copper.



Fan coil motor is the main component for fan-coil air conditioning. The fan coil unit motor drives the fan blade of fan coil unit. FCU fan motor must be running well for the central air conditioner unit to do its job. This is important for moving hot air to the outside of the building, as well as blowing cool air through the ductwork and into the rooms. The ec fan motor for fan coil units from china manufacturer & ac electric fan coil motor for air conditioner from china manufacturer - CHANGZHOU CHANGPENG MOTOR CO.,LTD, is the leading asynchronous single phase capacitor start fan coil motors factory & supplier.


Advantages From Fan Coil Motor Manufacturers



Factory Fan Coil Motor Price

Our high-quality fan coil motor replacement is available at factory rates which saves you money and reduces your costs of production.


Fast Production Turn-around

We manufacture your coil fan motor fast to ensure that the production and distribution schedules of your business are not delayed or disrupted.


Free  Fan Motor Coil Sample

CPMDJ offers you a free FCU fan motor sample for testing and to confirm that we met your custom design requirements.


Low Minimum Order Quantity

All our clients are important to us and thus our MOQ is 50 pieces to accommodate large and small orders.


High Coil Fan Motor Quality

We are meticulous with our quality checks and manufacturing standards. Our goal is to offer you the best fan coil motor.


Worry-free Aftersale Services

The CPMDJ team is always on hand to help you through aftersale procedures such as order, shipment, and just-in-time delivery.



Models of Fan Coil Motors


Model Voltage Hz HP RPM(SPD) ROT OEM Model
YSK120-37-4A 220-240 50/60 1/20HP 1350/3 SPD CCW-LE KDE2E4711
YSK120-40-4A3 220-240 50/60 1/20HP 1100/3 SPD CW-LE
YSK120-50-4A2 220-240 50/60 1/15HP 1300/3 SPD CW-LE 7455GVA-A19U
YSK120-64-4A 220-240 50/60 1/12HP 1320/3 SPD CCW-LE 7455HVA-A75X
YSK120-90-4A5 220-240 50/60 1/8HP 1175/3 SPD CCW-LE 5KCP29DGE307S
YSK120-74-4A 220-240 50/60 1/10HP 1390/3 SPD CCW-LE 5KCP29DGE308BS
YSK120-185-4A 220-240 50/60 1/4HP 1625/3 SPD CCW-LE 5KCP29GG8071AS
YDK120-185-4A 220-240 50/60 1/4HP 1250RPM CCW-SE 5KCP394F1GEA017
YSK120-90-4A4 220-240 50/60 1/8HP 1300/3 SPD CW-LE 7455JVA-A18U
YSK120-120-4A 220-240 50/60 1/6HP 1300/4 SPD CW-LE 5KCP29FK5367T
YSK120-90-4A 220-240 50/60 1/8HP 1600/3 SPD CW-LE ACE-809-544-53
YDK120-110-6A2 220-240 50/60 1/6HP 900RPM CCW-SE 7456KTS-A12S
YDK120-90-4A 208-230 50/60 1/8HP 1550RPM CW-SE W.B.002852
YDK120-90-6A2 220-240 50/60 1/8HP 850RPM CW-SE PM310802
YDK120-185-6A 220-240 50/60 1/4HP 950RPM CW-SE PM310497
YDK120-185-6A2 220-240 50/60 1/4HP 950RPM CW-SE PM3104186
YDK120-75-6A 220-240 50/60 1/10HP 850RPM CCW-SE GFD FR B42
YDK120-185-4A2 220-240 50/60 1/4HP 1050/3 SPD CW-SE 5KCP29MK6641S
YDK120-150-6A 220-240 50/60 1/5HP 840/3 SPD CW-SE 5KCP29KK4571S
YDK120-90-6 220 50/60 1/10HP 890/3 SPD CW-SE 5KCP29GK6103S
YSK120-120-6A 220-240 50/60 1/6HP 1100/3SPD CCW/LE 5KCP29NGE160BS
YSK120-150-4A 220-240 50/60 1//5HP 1320/3 SPD CW-LE
YSK120-200-4A 115 50/60 1/4HP 1600/2 SPD CW-LE A2954KB010
YDK120/32-4-125 220-240 50/60 1/8HP 1550RPM
F48HXFMR-2790
YDK120-110-6A 220-240 50/60 1/7HP 900RPM CW-LE YDK-110S63520-01
YDK120-150-6A 220-240 50/60 1/5HP 925/3 SPD CE-SE 5KCP29KK4878AS
YSK140-120-6A2 220-230 50/60 1/6HP 1000/2SPD
GE 5KCP39DGM511T
YSK140-120-6A5 220-230 50/60 1/6HP 1095/3SPD
GE 5KCP39DGM004T
YSK140-120-6A7 220-230 50/60 1/6HP 1050/3SPD
EMERSON K55HXPKG-5158
YSK140-150-6A3 220-230 50/60 1//5HP 1050/3SPD
GE 5KCP39HGS635S
YSK140-150-6A2 220-230 50/60 1//5HP 1075/3SPD
GE 5KCP39FGM672S
YSK140-150-6A4 220-230 50/60 1//5HP 1115/3SPD
A.O.SMITH F48UO1A30
YSK140-150-6A17 220-230 50/60 1/5HP 115/3SPD
GE 5KCP39FGM4440
YSK140-245-6A2 220-230 50/60 1/3HP 1075/3SPD
GE 5KCP39HGM307AT
YSK140-120-4A3 220-230 50/60 1/6HP 1050/3SPD
A.O.SMITH F48CS6MA14
YSK140-150-4A 220-230 50/60 1/5HP 1075/3SPD
PM410538
YSK140-185-4A7 220-230 50/60 1/4HP 1100/3SPD
PM4104167
YSK140-245-4A3 220-230 50/60 1/3HP 1100/3SPD
EMERSON K55HXSPK-3135
YSK140-375-4A5 220-230 50/60 1/2HP 1200/3SPD
D772
YSK140-550-4A1 220-230 50/60 3/4HP 1200/3SPD
D778


Fan Coil Unit Motor Structure


Fan coil unit motor is not very complicated in construction. fan motor for fan coil unit from CPMDJ consists of a stator and contain a rotating rotor inside, which is surrounded by pole-pieces. All our central air conditioning fan coil motor and fan coil unit motor replacement comply with the appropriate International Standards as far as: coil fan motor output, fan coil motor performance and motor coil fan dimensions.


Features of Fan Motor for Fan Coil Units


1. Single-phase fan coil motors with steel housing, designed for cooling system, air conditioner unit etc., suit for hot weather environments.

2. High quality coil fan motor with excellent insulation and heat transmission properties.

3. Nice appearance, high starting torque, low starting current, smooth turning, low temperature rise, low vibration, low noise and great overload performance.

4. Saving energy fan coil unit motors, higher efficiency coil fan motor.

5. Long life fan coil motor replacement which quipped with overheating protection, good Protection against Humidity.

6. Fan coil unit motor replacement are with power of 25W, 30W, 45W, 60W, 80W,100W, 120W, 150W, 180W, 200W, 250W, 300W, 750W, 1100W & 1/5HP, 1/3HP, 1/2HP, 1/5HP, 3/4HP, 1HP.

7. Special fan coil motors can be designed according to customer's requirement.


Fan Coil Motor Suppliers & Manufacturers


Fan Coil Motor Factory


ac electric fan coil motor for air conditioner manufacturers & suppliers & factory, bldc motor for fan-coil air conditioning manufacturers & suppliers & factory, Changzhou Changpeng Motor Co.,Ltd aims to produce fan coil motors that can accommodate each of our customer's different needs. Aside from being a leading fan motor manufacturer & supplier, we also produce various fan coil unit motors that are ideal for HVAC industries. We have pre-designed fancoil motor that you can choose from but if you have special requirements for your fan coil blower motor, we can customize fan coil motor for you. We can design them to match your branding and help you boost your sales.


We assign teams of design, technician and manufacturing experts to each of your order. They will work with you to implement any coil fan motor design ideas and needs you have and bring them to reality. We additionally offer free samples for you to test and approve before we begin manufacturing your personalized fan coil blower motor.


CPMDJ CHANGZHOU CHANGPENG MOTOR CO.,LTD FAN MOTOR SUPPLIER FACTORY MANUFACTURERS SUPPLIERS -HVACFANMOTOR.COM


Fan coil motor manufacturing processes


To offer such a wide range of fan coil unit motor, central air conditioning motor, FCU fan motor, CPMDJ expent huge manual work, skill and years of experience. Furthermore, Changzhou Changpeng Motor Co., Ltd has dipping equipment and drying kilns with shaft heights up to 800 mm, an in-house welding shop for flexible production of special components and custom welding designs, VPI dipping equipment and experienced specialists who truly understand their processes. This is how CPMDJ guarantee you the high quality, reliability and durability of coil fan motor.


1. STATOR CORE & ROTOR CORE


Stator core and rotor core for fan motor from fan coil motor manufacturers are built up of thin punched laminations of Silicon Steel, its stator laminations and rotor laminations are made by high speed punch machine which is invested by our own, and this plays a vital role in quality of ac fan motor. Over 10 Million press strokes per day allows output of over 100 Tons finished stator / rotor core laminations each day.

stator-core-and-rotor-core-for-fan-motor for air cooler motor factory manufacturers suppliers
motor-manufacturing-processes coil winding for air cooler motor factory manufacturers suppliers

2. COIL WINDING


Professional in the coil fan motor technology, team from fan motor for fan coil units manufacturers has extensive experience working with both copper and aluminium wire in various forms to provide coil winding solutions. Our broad customer base demands that we cannot only supply our standard range of fan coil unit motor but also have the capability to provide custom solutions to solve challenges others can't. Contact your fan motor manufacturers now!

3. STATOR ASSEMBLY


Changpeng Motor Co., Ltd, china motor for fan-coil air conditioning supplier, has specialized in fancoil motor technology, stator assembling can be solved by our own professonal assembly technique. It meets the requirements of series production in ac fan motor, air conditioner motor, condenser fan motor, evaporator fan motor and other fan motor for ac unit. We develop and examine the entire process chain - from slot insulation to impregnating the stator and test.

motor-manufacturing-processes stator assembly for air cooler motor factory manufacturers suppliers
rotor-assembly-of-fan-motor from fan motor manufacturers suppliers factory

4. ROTOR ASSEMBLY


Rotor assembly is critical to fan motors for fan coil units in a variety of industries and applications, like condenser, air conditioner, evaporator etc. CPMDJ, fan motor for fan coil units supplier provides high quality silicon steel material to create professional and high quality rotor assembly for all AC fan motors. A rotor assembly of ac fan motor normally includes a cylindrically shaped shaft, a processed rotor iron core and a bearing.

5. FAN MOTOR SHAFT


Motor shaft is the main component in electric fan motor. The size of the shaft significantly affects the torque in fan motor. In addition to the need to mount the rotor and a variety of attachments, like bearing, the model of the motor shaft is based on the cooling concept selection of the electric device. CPMDJ, motor for fan-coil air conditioning manufacturers & suppliers always offer you high quality shaft as air conditioner fan motor parts.

motor-shaft for air cooler motor factory manufacturers suppliers
fan motor test in fan motor manufacturer suppliers manufacturers - cpmdj

6. MOTOR ASSEMBLY & TESTING


Motor assembly includes assembling stator assembly, rotor assembly and end cover assembly with front cover. Testing of fan coil motor from fan motor for fan coil units from china manufacturer, Changpeng Motor, cover the whole areas from stator insulation test, electronic integrated test bench for winding inserting, motor integrated test bench, motor performance test, noise test and appearance detection through to dynamometer for high performance fan  motor testing.



Fan coil motors meet the most demanding quality requirements


As a fan coil motor factory & manufacturer, CPMDJ offers air cooler motors, air conditioner fan motors, indoor fan motors, outdoor fan motors, window AC fan motors, condenser fan motors, general purpose fan motors, fan coil motors, heat pump fan motors, resin Packing motors, EC fan motors, AC centrifugal fans and EC centrifugal fans. We quickly and reliably meet your custom requirements. You can always rely on the proven CPMDJ quality. High-quality technical production and processing plants, as well as the handling of qualified and experienced engineers and specialists ensure the highest standards of air cooler motors. To maintain quality standards, Changpeng Motor has introduced a quality management system.


Needless to say, our fan coil unit motor meets the requirements of international standards and state-of-the-art technology. This is how we ensure global use and durability of ac fan motors.


Be Agency of Fan Motor Factory


Why be our agency of fan motor?


As a prominent and leading fan coil motor suppliers & manufacturers china, Changpeng motor is willing to open worldwide market by agency. Be our agency, you can extend your business fast for your fan motors at the competitive price, stable qualtity and excellent after service. Contact your fan coil motor factory to get fan coil motor price now!


be agency of china fan motor manfuacturers factory suppliers- changpeng motor


Fan Coil Motor Test & Applications

Routine testing and type tests for all AC fan motor


Process flow - routine, type, and system testing


The type test for asynchronous fan motors contains the following test steps:

  • Visual inspection

  • Resistance measurement of stator winding at ambient temperature

  • Insulation resistance measurement of stator winding and accessories

  • High-voltage check of stator winding

  • Rotational direction check

  • No-load check at partial voltage

  • Heating test under load

  • Measurement of load characteristic (25%, 50%, 75%, 100%, and 125% load)

  • Bearing heating check at no load and rated speed (only for friction-type bearing machines)

  • Check of fan motor accessories

  • Measurement of ripple voltage at rated voltage, rated frequency, and no-load speed

  • Creation of test report


In addition, the following optional tests are possible for asynchronous fan motors:


  • Measurement of no-load characteristic (recording of no-load current and no-load power at differing voltage)

  • Measurement of short circuit characteristic (recording of short circuit current and short circuit power at differing voltage)

  • Determination of polarization index of stator winding

  • Noise measurement (only at no load)

  • System/routine/type test of asynchronous fan motors



desert cooler fan motor test air cooler fan motor factory manufacturers suppliers


The routine test for asynchronous capacitor start fan motors contains the following test steps:

  • Visual inspection

  • Resistance measurement of stator winding at ambient temperature

  • Insulation resistance measurement of stator winding and accessories

  • High-voltage check of stator winding

  • Rotational direction check

  • No-load check at rated voltage

  • Short-circuit test at partial voltage

  • Check of fan motor accessories

  • Measurement of ripple voltage at rated voltage, rated frequency, and no-load speed

  • Creation of test report


In addition, the following optional tests are possible for asynchronous fan motors:


  • Measurement of no-load characteristic (recording of no-load current and no-load power at differing voltage)

  • Measurement of short circuit characteristic (recording of short circuit current and short circuit power at differing voltage)

  • Determination of polarization index of stator winding

  • Noise measurement (only at no load)

  • Type testing of asynchronous fan motors, with heat run



Fan Coil Unit Motor Applications


CPMDJ offers you a complete line of HVAC motors, which is designed to operate in the harshest applications while reducing total cost of ownership. Our fan motors can be used in a variety of applications including air cooler fan motors, air conditioner fan motors, indoor fan motors, outdoor fan motors, window AC fan motors, condenser fan motors, general purpose fan motors, fan coil motors, heat pump fan motors , resin encapsulated motors and EC fan motors. We can also customize any fan motor version for specialized HVAC applications.


Fan coil motor factory & manufacturers & suppliers in china - Changzhou Changpeng Motor Co., Ltd, is leading the fan motor factory & manufacturers whose fan coil motors can be applied in various kinds of central air conditioners,fan coil units, commercial and residential.

bldc motor for fan-coil air conditioning ac electric fan coil motor for air conditioner suppliers manufacturers factory

Service from Air Conditioiner Motor Supplier


Customized Coil Fan Motor Solutions



At Changzhou Changpeng Motor Co. Ltd, always you can find a person who will response to your questions about the best fan coil blower motor solution for your application - quickly and competently. High-quality technical production and processing systems and the handling of qualified, experienced engineers and skilled workers guarantee you the highest motor standards. Additionally, all of our fan motors for air conditioners complies with current ISO standards.


24/7 After Service Availability

As a motor for fan-coil air conditioning suppliers & factory & manufacturers, CPMDJ offers our customers further important plus points except focusing on fan motor quality. One of our focal points is the fast delivery of fan coil motor replacement - including special designs. Not many fan motor suppliers & manufacturers are able to claim that they can supply brand-new fan motors from their own ranges but also the OEM replacement motor of other brands within just a few days.

Flexible machining from our fan coil motor manufacturer & supplier & factory allows us to achieve exceptional response times. CPMDJ customers around the world appreciate our fast delivery service. Try us out! Team of experts from Changpeng Motor Co., Ltd will help you to find the right fan coil unit motors at reasonable fan coil motor price for your HVAC application.


24-hour emergency hotline


CPMDJ provides a 24-hour hotline for our coil fan motor customers. You can use it to reach us around the clock in the case of a pressing operational disruption. With CPMDJ, you can depend on an fan coil motor factory & manufacturer & supplier who can supply fan coil unit motors for air conditioners with various voltages and outputs even outside normal working hours - all around the world.

service from changpeng motor for air conditioner motor air cooler motor fan coil motor fan motor
