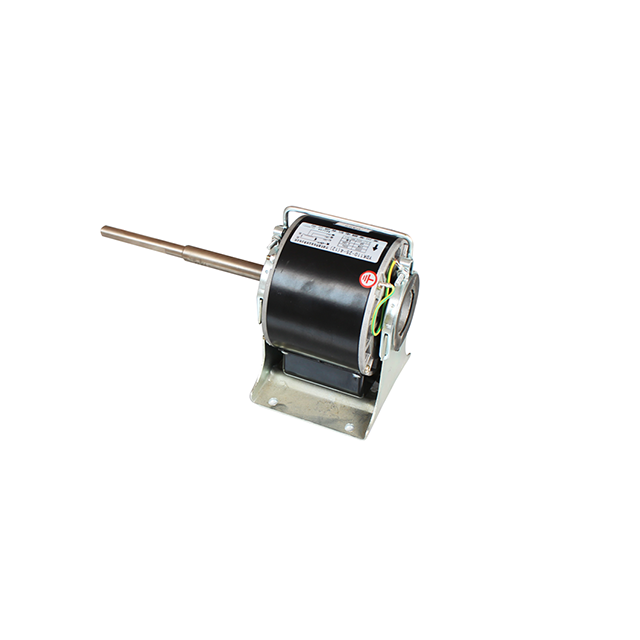

Central Air-conditioning Fan Coil Motor

Fan Coil Motor Manufacturer Model #: YDK110-25-4

Thermal Protection: Automatic
Coil fan motor Phase: 1
Fan coil motor replacement
Fan coil unit motor Dia: 110mm
Maximum Ambient Temperature: 70° C
Insulation Class of fan coil motors: B
Voltage of fancoil motor: 110-120V, 127V, 208-240V
Frequency of fan coil blower motor: 50Hz/ 60Hz
Permanent Split Capacitor (PSC) fan motor coil
Speeds of Fan coil motors: rpm as your request
  • YDK110-25-4

  • CPMDJ

Availability:
Quantity:

Product Description

fan coil motor fan coil fan motor for fan coil units suppliers, manufacturers, factory - hvacfanmotor.com


Fan coil motor from Changzhou Changpeng Motor, Co., Ltd is made mostly in 2, 4 , 6 and 8 poles. And output power of our fan coil unit motor ranges from 5 to 1150 watts.  Coil fan motor is based on a range of technologies which guarantee a high level of reliability for fan convector and warm air heating and comfort cooling applications such as fan coil unit, door curtains, fan decks within a fan convector unit, Fan convector, warm air heater, comfort cooling, AHU (air handling units), warm air door curtains, air conditioning and other HVAC equipment. Furthermore, designs are available for motor fan coil of your customize requirments and needs. As ac & the ec fan motor for fan coil units suppliers, our fan coil unit motor replacement are of stable high quality and reasonable fan coil motor price.





Models of Fan Coil Motors


Model Voltage Hz HP RPM(SPD) CAP
(MDF/VAC)
YSK95-40-4 208-230 50/60 40W 950/750/600 3
YSK95-60-4 208-230 50/60 60W 1100/950/750 3.5
YSK110-16-4 208-230 50/60 16W 750/600/480 1.0
YSK110-20-4 208-230 50/60 20W 830/660/520 2.0
YSK110-25-4 208-230 50/60 25W 850/680/540 2.5
YSK110-30-4 208-230 50/60 30W 880/700/560 2.5
YSK110-35-4 208-230 50/60 35W 900/720/580 3.0
YSK110-40-4 208-230 50/60 40W 950/750/600 3.0
YSK110-45-4 208-230 50/60 45W 1000/800/650 3.0
YSK110-50-4 208-230 50/60 50W 1050/840/670 3.5
YSK110-60-4 208-230 50/60 60W 1100/950/750 3.5
YSK110-80-4 208-230 50/60 80W 1200/900/700 4.0
YSK110-10-6 208-230 50/60 10W 730/580/460 1.0
YSK110-12-6 208-230 50/60 12W 750/600/480 1.2
YSK110-16-6 208-230 50/60 16W 780/620/500 1.5
YSK110-20-6 208-230 50/60 20W 830/660/520 2.0
YSK110-25-6 208-230 50/60 25W 850/680/540 2.0
YSK110-30-6 208-230 50/60 30W 870/700/560 2.5
YSK110-40-6 208-230 50/60 40W 890/720/580 2.5
YSK110-50-6 208-230 50/60 50W 900/750/600 3.0
YSK120-74-4 208-230 50/60 74W 1150/900/700 4
YSK139-250-4 208-230 50/60 250W 1200/950/750 10
YSK139-350-4 208-230 50/60 350W 1300/1000/850 12
YSK139-750-6 208-230 50/60 750W 900/720/580 16


FCU fan motor is the main component for fan-coil air conditioning. The coil fan motor drives the fan blade of fan coil unit. Fan coil unit motor must be running well for the central air conditioner unit to do its job. This is important for moving hot air to the outside of the building, as well as blowing cool air through the ductwork and into the rooms. The ec fan motor for fan coil units from china manufacturerac electric fan coil motor for air conditioner from china manufacturer - CHANGZHOU CHANGPENG MOTOR CO.,LTD, is the leading asynchronous single phase capacitor start fan coil motors factory & supplier


Features of Fan Motor for Fan Coil Units


1. Single-phase fan coil motors with steel housing, designed for cooling system, air conditioner unit etc., suit for hot weather environments.

2. High quality coil fan motor with excellent insulation and heat transmission properties.

3. Nice appearance, high starting torque, low starting current, smooth turning, low temperature rise, low vibration, low noise and great overload performance.

4. Saving energy fan coil unit motors, higher efficiency coil fan motor.

5. Long life fan coil motor replacement which quipped with overheating protection, good Protection against Humidity.

6. Fan coil unit motor replacement are with power of 25W, 30W, 45W, 60W, 80W,100W, 120W, 150W, 180W, 200W, 250W, 300W, 750W, 1100W & 1/5HP, 1/3HP, 1/2HP, 1/5HP, 3/4HP, 1HP.

7. Special fan coil motors can be designed according to customer's requirement.



Advantages From Your Fan Coil Motor Manufacturers


Factory Fan Coil Motor Price

Our high-quality fan coil motor replacement is available at factory rates which saves you money and reduces your costs of production.


Fast Production Turn-around

We manufacture your coil fan motor fast to ensure that the production and distribution schedules of your business are not delayed or disrupted.


Free  Fan Motor Coil Sample

CPMDJ offers you a free FCU fan motor sample for testing and to confirm that we met your custom design requirements.


Low Minimum Order Quantity

All our clients are important to us and thus our MOQ is 50 pieces to accommodate large and small orders.


High Coil Fan Motor Quality

We are meticulous with our quality checks and manufacturing standards. Our goal is to offer you the best fan coil motor.


Worry-free Aftersale Services

The CPMDJ team is always on hand to help you through aftersale procedures such as order, shipment, and just-in-time delivery.



Fan Coil Unit Motor Structure


Fan coil unit motor is not very complicated in construction. fan motor for fan coil unit from CPMDJ consists of a stator and contain a rotating rotor inside, which is surrounded by pole-pieces. All our central air conditioning fan coil motor and fan coil unit motor replacement comply with the appropriate International Standards as far as: coil fan motor output, fan coil motor performance and motor coil fan dimensions.


Fan Coil Motor Suppliers & Manufacturers


Fan Coil Motor Factory


ac electric fan coil motor for air conditioner manufacturers & suppliers & factory, bldc motor for fan-coil air conditioning manufacturers & suppliers & factory, Changzhou Changpeng Motor Co.,Ltd aims to produce fan coil motors that can accommodate each of our customer's different needs. Aside from being a leading fan motor manufacturer & supplier, we also produce various fan coil unit motors that are ideal for HVAC industries. We have pre-designed fancoil motor that you can choose from but if you have special requirements for your fan coil blower motor, we can customize fan coil motor for you. We can design them to match your branding and help you boost your sales.


We assign teams of design, technician and manufacturing experts to each of your order. They will work with you to implement any coil fan motor design ideas and needs you have and bring them to reality. We additionally offer free samples for you to test and approve before we begin manufacturing your personalized fan coil blower motor.


CPMDJ performs all coil fan motor manufacturing processes in-house and our team of staff is well-versed in each motor manufacturing step. This makes it possible for us to customize your motor for fan-coil air conditioning to meet your packaging needs. Whether you need a special type, size, color, an unusual rpm, or a special performance, we have what it takes to make it happen.


CPMDJ CHANGZHOU CHANGPENG MOTOR CO.,LTD FAN MOTOR SUPPLIER FACTORY MANUFACTURERS SUPPLIERS -HVACFANMOTOR.COM



Fan coil motor manufacturing processes


To offer such a wide range of fan coil unit motor, central air conditioning motor, FCU fan motor, CPMDJ expent huge manual work, skill and years of experience. Furthermore, Changzhou Changpeng Motor Co., Ltd has dipping equipment and drying kilns with shaft heights up to 800 mm, an in-house welding shop for flexible production of special components and custom welding designs, VPI dipping equipment and experienced specialists who truly understand their processes. This is how CPMDJ guarantee you the high quality, reliability and durability of coil fan motor.


1. STATOR CORE & ROTOR CORE


Stator core and rotor core for fan motor from fan coil motor manufacturers are built up of thin punched laminations of Silicon Steel, its stator laminations and rotor laminations are made by high speed punch machine which is invested by our own, and this plays a vital role in quality of ac fan motor. Over 10 Million press strokes per day allows output of over 100 Tons finished stator / rotor core laminations each day.

stator-core-and-rotor-core-for-fan-motor for air cooler motor factory manufacturers suppliers
motor-manufacturing-processes coil winding for air cooler motor factory manufacturers suppliers

2. COIL WINDING


Professional in the coil fan motor technology, team from fan motor for fan coil units manufacturers has extensive experience working with both copper and aluminium wire in various forms to provide coil winding solutions. Our broad customer base demands that we cannot only supply our standard range of fan coil unit motor but also have the capability to provide custom solutions to solve challenges others can't. Contact your fan motor manufacturers now!

3. STATOR ASSEMBLY


Changpeng Motor Co., Ltd, china motor for fan-coil air conditioning supplier, has specialized in fancoil motor technology, stator assembling can be solved by our own professonal assembly technique. It meets the requirements of series production in ac fan motor, air conditioner motor, condenser fan motor, evaporator fan motor and other fan motor for ac unit. We develop and examine the entire process chain - from slot insulation to impregnating the stator and test.

motor-manufacturing-processes stator assembly for air cooler motor factory manufacturers suppliers
rotor-assembly-of-fan-motor from fan motor manufacturers suppliers factory

4. ROTOR ASSEMBLY


Rotor assembly is critical to fan motors for fan coil units in a variety of industries and applications, like condenser, air conditioner, evaporator etc. CPMDJ, fan motor for fan coil units supplier provides high quality silicon steel material to create professional and high quality rotor assembly for all AC fan motors. A rotor assembly of ac fan motor normally includes a cylindrically shaped shaft, a processed rotor iron core and a bearing.

5. FAN MOTOR SHAFT


Motor shaft is the main component in electric fan motor. The size of the shaft significantly affects the torque in fan motor. In addition to the need to mount the rotor and a variety of attachments, like bearing, the model of the motor shaft is based on the cooling concept selection of the electric device. CPMDJ, motor for fan-coil air conditioning manufacturers & suppliers always offer you high quality shaft as air conditioner fan motor parts.

motor-shaft for air cooler motor factory manufacturers suppliers
fan motor test in fan motor manufacturer suppliers manufacturers - cpmdj

6. MOTOR ASSEMBLY & TESTING


Motor assembly includes assembling stator assembly, rotor assembly and end cover assembly with front cover. Testing of fan coil motor from fan motor for fan coil units from china manufacturer, Changpeng Motor, cover the whole areas from stator insulation test, electronic integrated test bench for winding inserting, motor integrated test bench, motor performance test, noise test and appearance detection through to dynamometer for high performance fan  motor testing.



Fan coil motors meet the most demanding quality requirements


As a fan coil motor factory & manufacturer, CPMDJ offers air cooler motors, air conditioner fan motors, indoor fan motors, outdoor fan motors, window AC fan motors, condenser fan motors, general purpose fan motors, fan coil motors, heat pump fan motors, resin Packing motors, EC fan motors, AC centrifugal fans and EC centrifugal fans. We quickly and reliably meet your custom requirements. You can always rely on the proven CPMDJ quality. High-quality technical production and processing plants, as well as the handling of qualified and experienced engineers and specialists ensure the highest standards of air cooler motors. To maintain quality standards, Changpeng Motor has introduced a quality management system.


Needless to say, our fan coil unit motor meets the requirements of international standards and state-of-the-art technology. This is how we ensure global use and durability of ac fan motors.


Be Agency of Fan Motor Factory


Why be our agency of fan motor?


As a prominent and leading fan coil motor suppliers & manufacturers china, Changpeng motor is willing to open worldwide market by agency. Be our agency, you can extend your business fast for your fan motors at the competitive price, stable qualtity and excellent after service. Contact your fan coil motor factory to get fan coil motor price now!


be agency of china fan motor manfuacturers factory suppliers- changpeng motor


Fan Coil Motor Test & Applications

Routine testing and type tests for all AC fan motor


Process flow - routine, type, and system testing


The type test for asynchronous fan motors contains the following test steps:

  • Visual inspection

  • Resistance measurement of stator winding at ambient temperature

  • Insulation resistance measurement of stator winding and accessories

  • High-voltage check of stator winding

  • Rotational direction check

  • No-load check at partial voltage

  • Heating test under load

  • Measurement of load characteristic (25%, 50%, 75%, 100%, and 125% load)

  • Bearing heating check at no load and rated speed (only for friction-type bearing machines)

  • Check of fan motor accessories

  • Measurement of ripple voltage at rated voltage, rated frequency, and no-load speed

  • Creation of test report


In addition, the following optional tests are possible for asynchronous fan motors:


  • Measurement of no-load characteristic (recording of no-load current and no-load power at differing voltage)

  • Measurement of short circuit characteristic (recording of short circuit current and short circuit power at differing voltage)

  • Determination of polarization index of stator winding

  • Noise measurement (only at no load)

  • System/routine/type test of asynchronous fan motors



desert cooler fan motor test air cooler fan motor factory manufacturers suppliers


The routine test for asynchronous capacitor start fan motors contains the following test steps:

  • Visual inspection

  • Resistance measurement of stator winding at ambient temperature

  • Insulation resistance measurement of stator winding and accessories

  • High-voltage check of stator winding

  • Rotational direction check

  • No-load check at rated voltage

  • Short-circuit test at partial voltage

  • Check of fan motor accessories

  • Measurement of ripple voltage at rated voltage, rated frequency, and no-load speed

  • Creation of test report


In addition, the following optional tests are possible for asynchronous fan motors:


  • Measurement of no-load characteristic (recording of no-load current and no-load power at differing voltage)

  • Measurement of short circuit characteristic (recording of short circuit current and short circuit power at differing voltage)

  • Determination of polarization index of stator winding

  • Noise measurement (only at no load)

  • Type testing of asynchronous fan motors, with heat run



Fan Coil Unit Motor Applications


CPMDJ offers you a complete line of HVAC motors, which is designed to operate in the harshest applications while reducing total cost of ownership. Our fan motors can be used in a variety of applications including air cooler fan motors, air conditioner fan motors, indoor fan motors, outdoor fan motors, window AC fan motors, condenser fan motors, general purpose fan motors, fan coil motors, heat pump fan motors , resin encapsulated motors and EC fan motors. We can also customize any fan motor version for specialized HVAC applications.


Fan coil motor factory & manufacturers & suppliers in china - Changzhou Changpeng Motor Co., Ltd, is leading the fan motor factory & manufacturers whose fan coil motors can be applied in various kinds of central air conditioners,fan coil units, commercial and residential.

bldc motor for fan-coil air conditioning ac electric fan coil motor for air conditioner suppliers manufacturers factory

Service from Air Conditioiner Motor Supplier


Customized Coil Fan Motor Solutions



At Changzhou Changpeng Motor Co. Ltd, always you can find a person who will response to your questions about the best fan coil blower motor solution for your application - quickly and competently. High-quality technical production and processing systems and the handling of qualified, experienced engineers and skilled workers guarantee you the highest motor standards. Additionally, all of our fan motors for air conditioners complies with current ISO standards.


24/7 After Service Availability

As a motor for fan-coil air conditioning suppliers & factory & manufacturers, CPMDJ offers our customers further important plus points except focusing on fan motor quality. One of our focal points is the fast delivery of fan coil motor replacement - including special designs. Not many fan motor suppliers & manufacturers are able to claim that they can supply brand-new fan motors from their own ranges but also the OEM replacement motor of other brands within just a few days.

Flexible machining from our fan coil motor manufacturer & supplier & factory allows us to achieve exceptional response times. CPMDJ customers around the world appreciate our fast delivery service. Try us out! Team of experts from Changpeng Motor Co., Ltd will help you to find the right fan coil unit motors at reasonable fan coil motor price for your HVAC application.


24-hour emergency hotline


CPMDJ provides a 24-hour hotline for our coil fan motor customers. You can use it to reach us around the clock in the case of a pressing operational disruption. With CPMDJ, you can depend on an fan coil motor factory & manufacturer & supplier who can supply fan coil unit motors for air conditioners with various voltages and outputs even outside normal working hours - all around the world.

service from changpeng motor for air conditioner motor air cooler motor fan coil motor fan motor
